ACHIEVA, Grand Am & Skylark

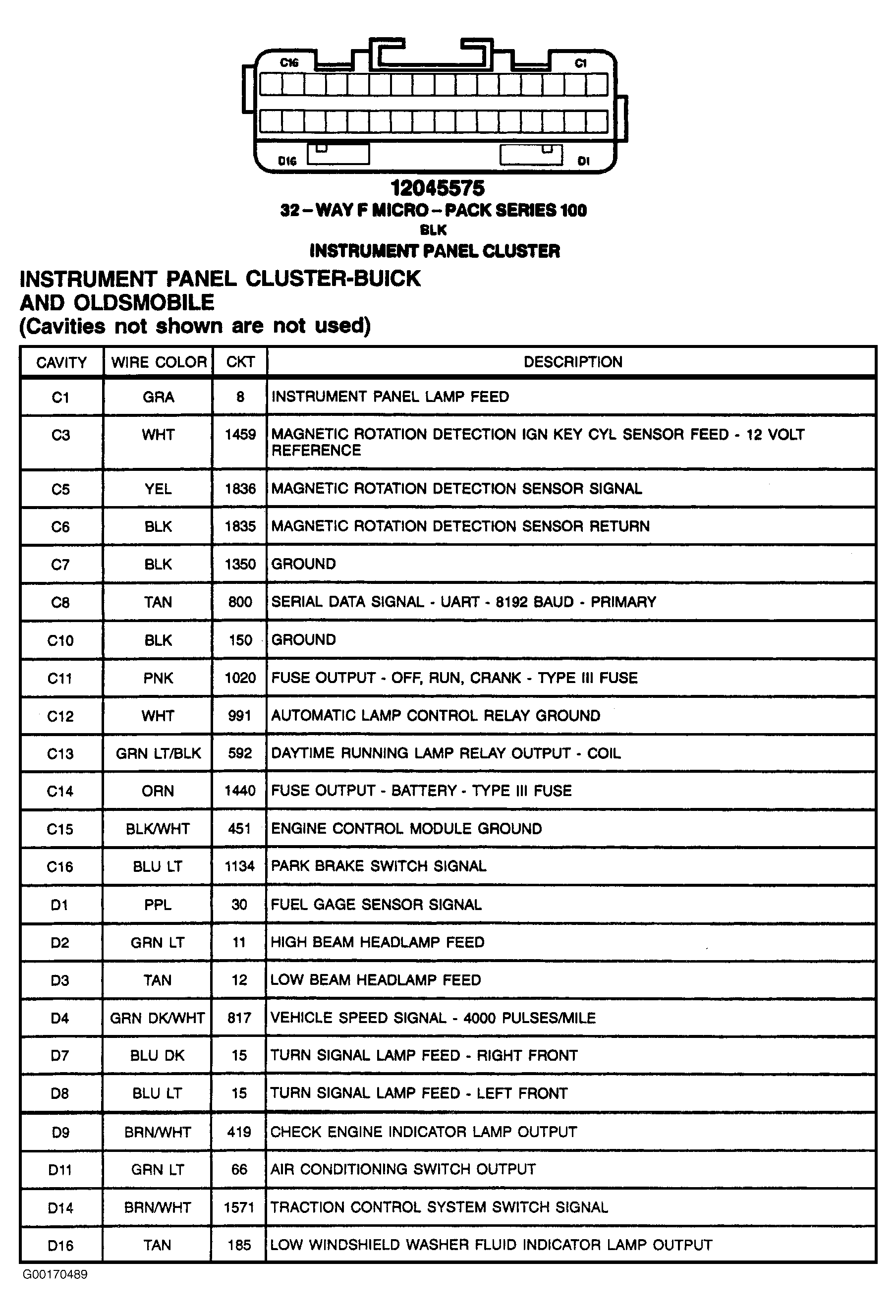

Fig 1: Instrument Panel Cluster (Achieva & Skylark) - 32-Pin Connector (Black) - (1 Of 2)
G00170489Courtesy of GENERAL MOTORS CORP.

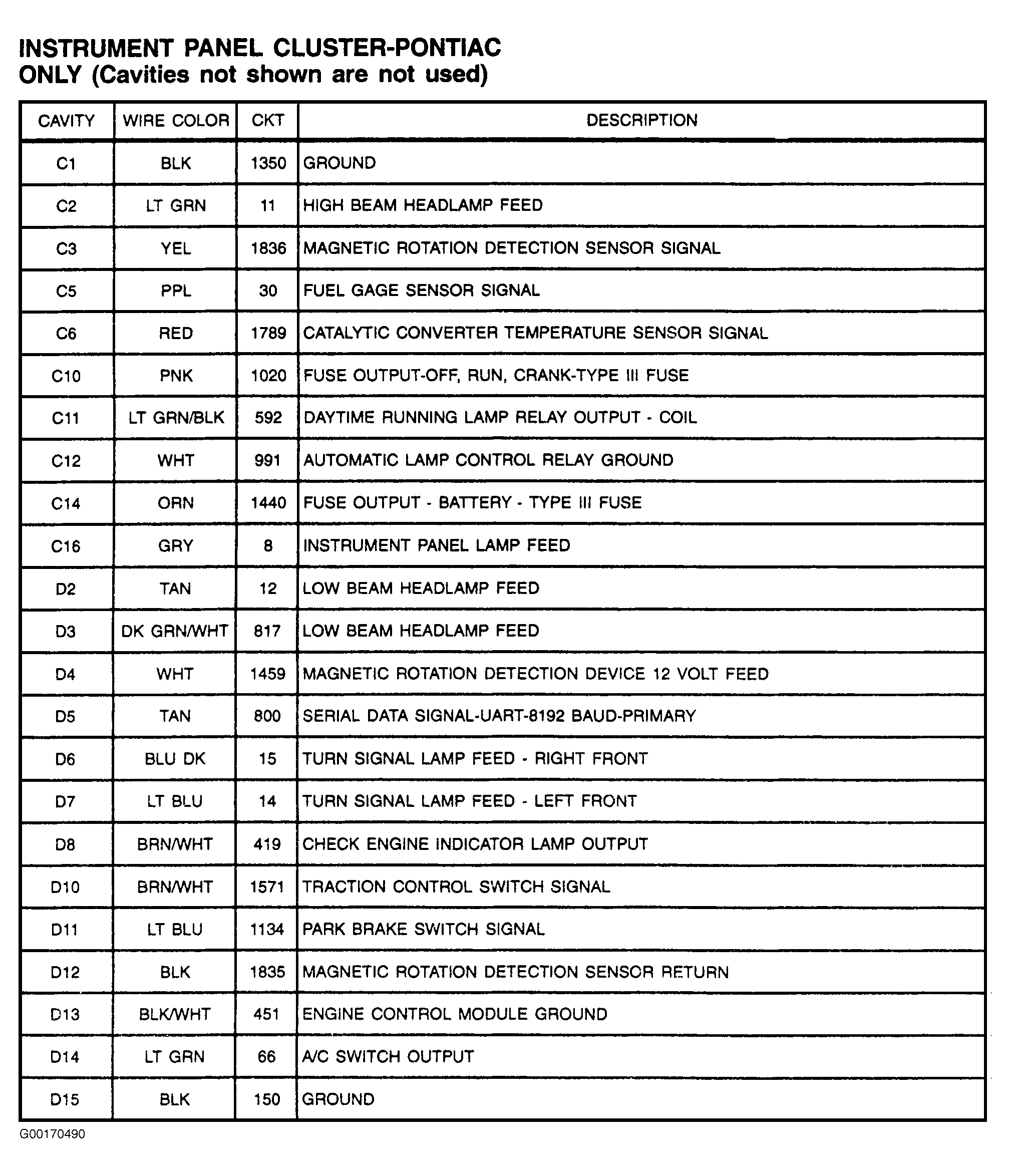

Fig 2: Instrument Panel Cluster (Grand Am) - 32-Pin Connector (Black) - (2 Of 2)
G00170490Courtesy of GENERAL MOTORS CORP.
