Pinout Description

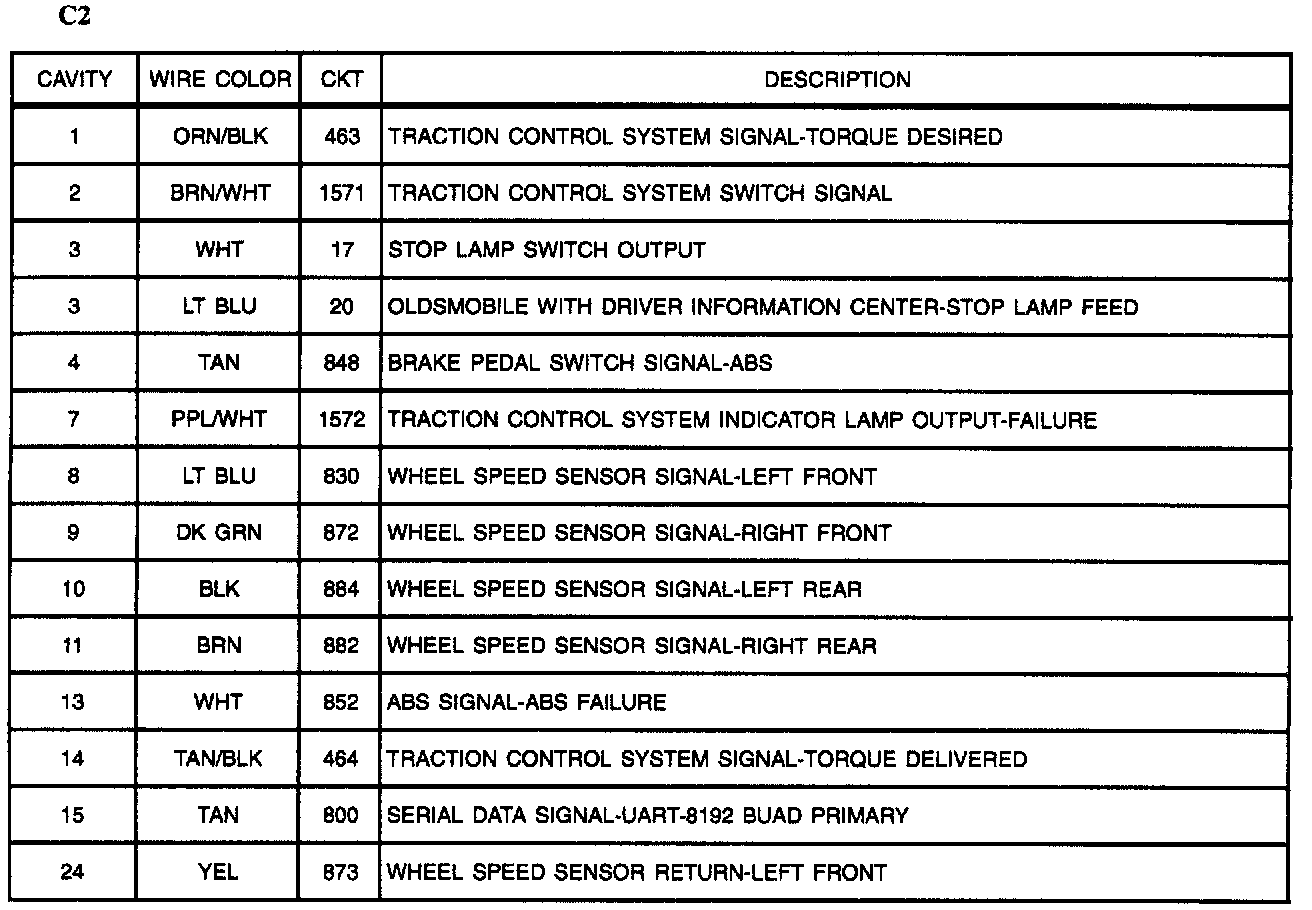

Electronic Brake (And Traction) Control Module (EBCM/EBTMC): C2 (Part 1 Of 2):



Electronic Brake (And Traction) Control Module (EBCM/EBTMC): C2 (Part 2 Of 2):
