Remote Function Actuator (RFA) Module

Remote Function Actuator Module:

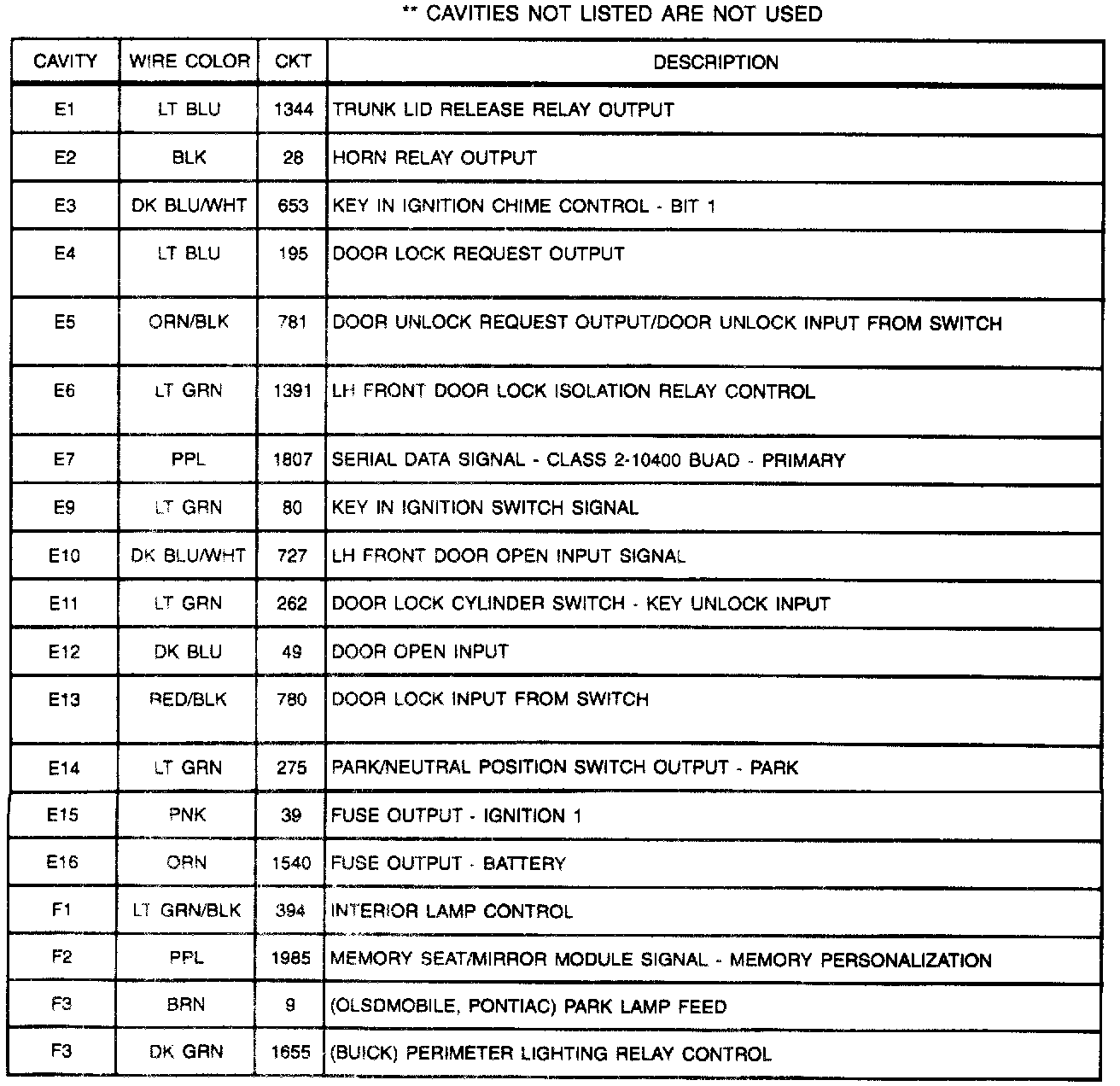

Remote Function Actuator Module (Part 1 Of 2):



Remote Function Actuator Module (Part 2 Of 2):
