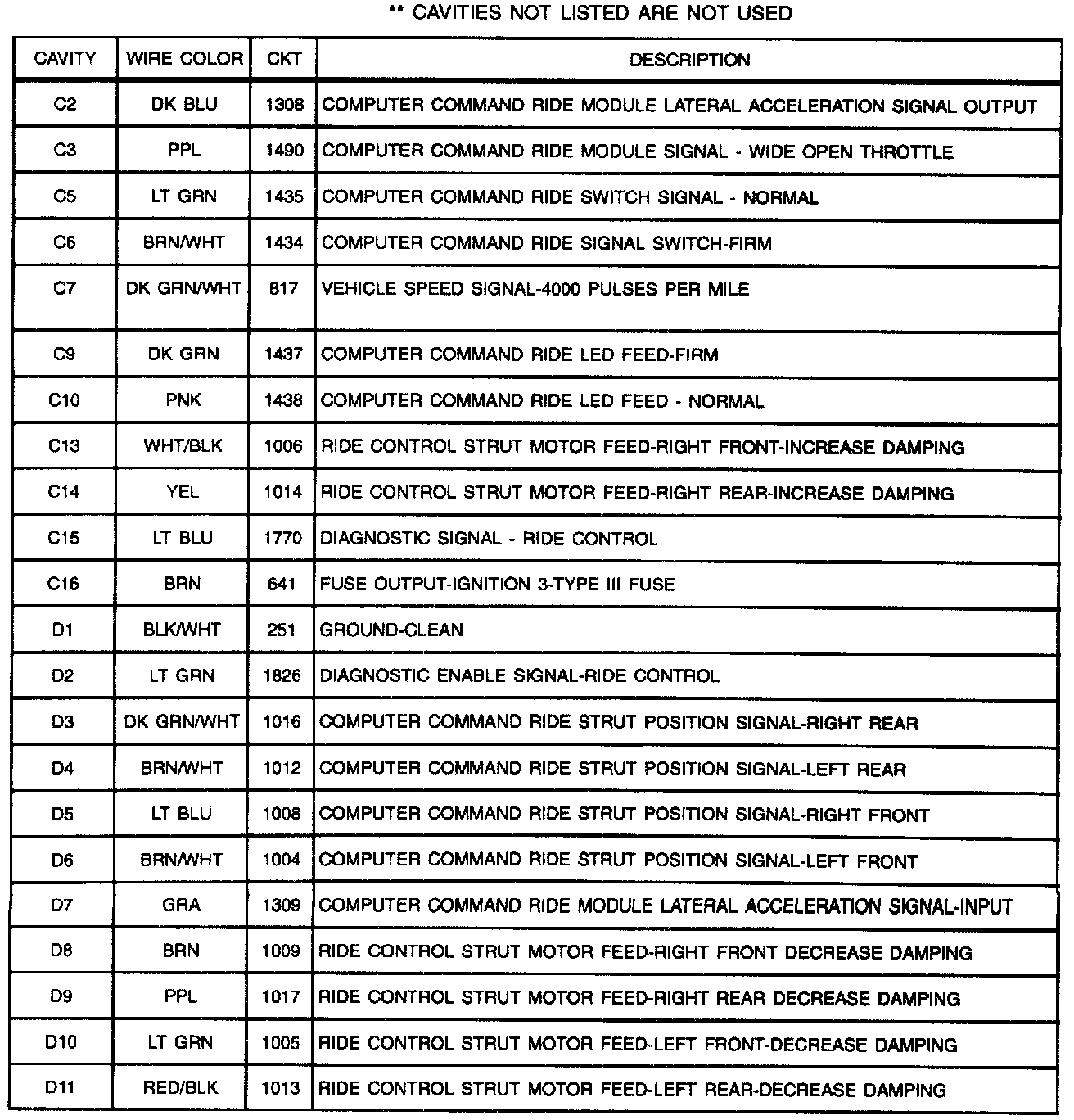

Pinout Description

Computer Command Ride Control (Part 1 Of 2):



Computer Command Ride Control (Part 2 Of 2):
