Home >> Oldsmobile >> 1997 >> LSS V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Intake Manifold
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Intake Manifold

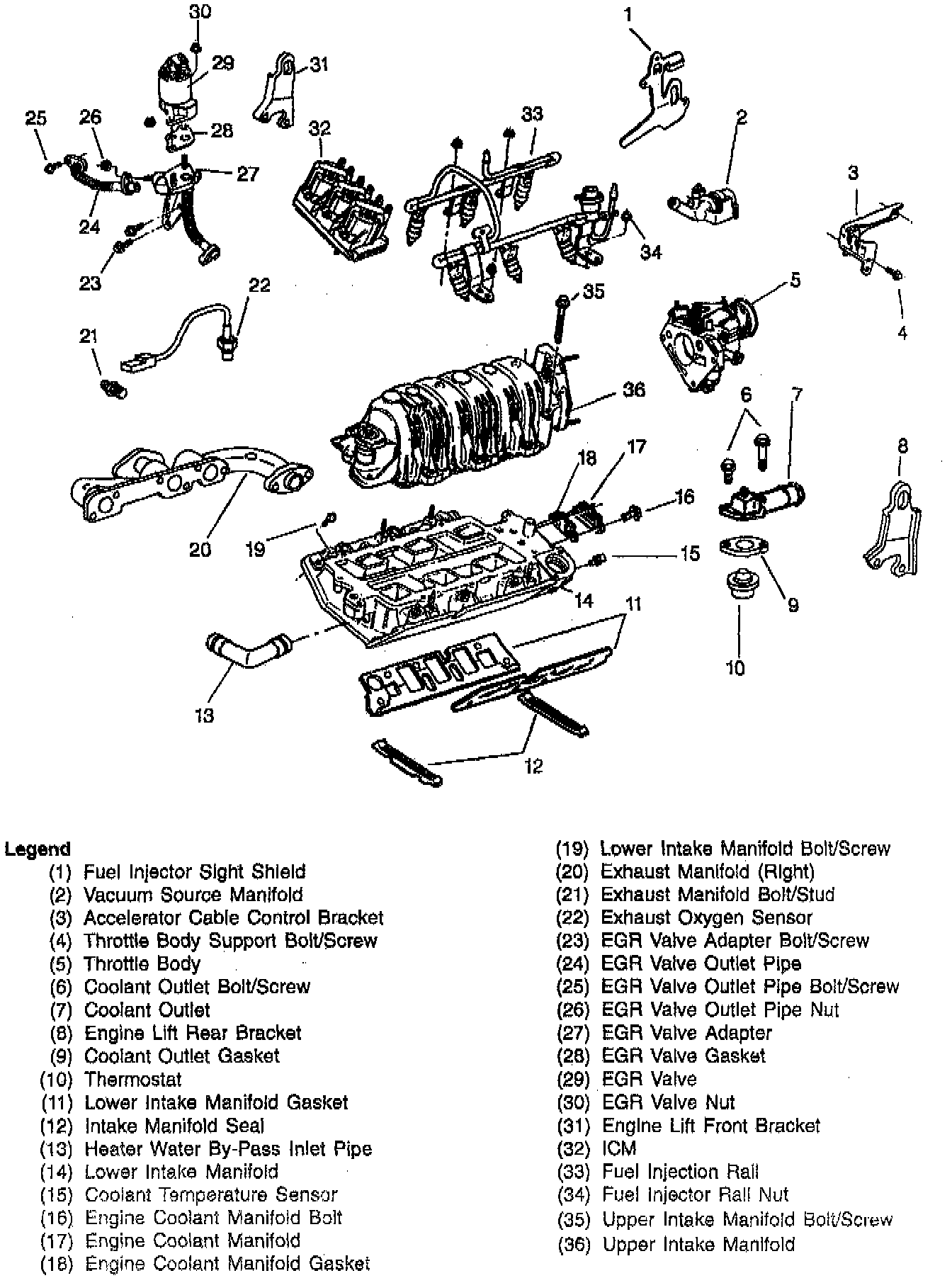

Part 1 Of 2:

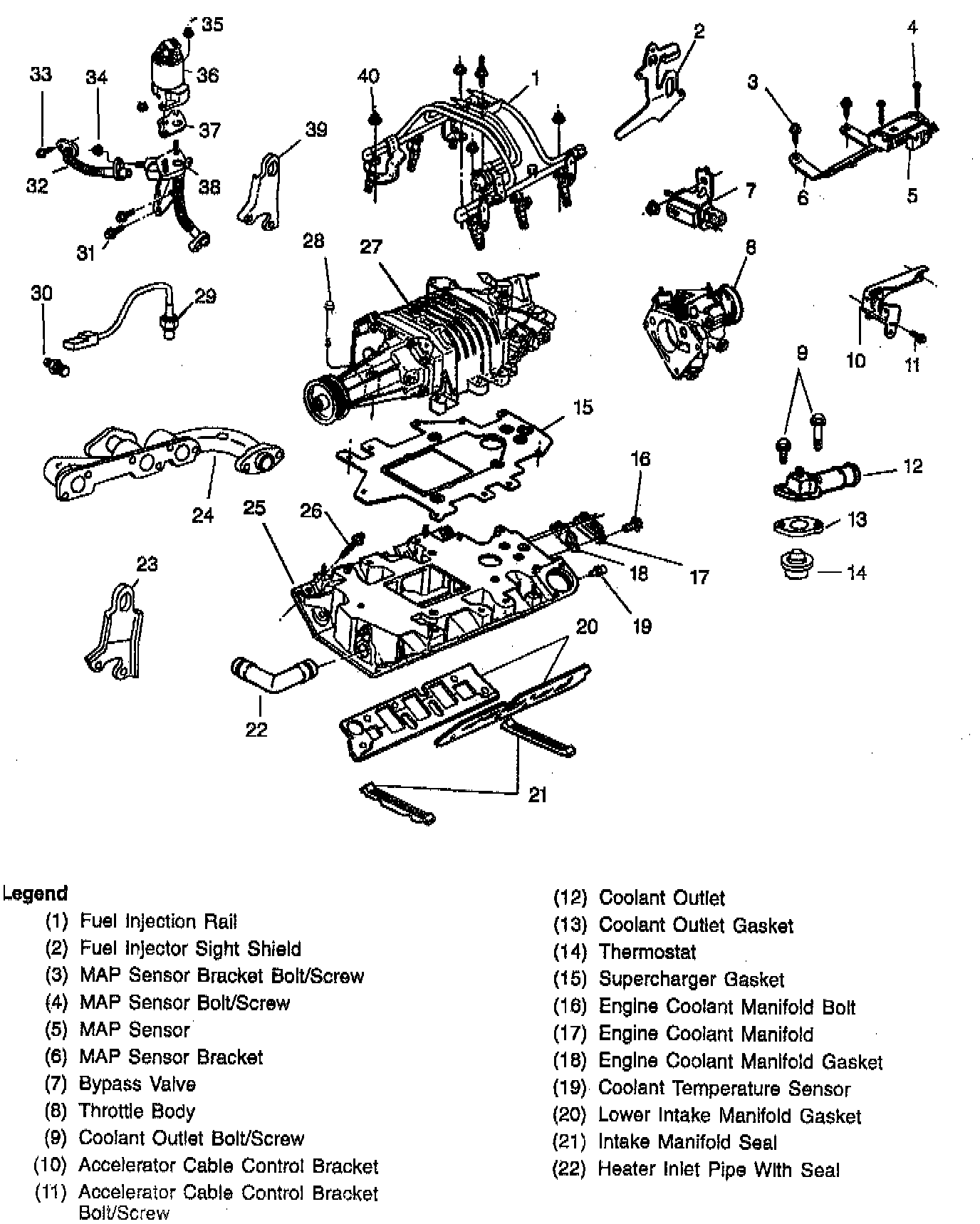

Part 2 Of 2:
