Fog Switch/Trunk Lid Release Switch (OLDSMOBILE), Seat Control Module C4 (PONTIAC) & Traction Control Switch (OLDSMOBILE)

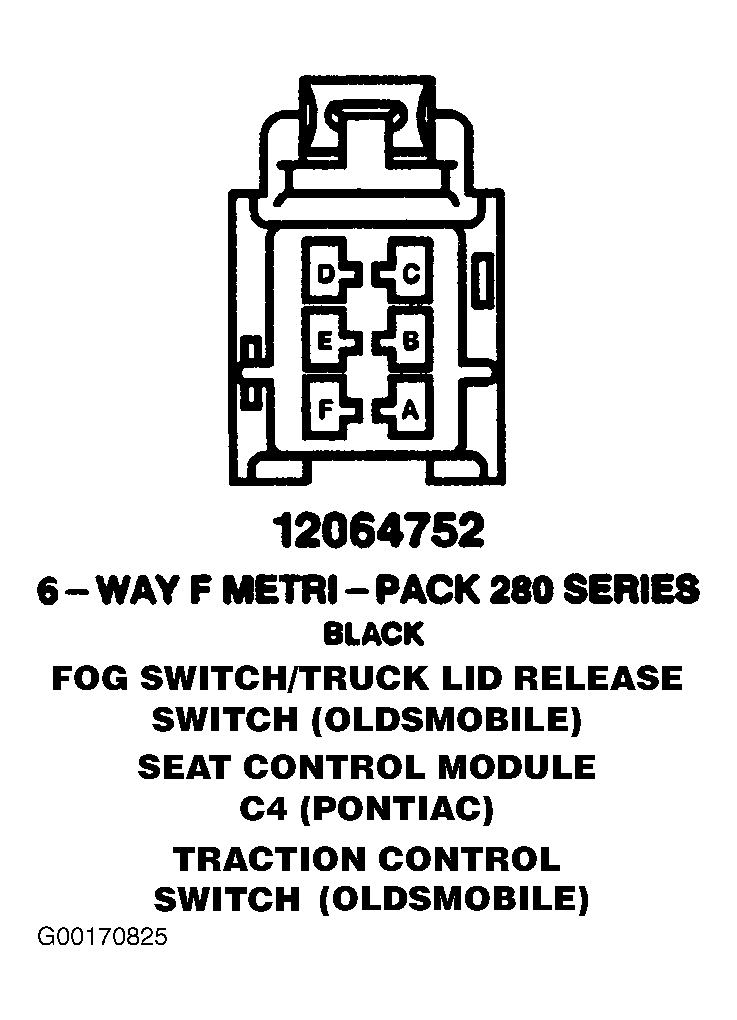

Fig 1: Fog Switch/Trunk Lid Release Switch (Oldsmobile), Seat Control Module C4 (Pontiac) & Traction Control Switch (Oldsmobile) - 6-Pin Connector (Black)
G00170825Courtesy of GENERAL MOTORS CORP.
