Heater & A/C Control (Front Manual A/C Controls) C1

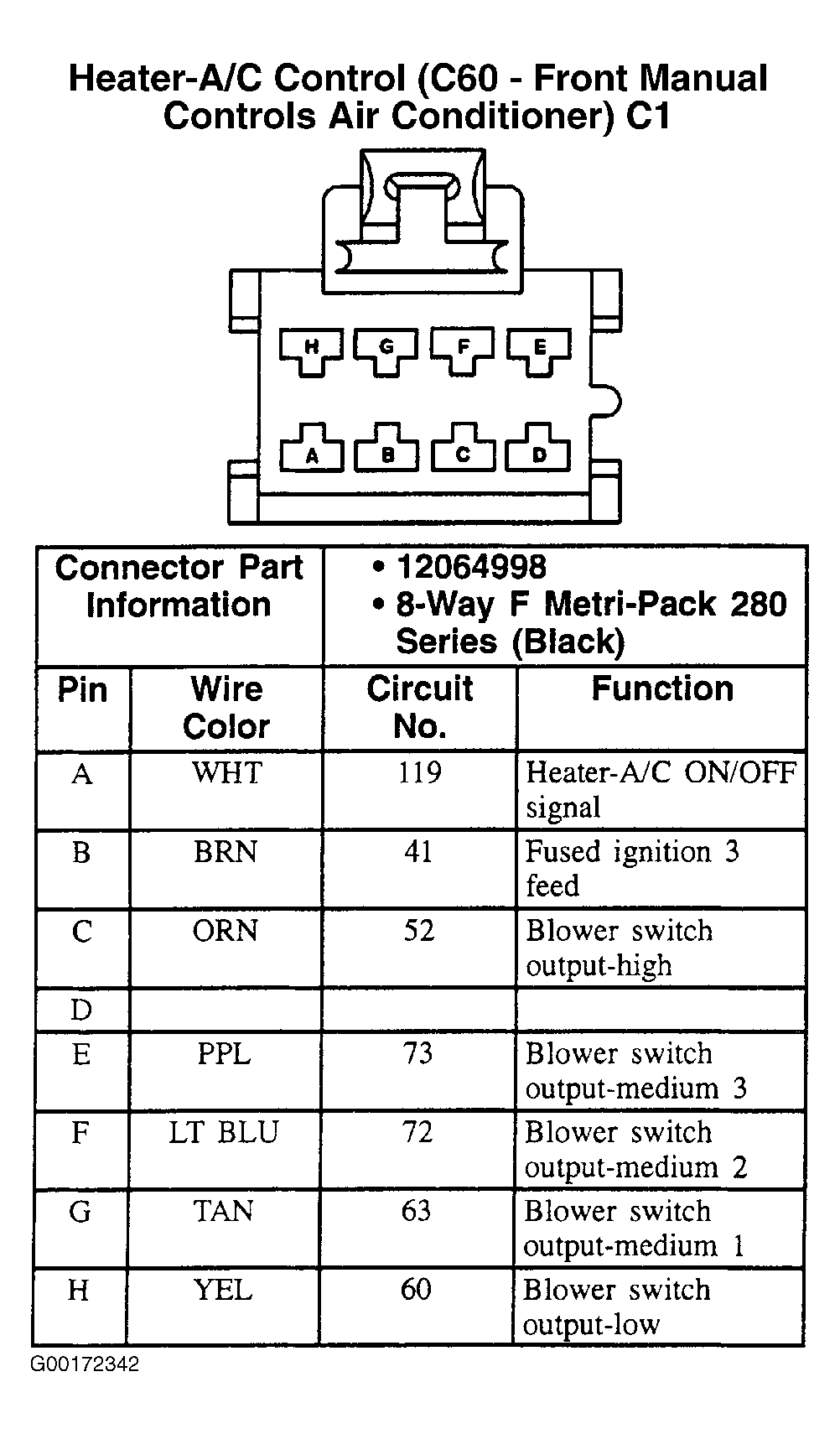

Fig 1: Heater & A/C Control (Front Manual A/C Controls) C1 - 8-Pin Connector (Black)
G00172342Courtesy of GENERAL MOTORS CORP.
