Ign Key Alarm SW

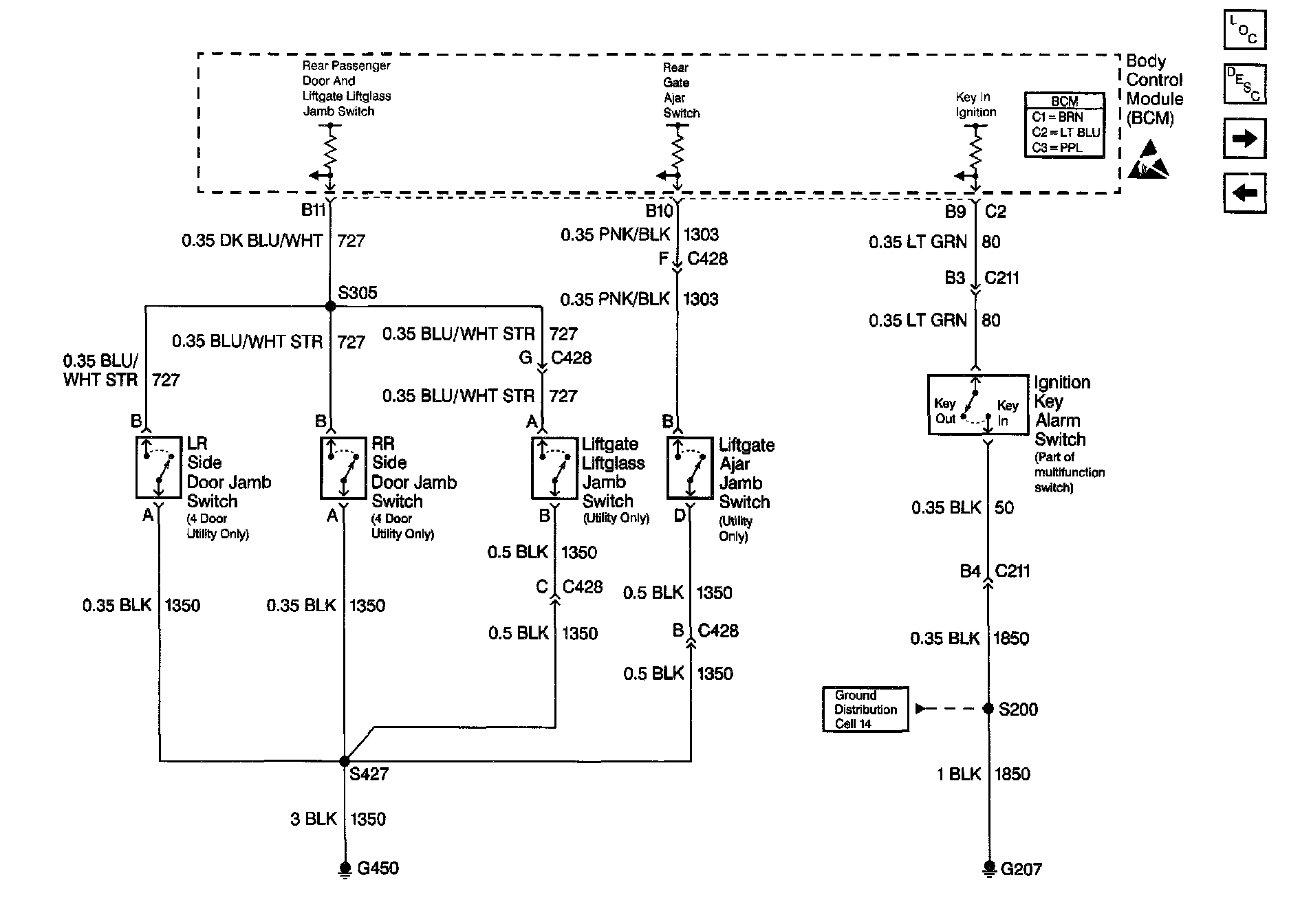

Body Control Module: Rear Side Door, Liftgate Liftglass And Liftgate Ajar Jamb Switches And Ignition Key Alarm Switch:
