Fuse Block

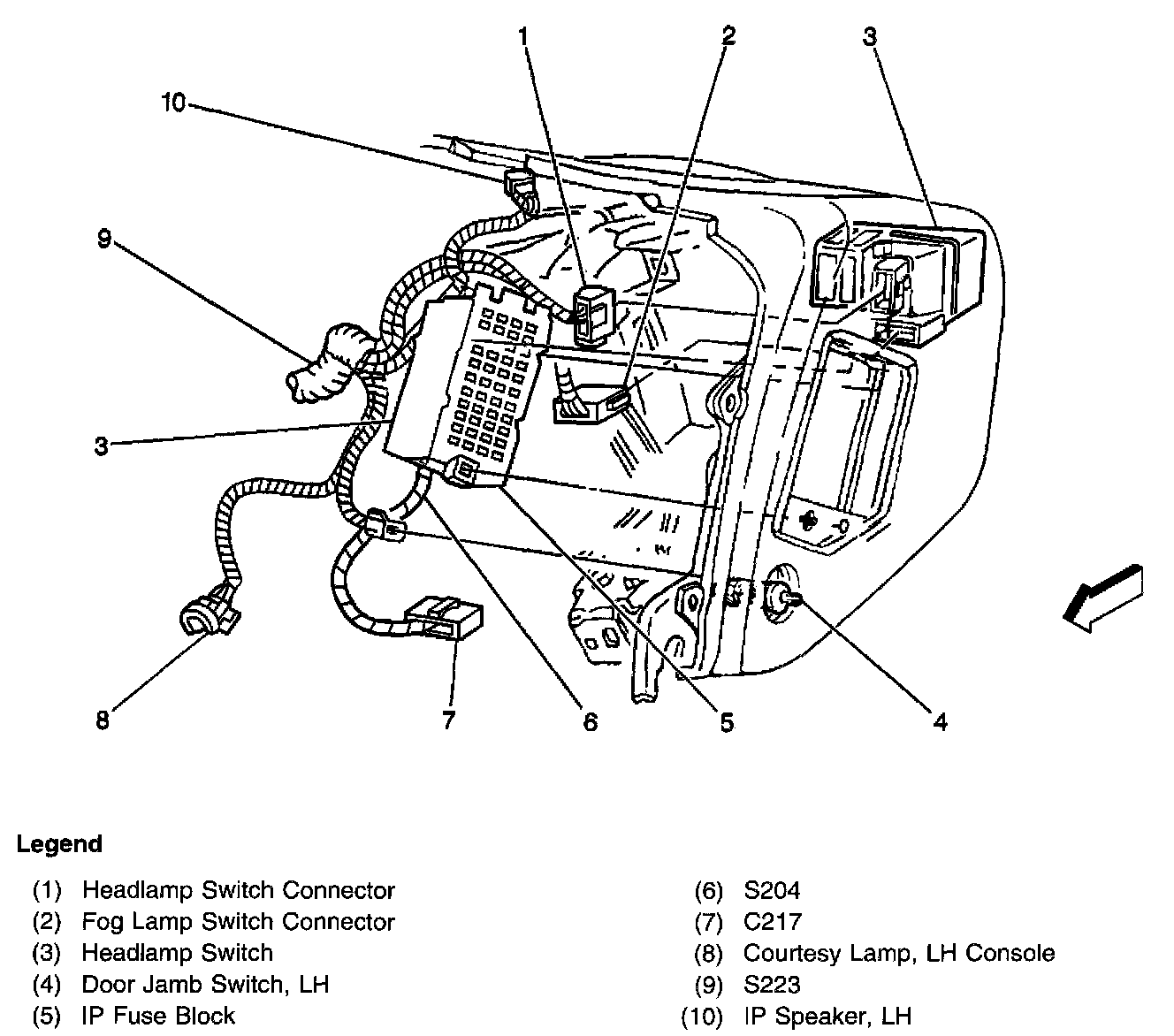

Instrument Panel, LH (RH Similar):

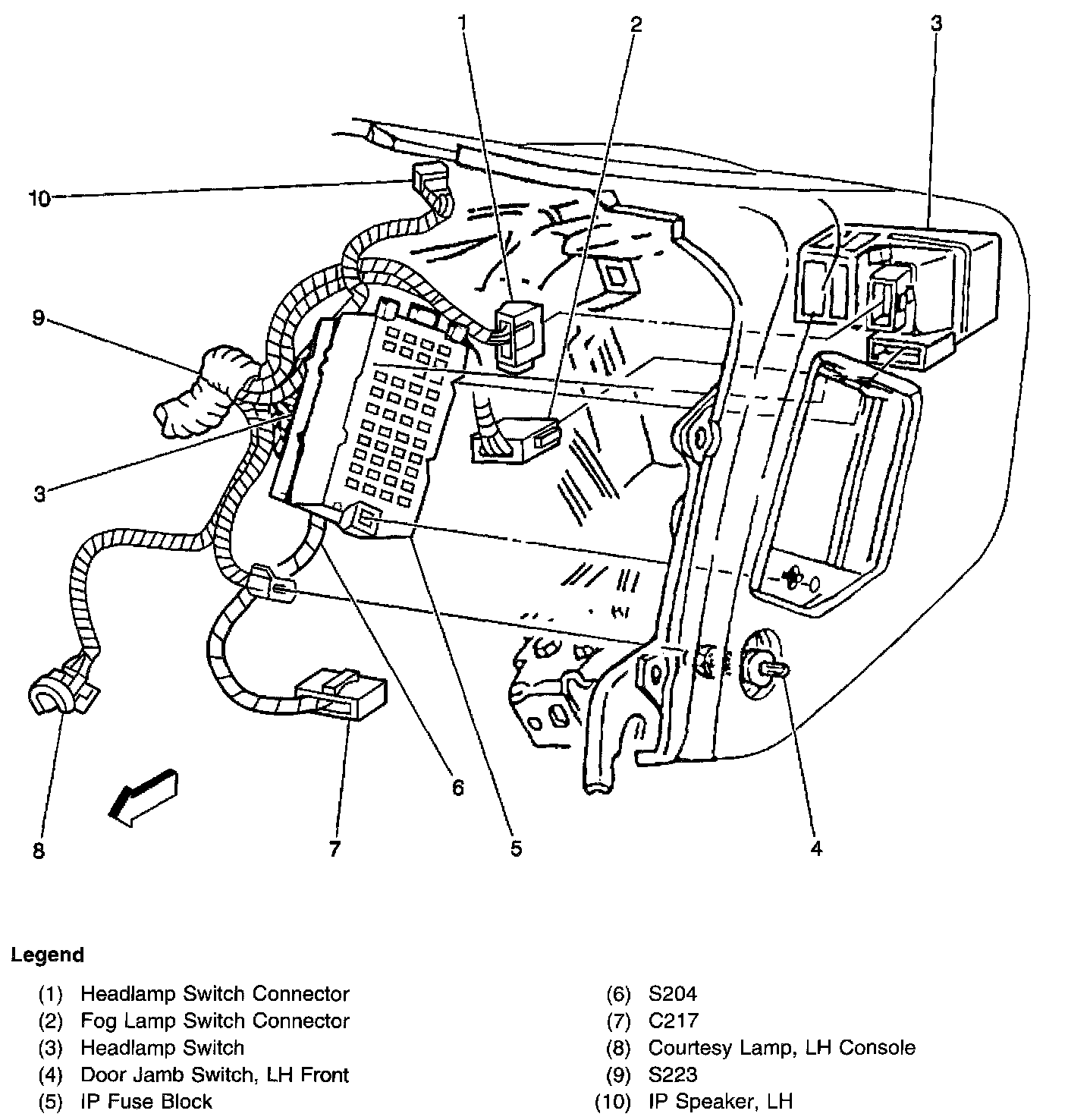

Instrument Panel, LH (RH Similar):






To the left of the IP, near the left front door jamb switch
