Hi Beam Relay, Multifunction Switch and Ignition Switch

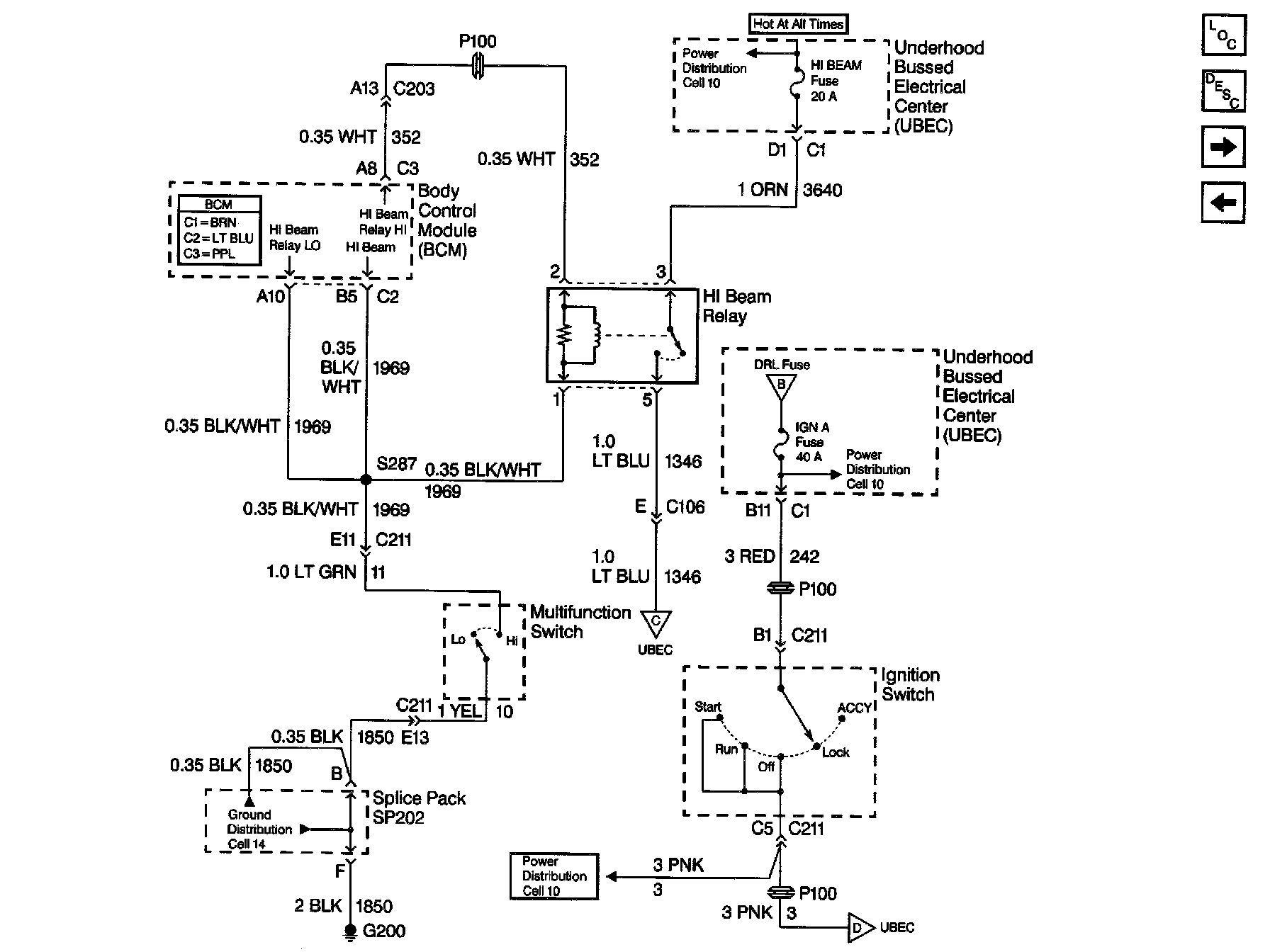

Body Control Module Schematics: HI Beam Relay, Multifunction Switch And Ignition Switch:
