Transaxle Range Switch

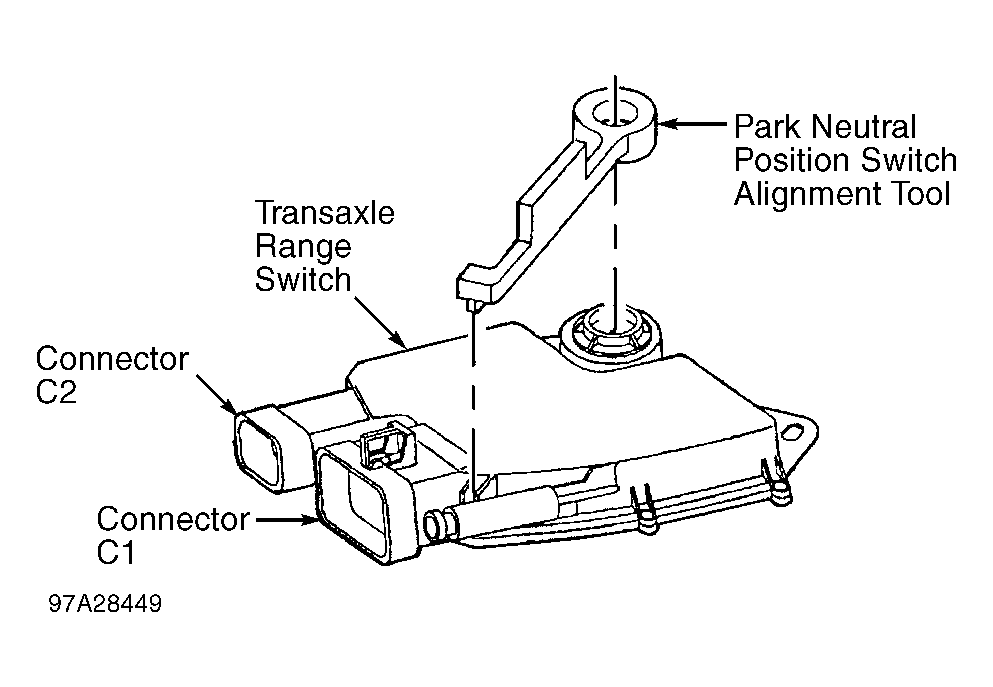

Remove negative battery cable. Remove shift linkage. Remove transaxle range switch electrical connector. Loosen transaxle range switch mounting blots. Place shift shaft in Neutral position and align flats of shift shaft with switch. Place Park Neutral Position Switch Alignment (J41545) tool and rotate switch until tool drops into position. See Fig 1. Tighten mounting bolts and remove alignment tool. After switch adjustment, verify that engine will only start in Park or Neutral. If engine will start in any other position re-adjust switch.
