Passlock Sensor, Serial Data (Class 2)

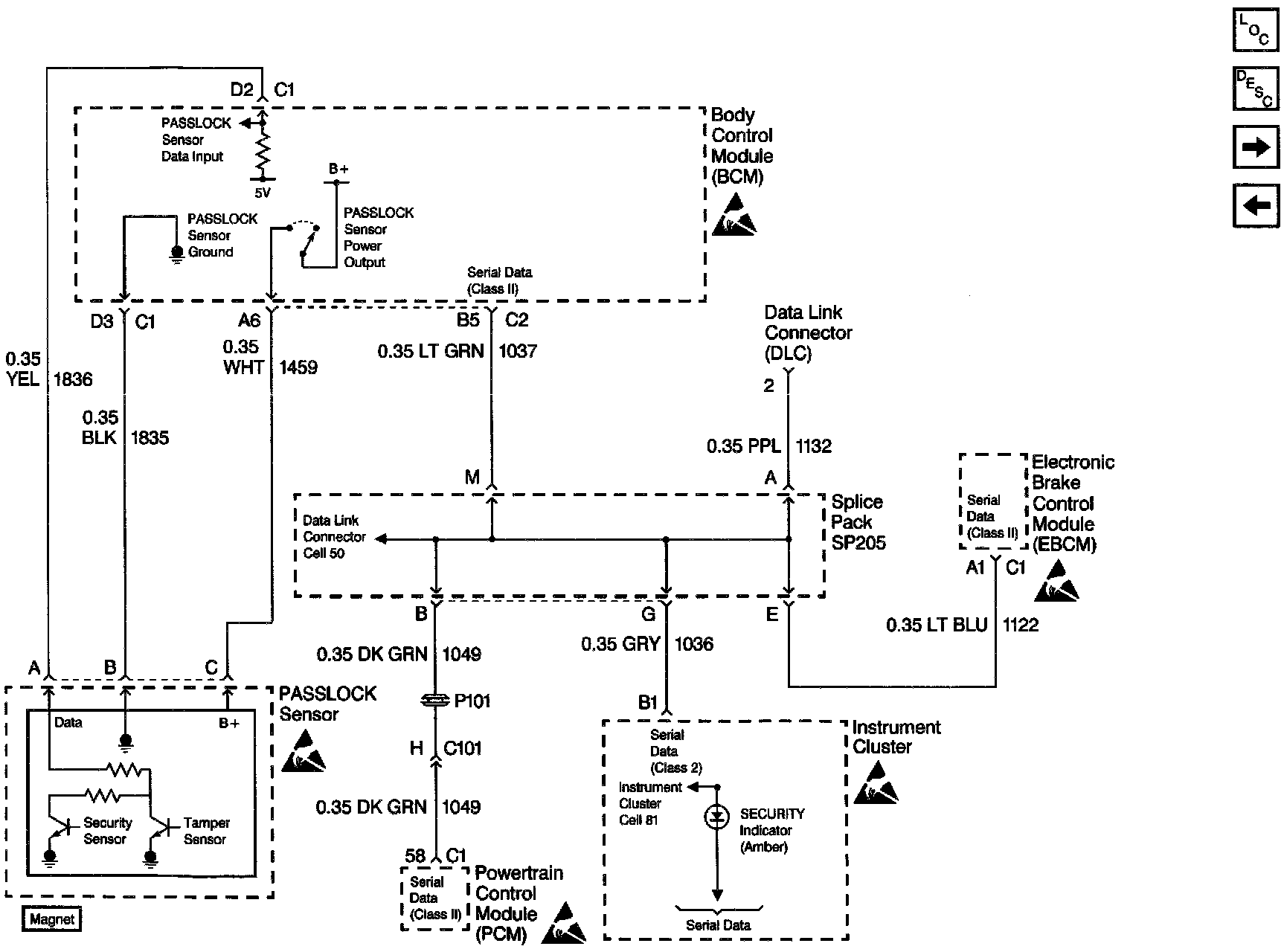

PASSLOCK Sensor, Serial Data (Class 2) - Without Electronic Traction Control Switch:
