Pinout Description

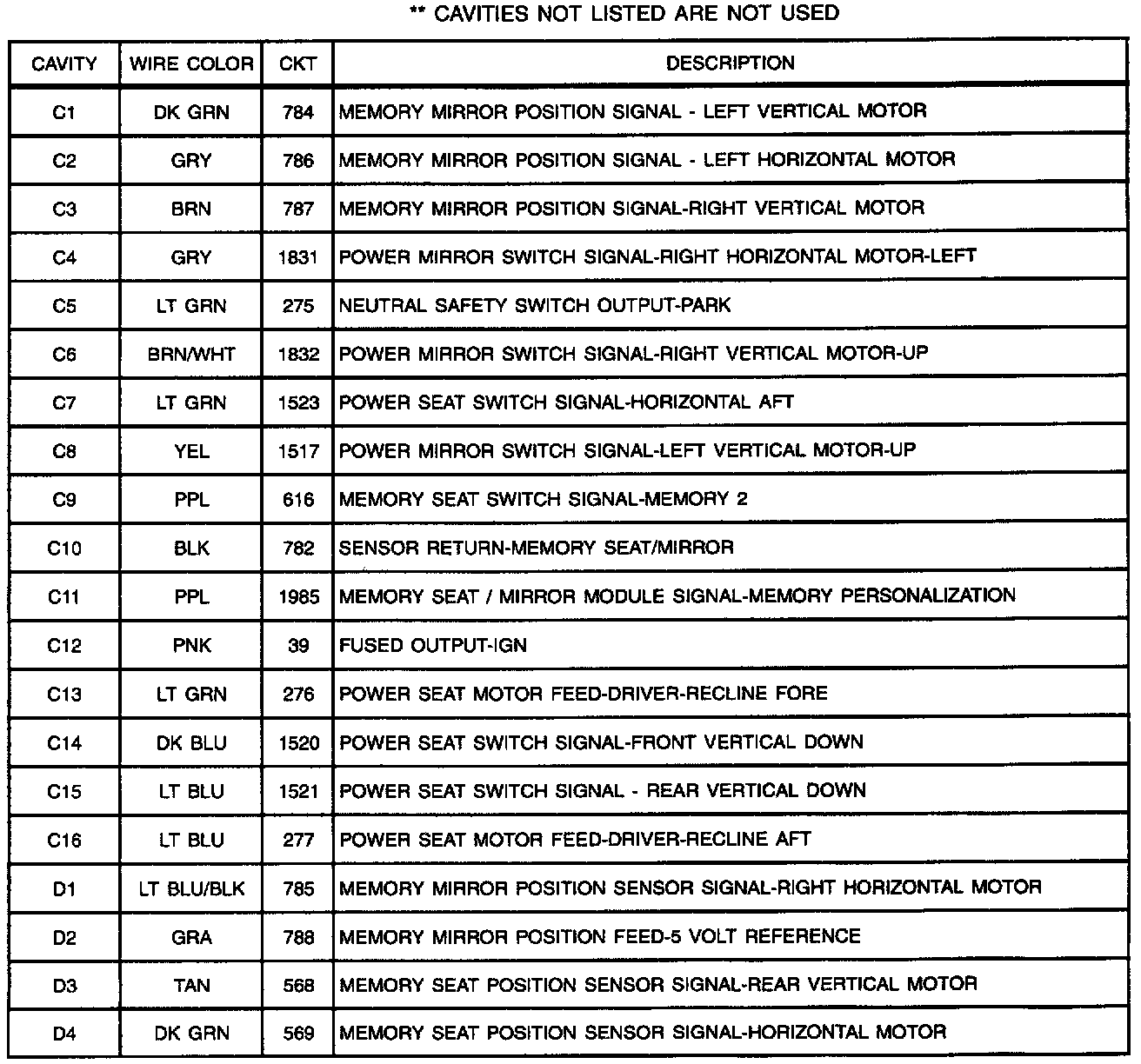

Memory Seat/Mirror Module: C2 (Part 1 Of 2):

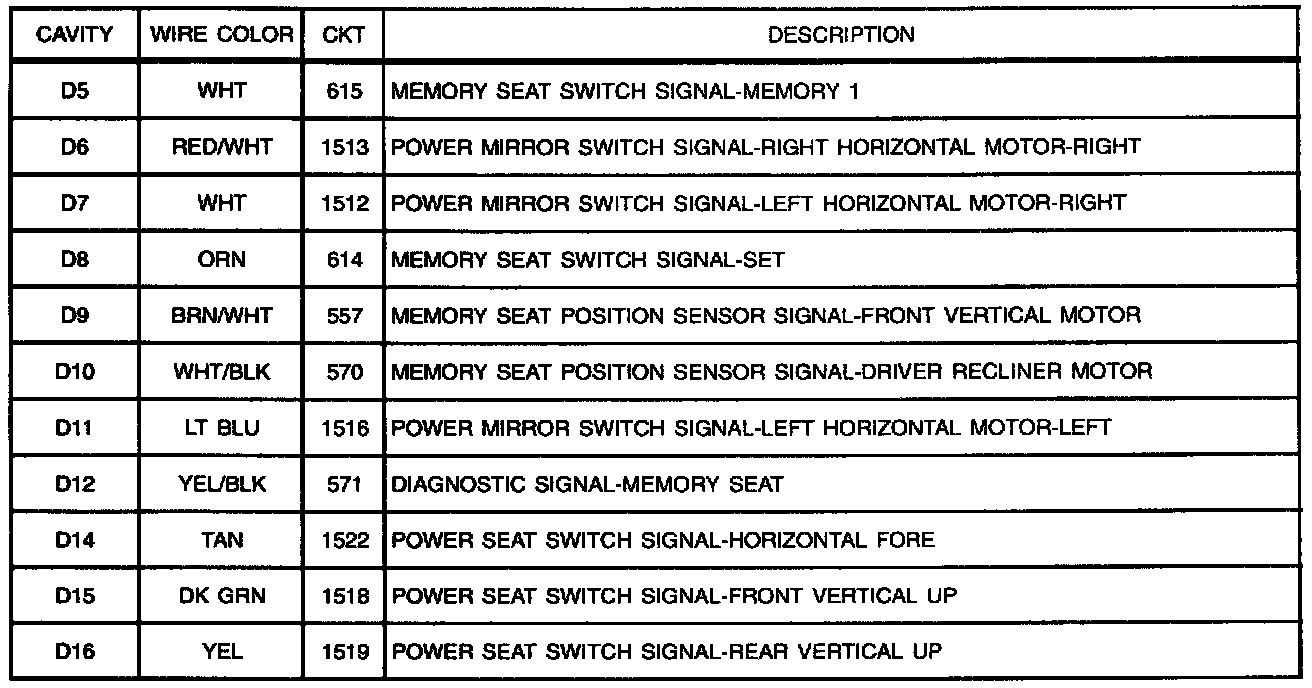

Memory Seat/Mirror Module: C2 (Part 2 Of 2):
