Ignition Control (IC Module)
Locations View:

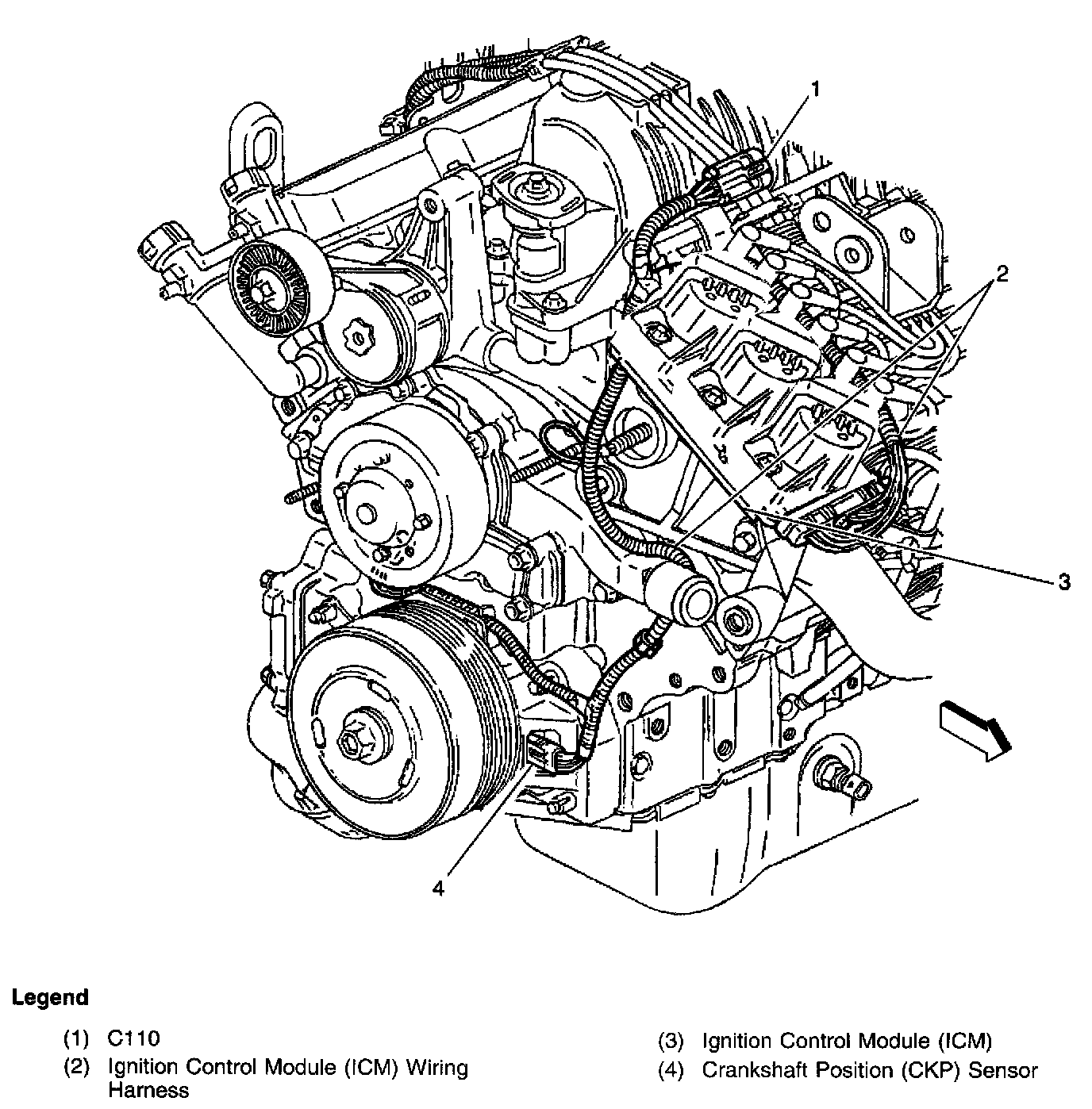

ICM, CKP Sensor And C110 - RH Side Of Engine:
Top right front of the engine
