Radio Antenna Module

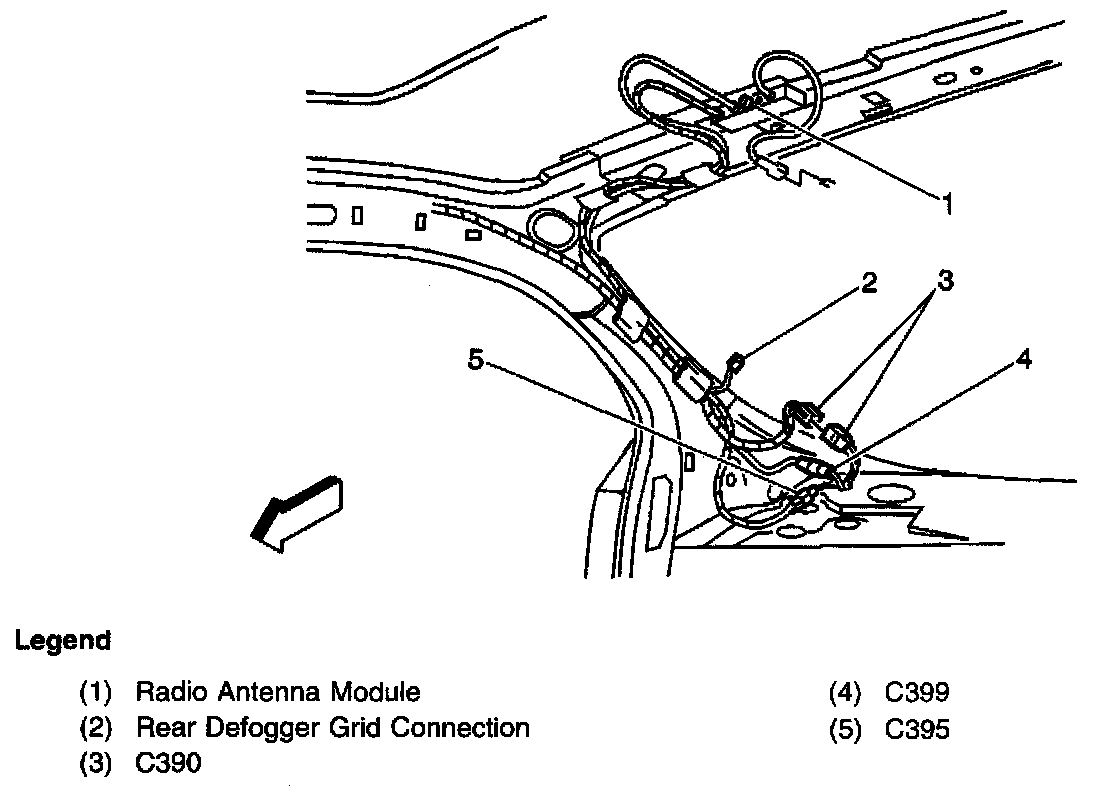

Radio Antenna Module, C390, C395, And C399 - RH C-Pillar:





Mounted to the rear window header panel, behind the headliner (W/ RPO U77)
