Driver Information Display Module Connector C1(W/Trip Computer)

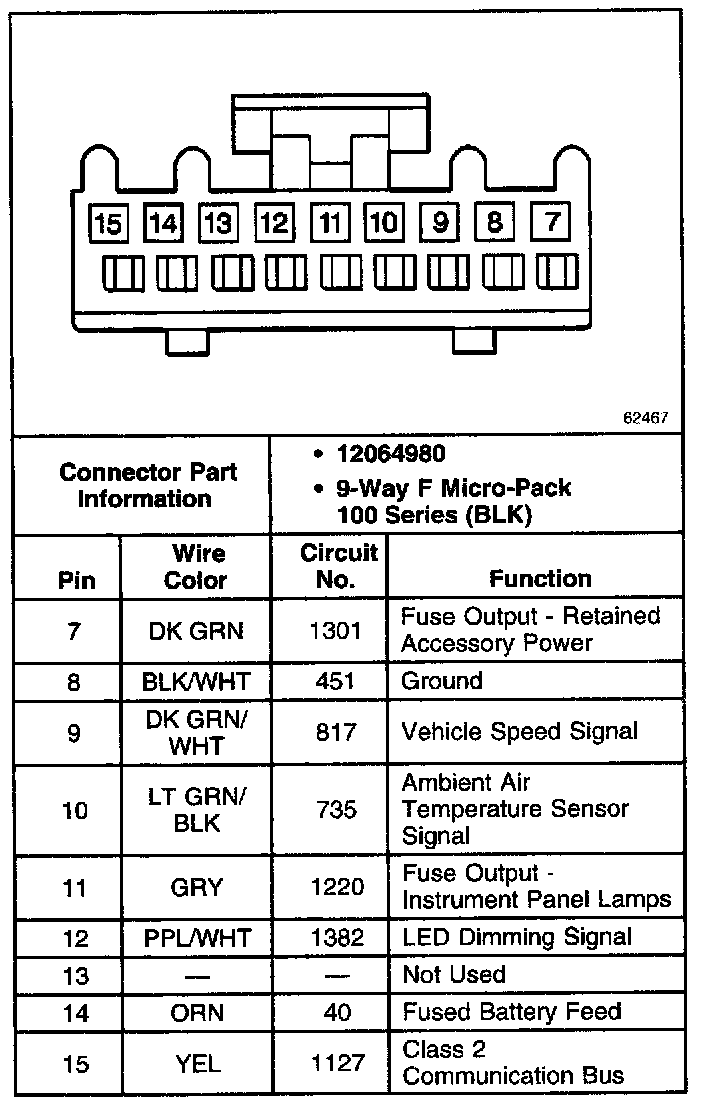

Driver Information Display Module, Connector C1, (w/ Trip Computer):
