Bravada V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
>>
Electronic Brake Control Module (EBCM) (310 ABS)
>>
Connector C2
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

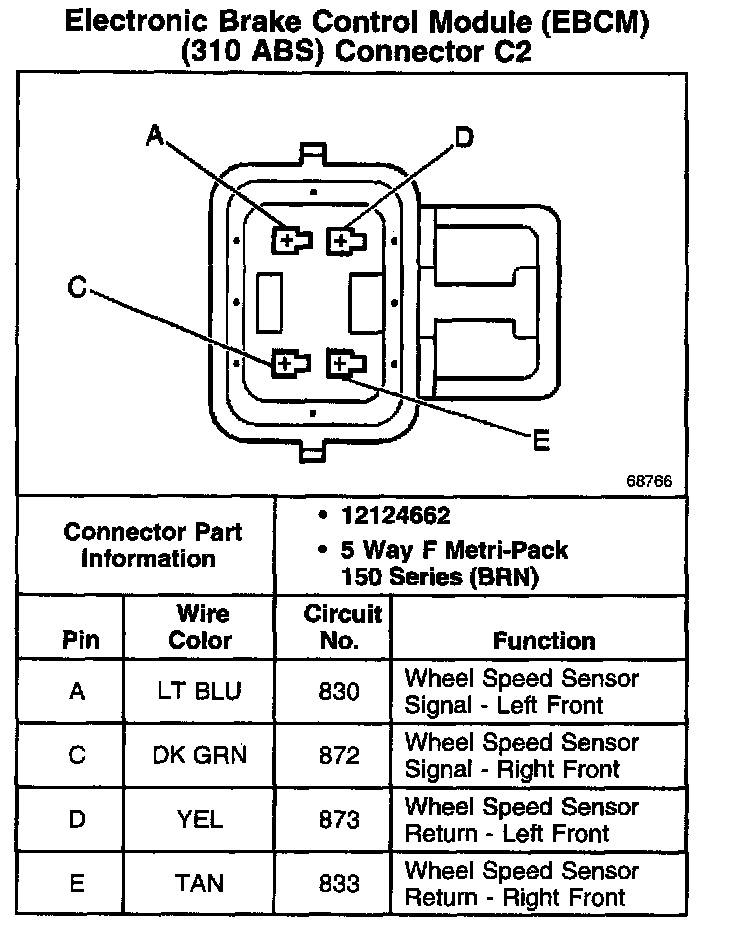

Connector C2
