Home >> Oldsmobile >> 2000 >> Bravada V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transfer Case >> Control Module, Transfer Case >> NVG 233-NP1 (Two Speed Selectable)
April 5, 2026: LEMON Manuals is launched! Read the announcement.

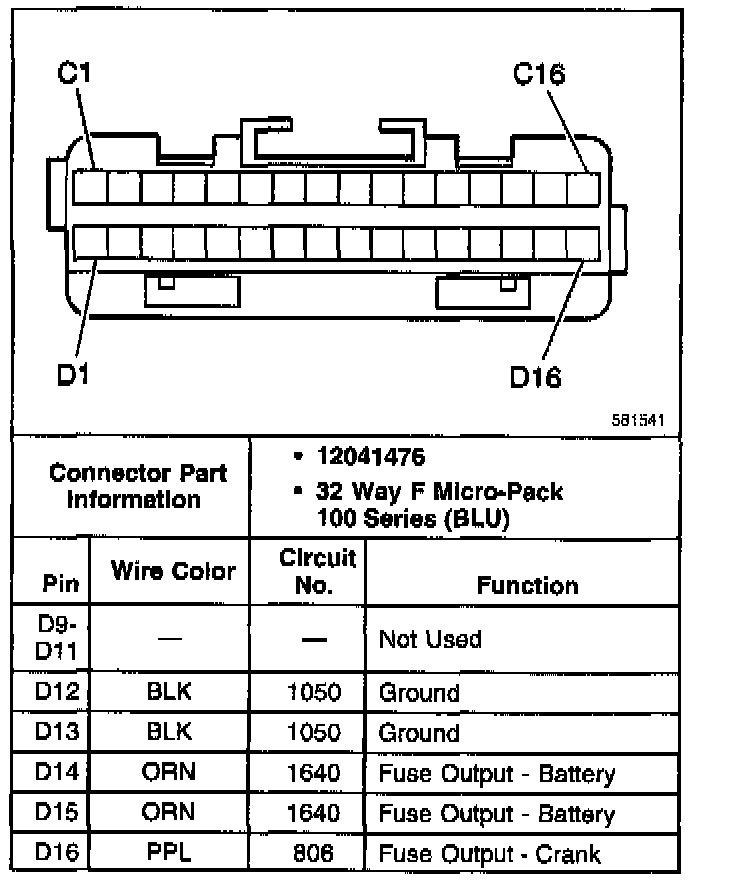

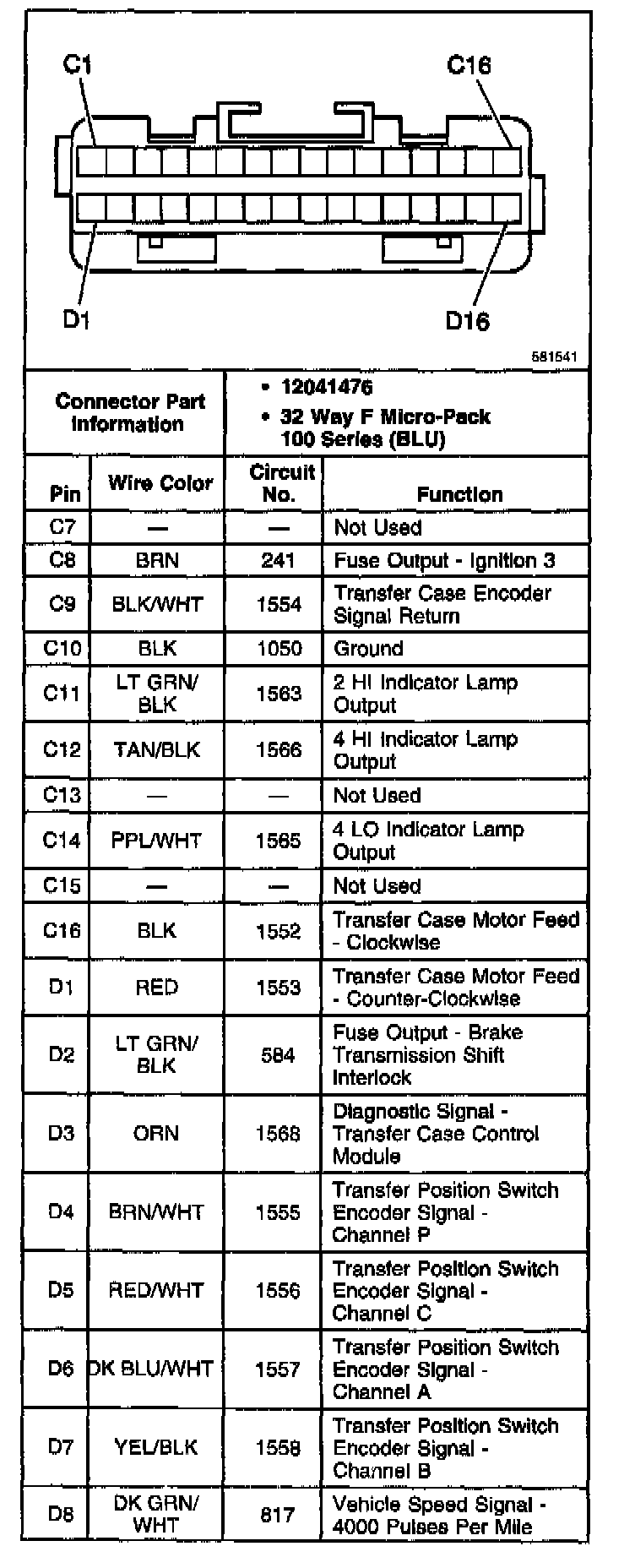

NVG 233-NP1 (Two Speed Selectable)
