Bravada V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transfer Case
>>
Control Module, Transfer Case
>>
NVG 236 (Two Speed Automatic)
>>
Transfer Case Shift Control Module Connector C1
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

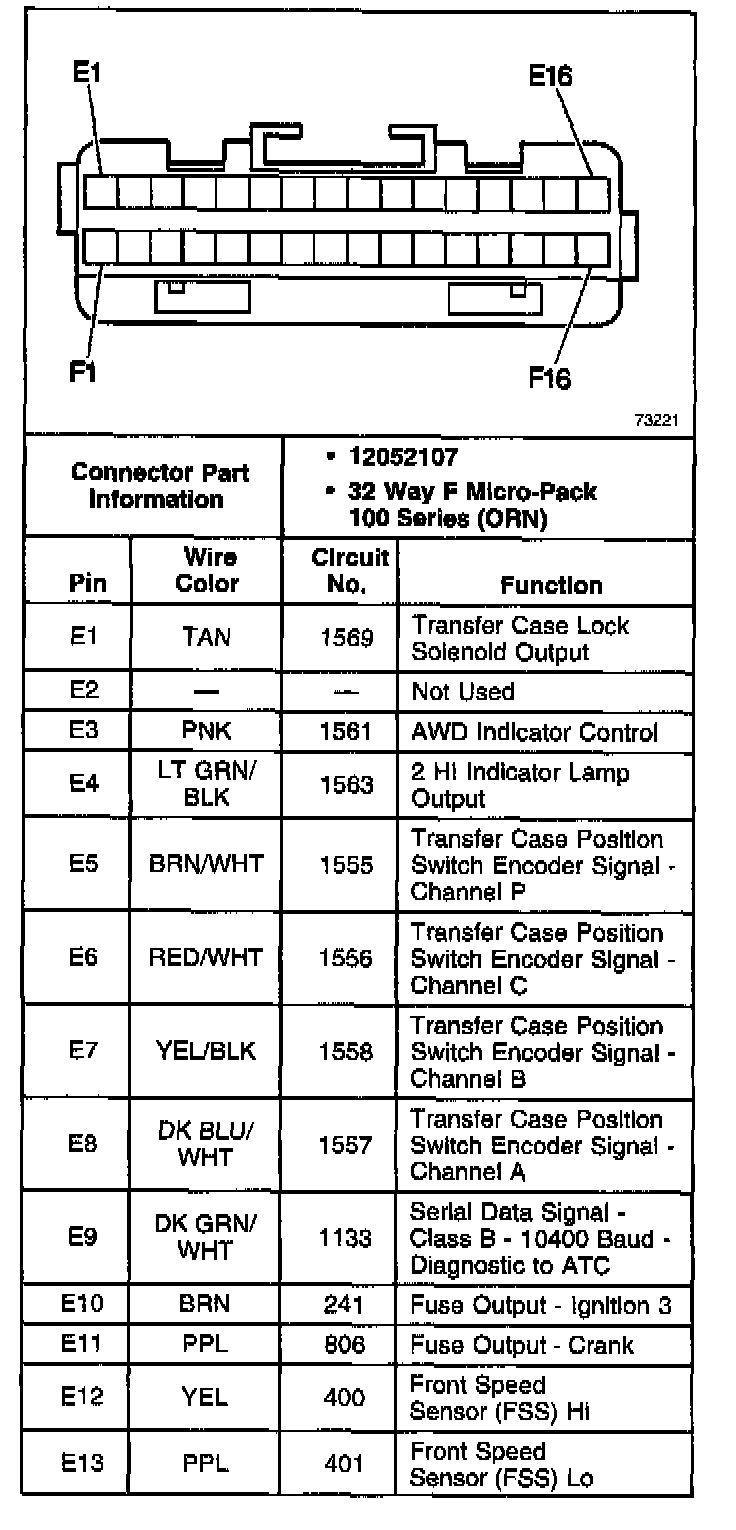

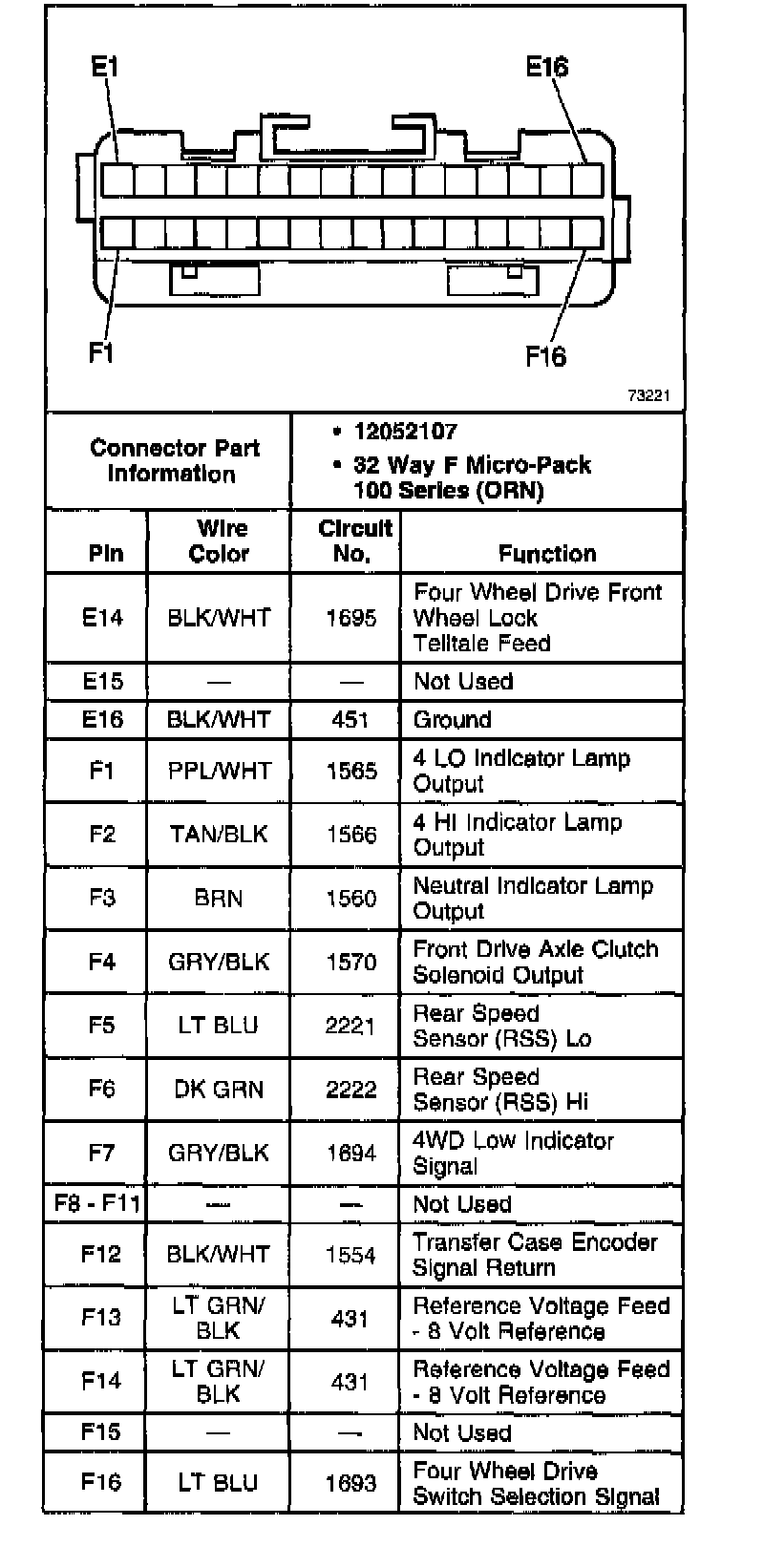

Transfer Case Shift Control Module Connector C1
