CRUISE Fuse, Multifunction Switch And Cruise Control Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

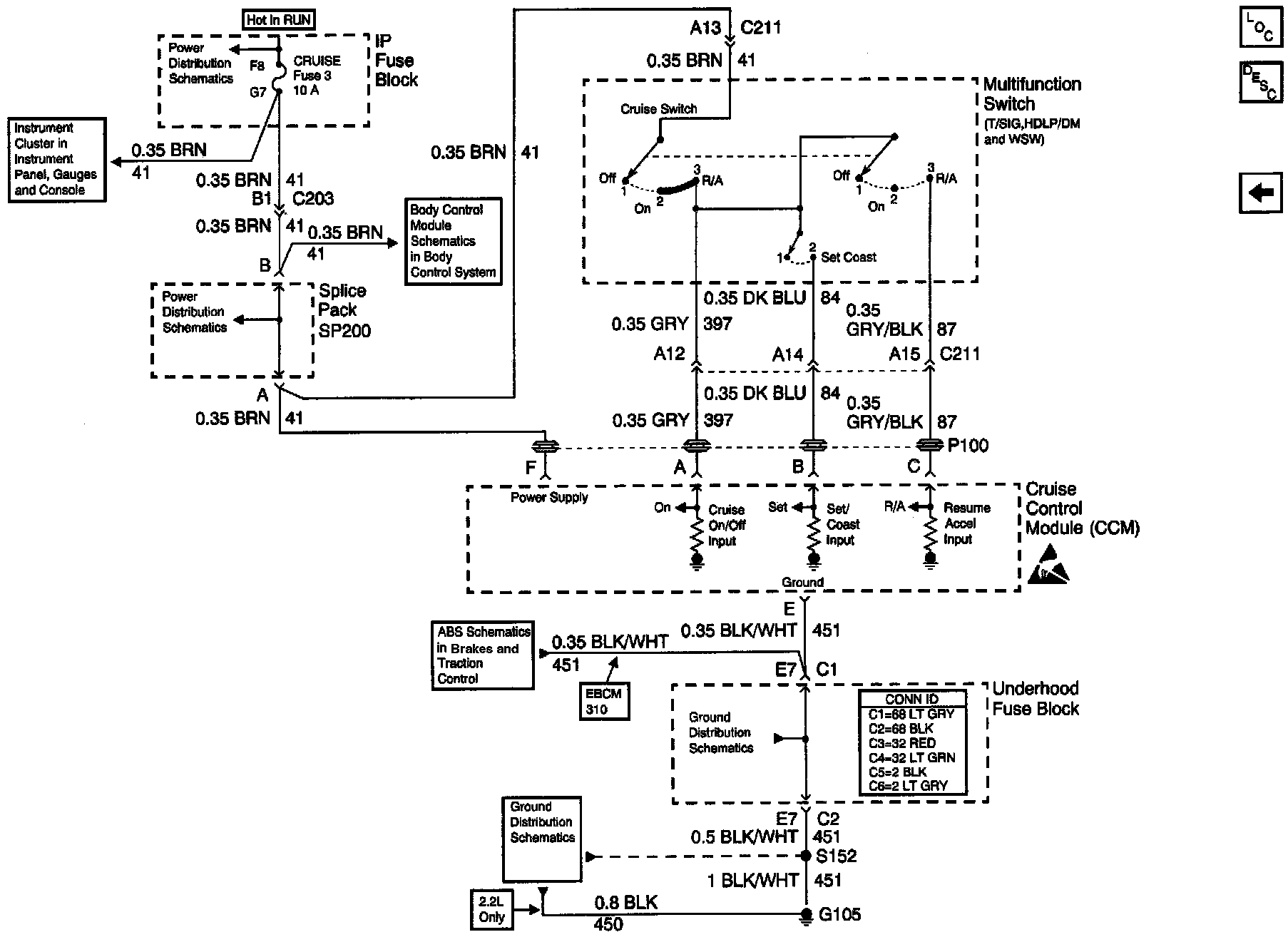

CRUISE Fuse, Multifunction Switch And Cruise Control Module
Cruise Control Schematics: CRUISE Fuse, Multifunction Switch And Cruise Control Module:
