Blower Motor Control Module Processor: Removal
WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

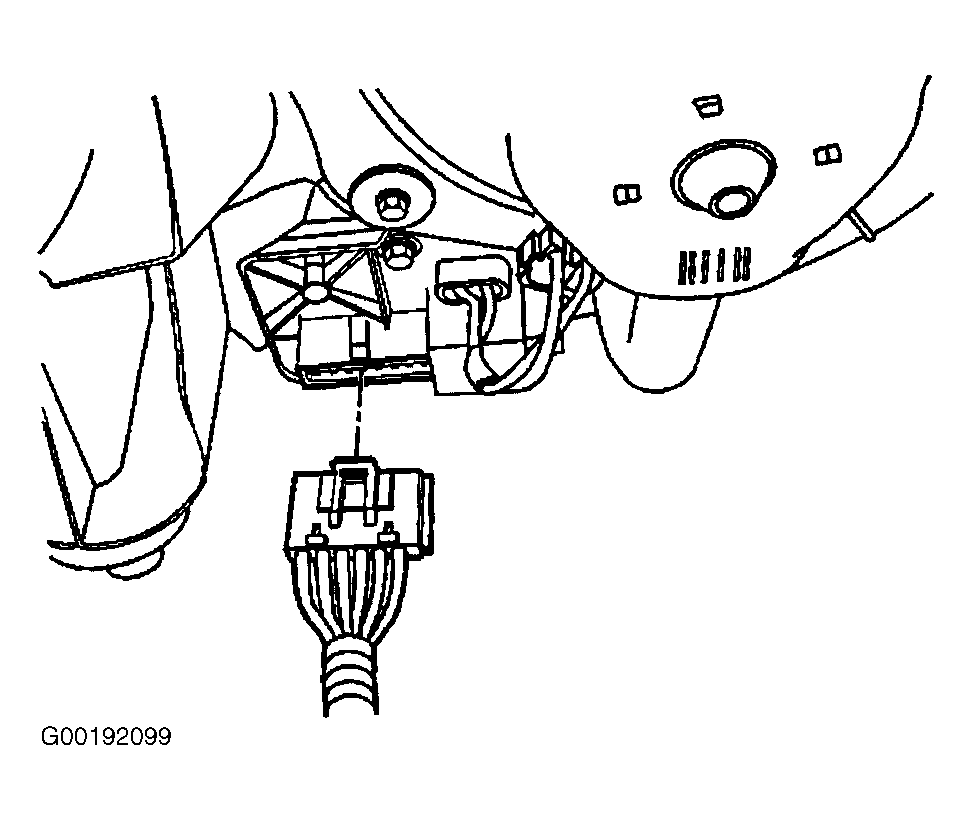

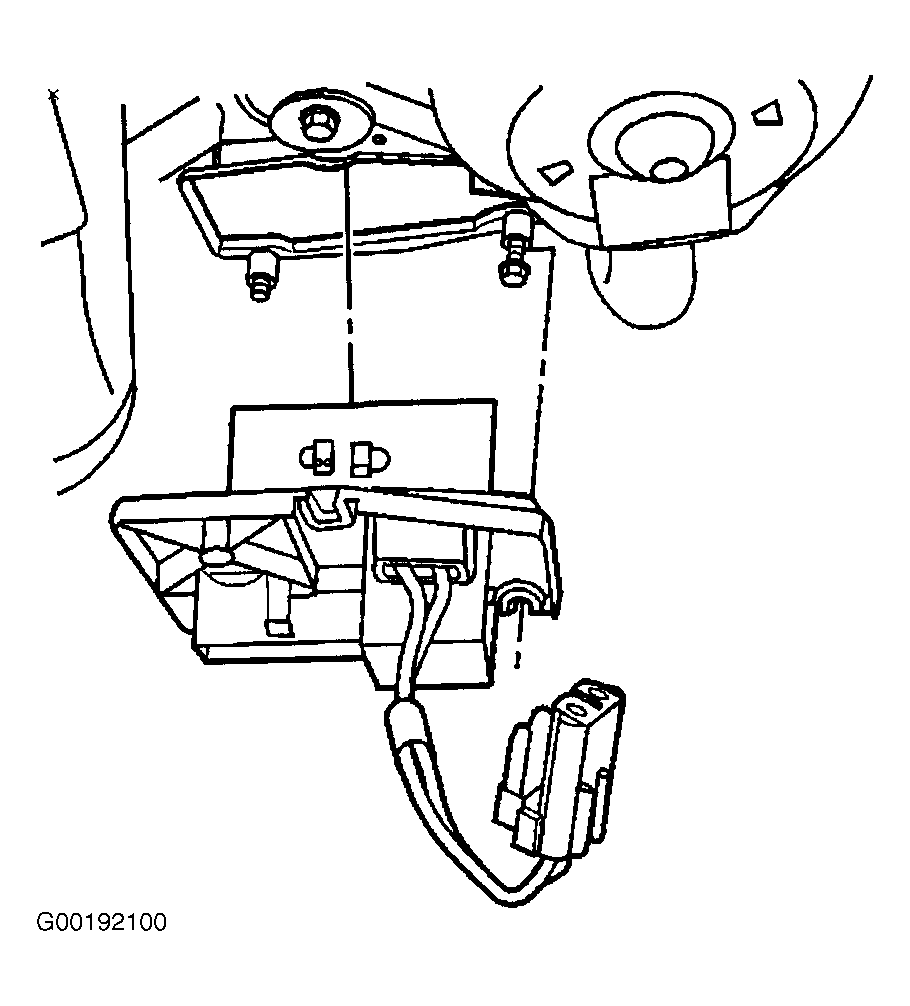

Remove the right side instrument panel insulator. Disconnect the electrical connector from the control module processor. See Figure. Disconnect the electrical connector from the blower motor. The control module processor opening is slotted. Access is extremely limited. Loosen both screws from the front of control module processor. See Figure. Remove the screws from the rear of control module processor. Remove the control module processor.
