Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the A/C compressor control relay (13) into the electrical center.

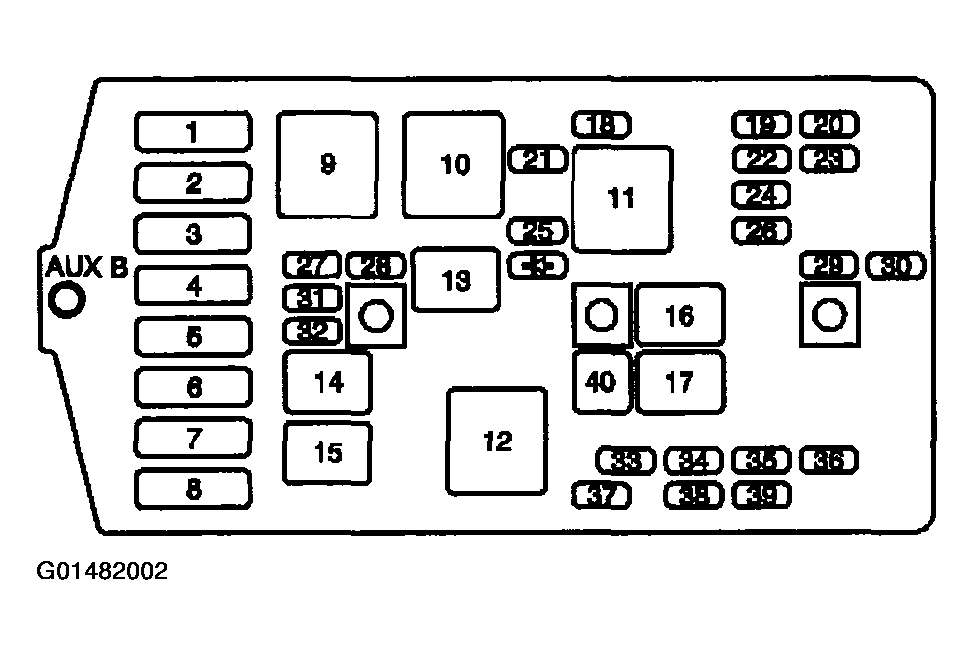

    Fig 1: Identifying A/C Compressor Control Relay
    G01482002Courtesy of GENERAL MOTORS CORP.
  2. Install the underhood relay cover (2).
  3. Install the underhood relay center knob (1).

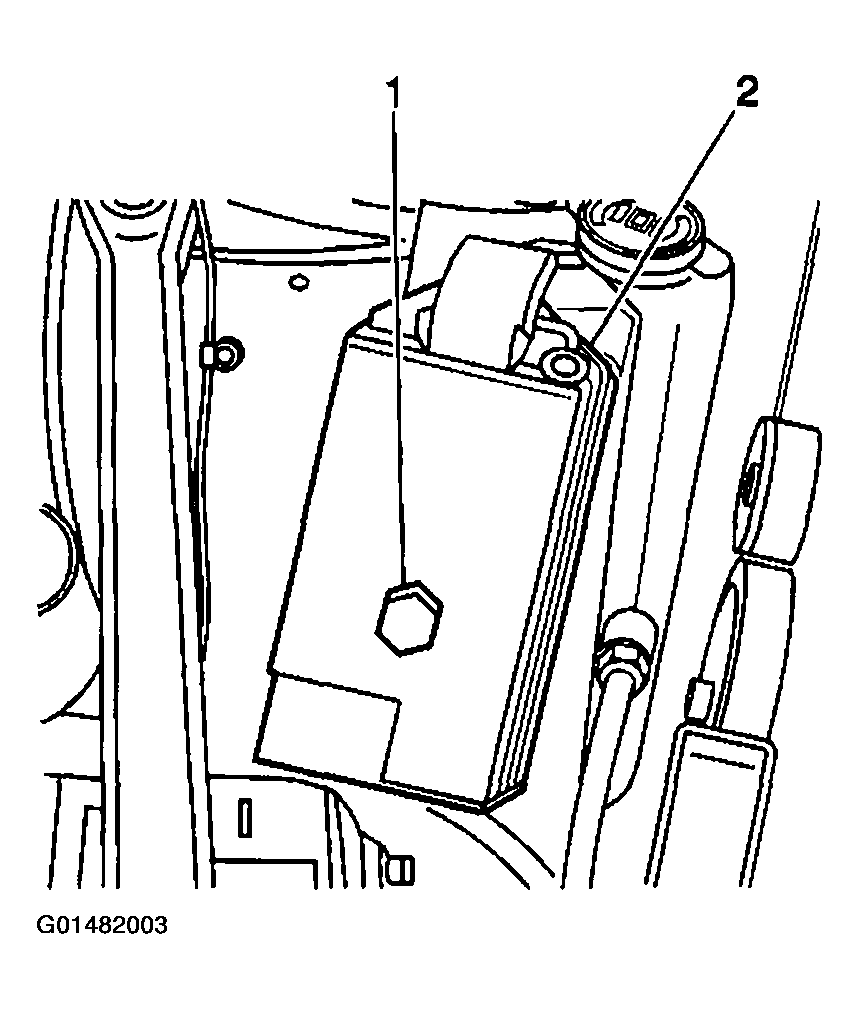

Fig 2: Installing Underhood Relay Center Knob & Relay Cover
G01482003Courtesy of GENERAL MOTORS CORP.
