Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the knuckle to the vehicle.
    NOTE: FASTENER NOTICE
  2. Install the bolts and nuts attaching the strut to the knuckle.

    Tighten

    Tighten the strut to knuckle bolts to 122 N.m (90 lb ft).

  3. Install the outer tie rod to the steering knuckle. Refer to TIE ROD END REPLACEMENT - OUTER in Power Steering System.
  4. Connect the front lower control arm ball stud to the knuckle. Refer to Lower Control Arm Replacement
  5. Install the front wheel drive shaft bearing. Refer to Wheel Bearing/Hub Replacement - Front
  6. Lower the vehicle.
  7. Inspect the front wheel alignment and adjust if necessary.

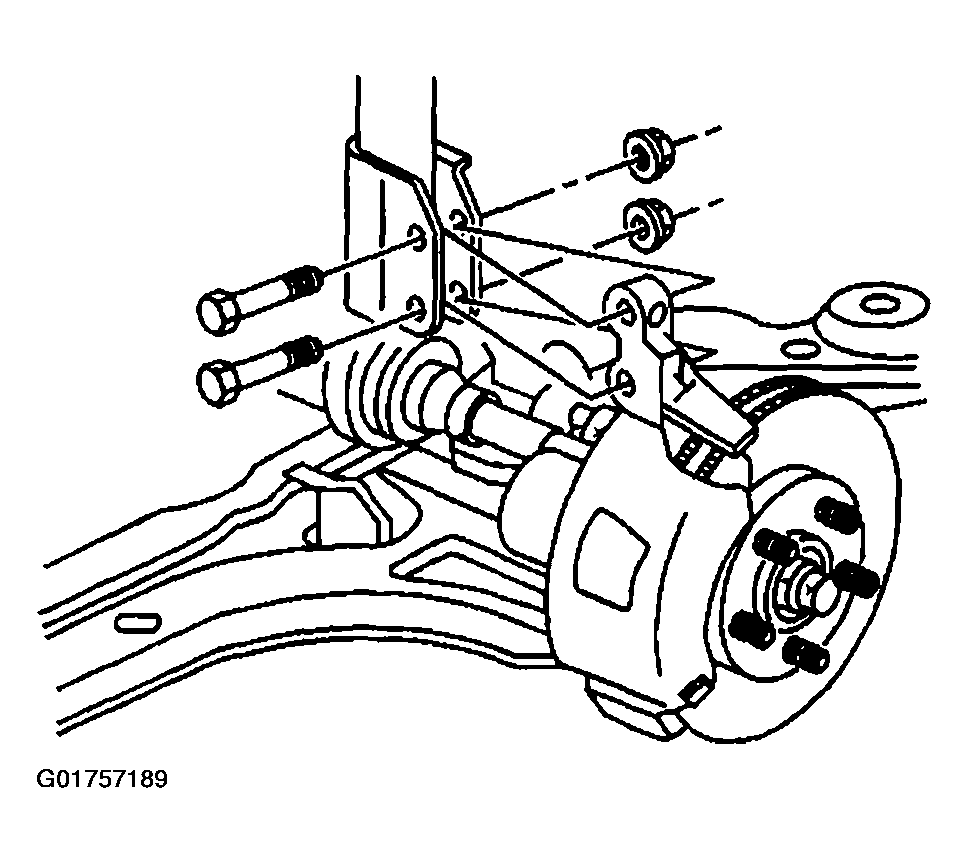

    Fig 1: Installing Bolts And Nuts Attaching Strut To Knuckle
    G01757189Courtesy of GENERAL MOTORS CORP.
