Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

2. Listen for an audible click when the headlamp relay operates. Command both the ON and OFF states. Repeat the commands as necessary.
3. Tests for voltage at the coil side of the headlamp relay. The park fuse supplies power to the coil side of the headlamp relay.
4. Verifies that the BCM is providing ground to the headlamp relay.
5. Tests if ground is constantly being applied to the headlamp relay.

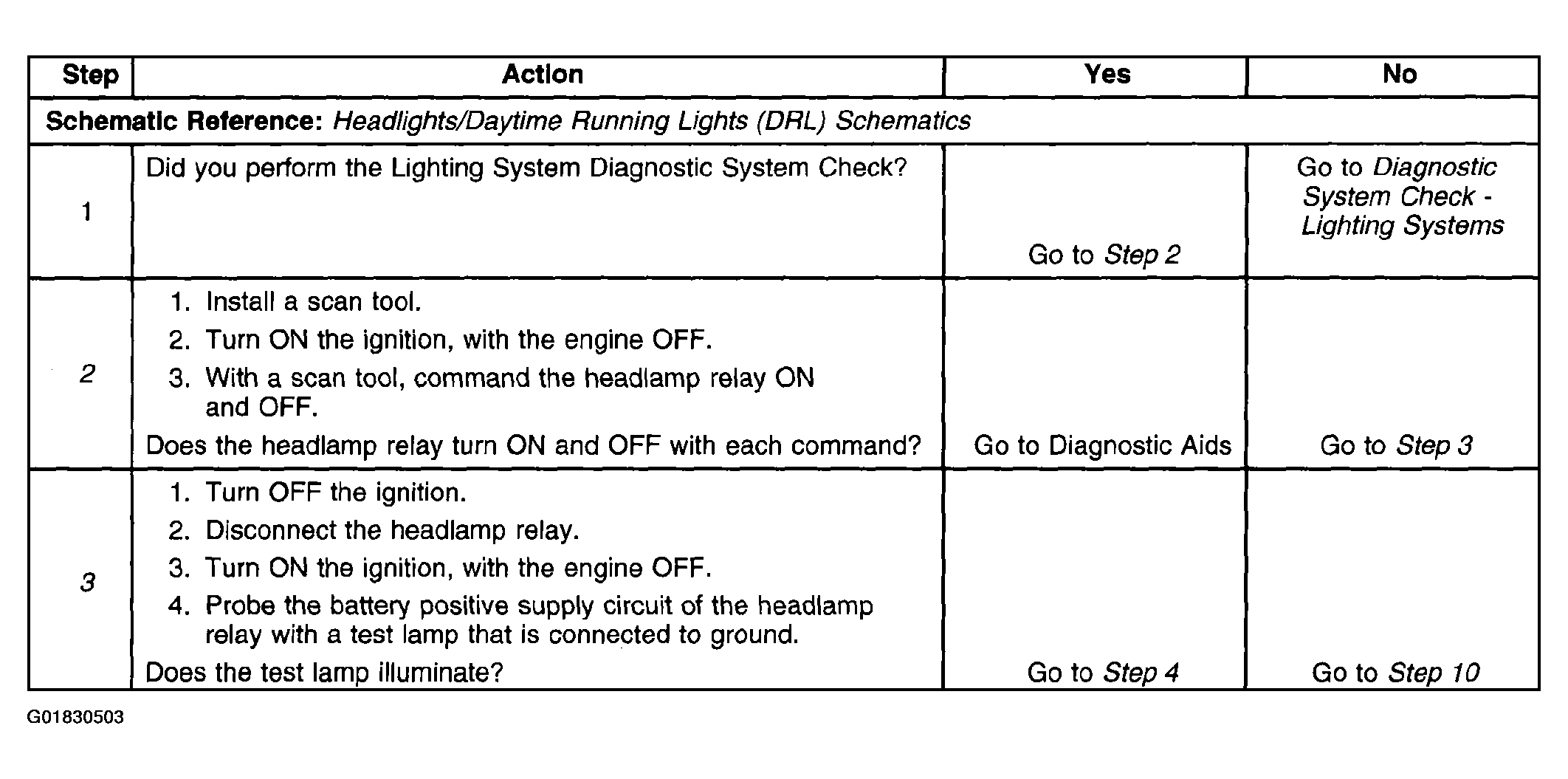

Fig 1: DTC B2577 Diagnostic Table (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

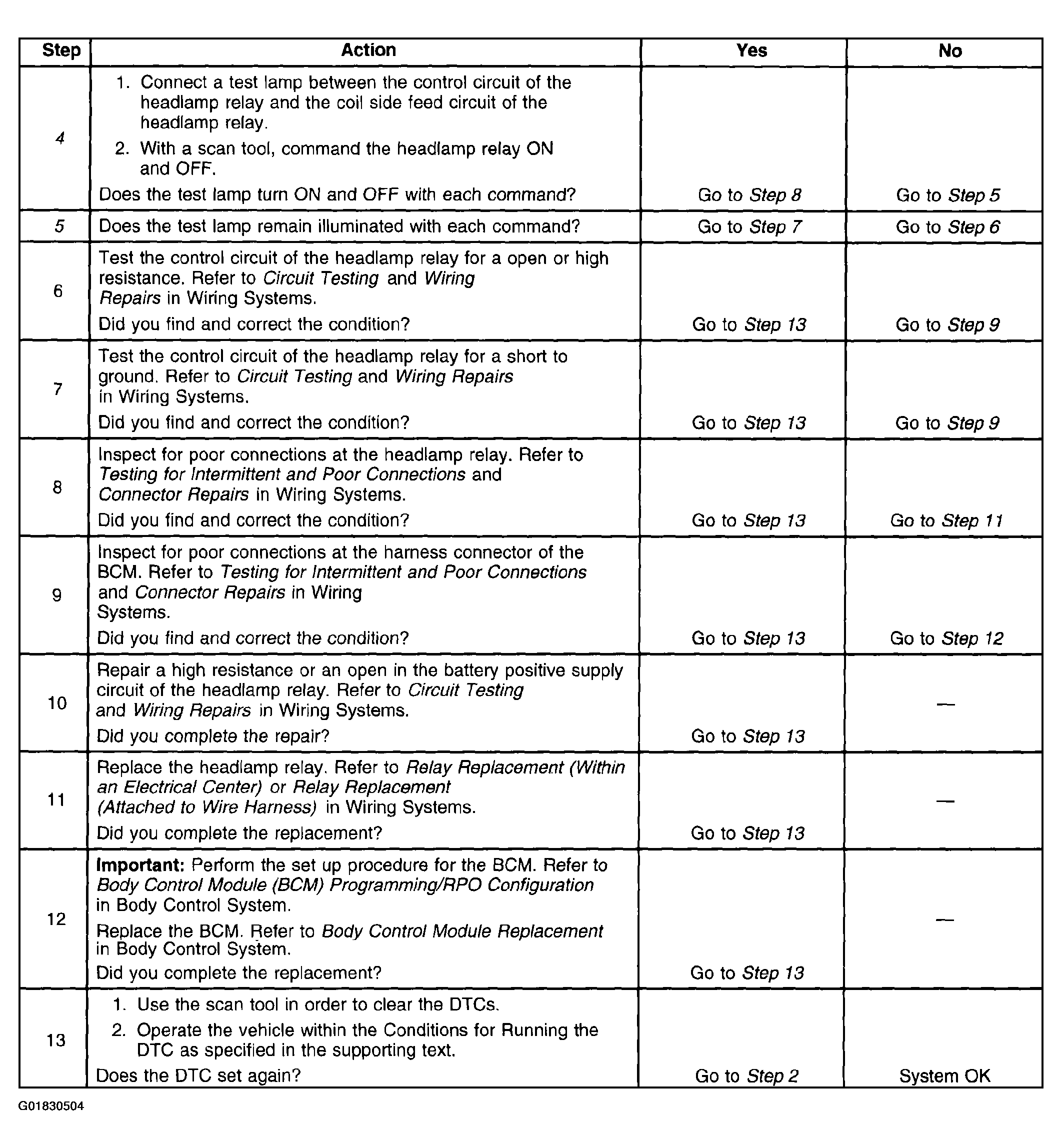

Fig 2: DTC B2577 Diagnostic Table (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
