Power/Grounds, Serial Data and Variable Effort Actuator

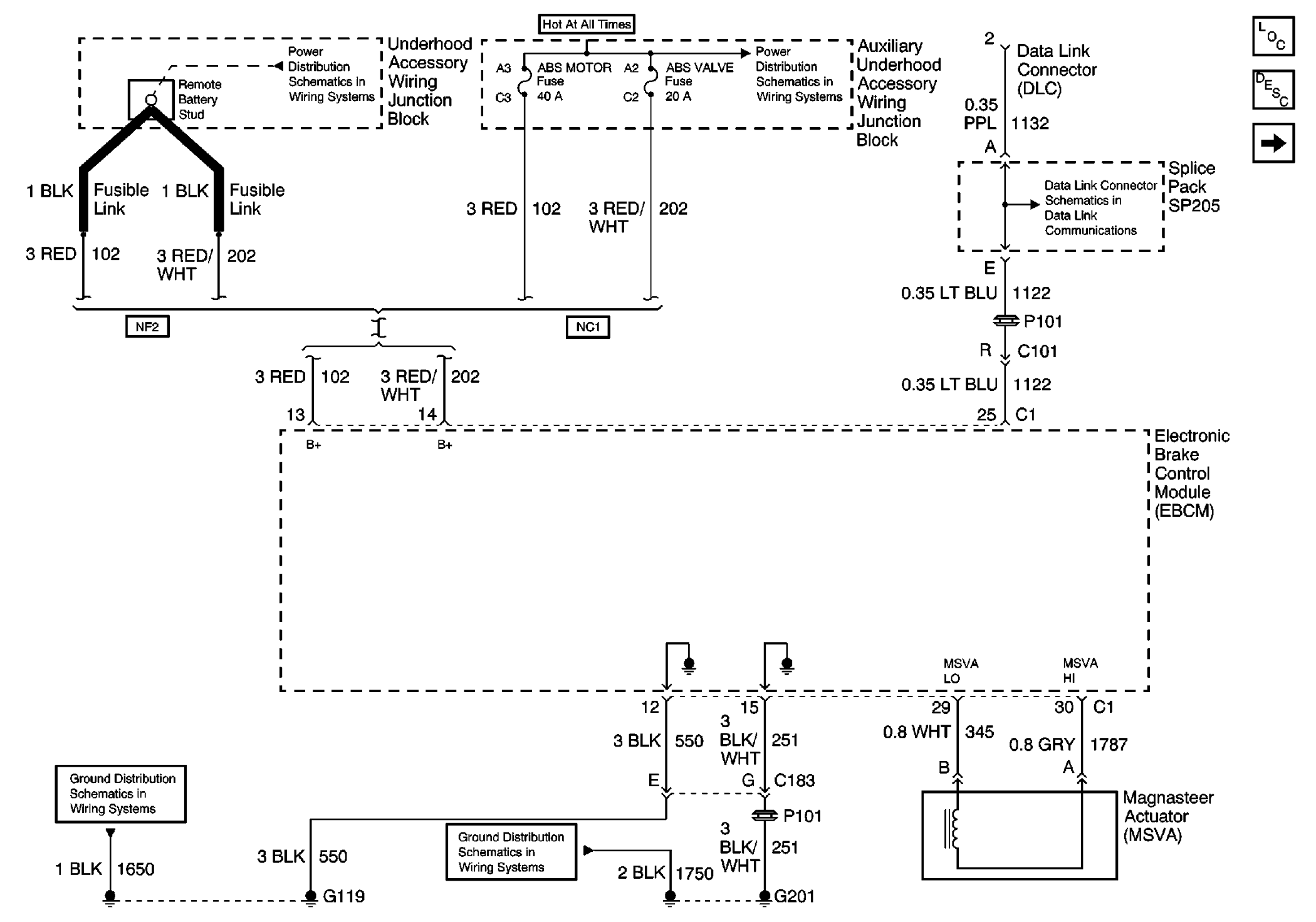

Fig 1: Power/Grounds Wiring Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
