Console Trim Plate (Century & Regal): Installation

  1. Connect the electrical connectors to the traction control switch.
  2. Position the front floor console trim plate tabs to the retainers in the front floor console.
  3. Install the front floor console trim plate pressing down until the tabs are fully seated. See Fig 1 .

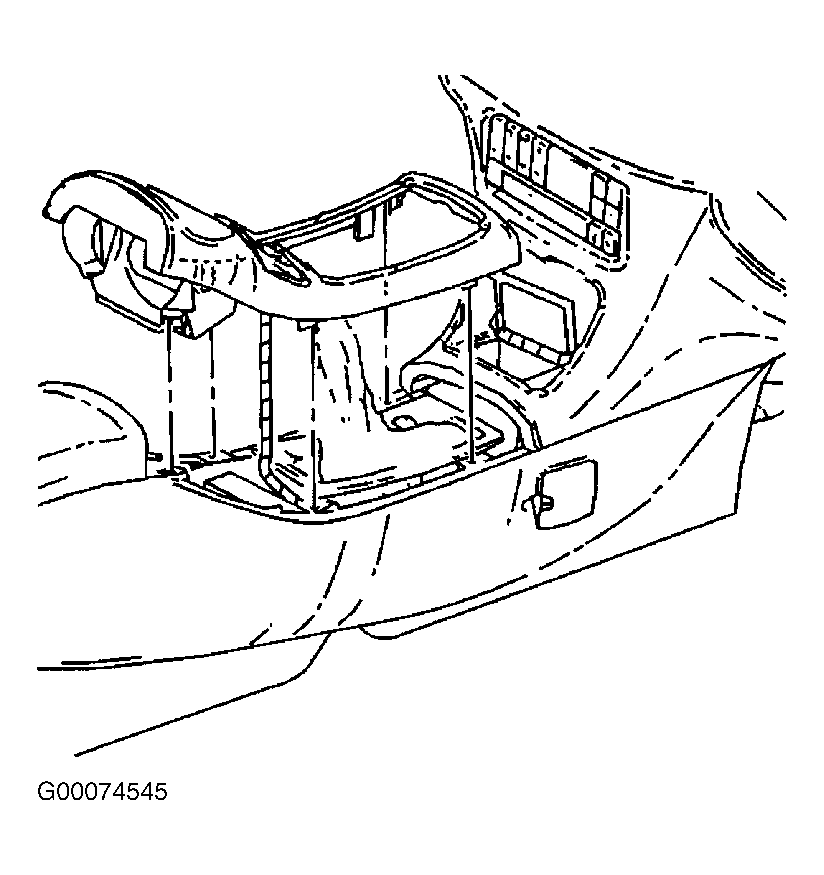

Fig 1: Removing & Installing Console Trim Plate
G00074545Courtesy of GENERAL MOTORS CORP.
