Wiper/Washer System Connector End Views

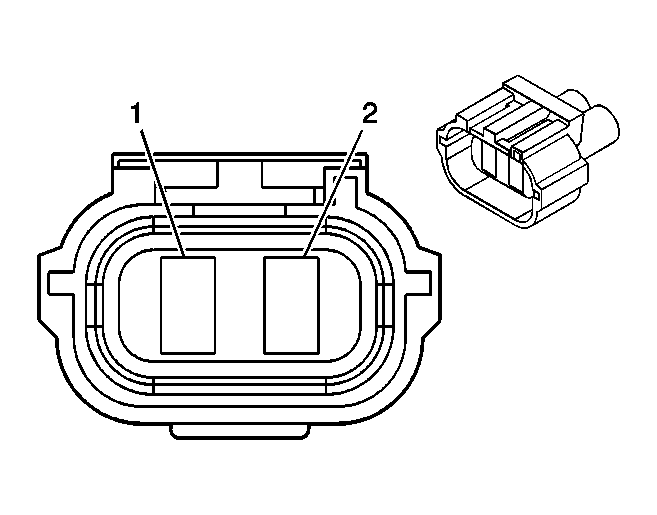

Headlamp Washer Fluid Pump Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15324474 2-Way F Sealed (BLK)
Pin	Wire Color	Circuit No.	Function
1	BLK	250	Ground
2	PPL	1197	Headlamp Washer Pump Supply Voltage

Outside Moisture Sensor Connector End View (CE1)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15324524 3-Way F MQS (BLK)
Pin	Wire Color	Circuit No.	Function
1	YEL	443	Accessory Voltage
2	BLK	1350	Ground
3	BLK	481	Outside Moisture Sensor Signal 1

Rear Window Wiper/Washer Switch Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12059800 5-Way F Metri-Pack 150 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	WHT	2283	Rear Wiper/Washer Switch Supply Voltage
B	BLK	2250	Ground
C	BRN/WHT	230	Instrument Panel Lamps Dimming Control
D	-	-	Not Used
E	GRY	391	Rear Window Wiper Switch Signal

Window Washer Pump Connector End View - Rear

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12020599 2-Way F Metri-Pack-280 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	250	Ground
B	DK GRN	392	Rear Window Washer Pump Supply Voltage

Window Wiper Motor Connector End View - Rear

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12041429 5-Way F Metri-Pack 280 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	1550	Ground
B	-	-	Not Used
C	ORN	3640	Battery Positive Voltage (Body Type VIN 3)
C	ORN	4440	Battery Positive Voltage (Body Type VIN 6)
D	-	-	Not Used
E	DK GRN	2269	Rear Window Motor Speed Signal

Windshield Washer Fluid Level Switch Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15336024 2-Way F GT 150 Sealed (BLK)
Pin	Wire Color	Circuit No.	Function
1	BLK/WHT	174	Low Washer Fluid Indicator Signal
2	BLK	250	Ground

Windshield Washer Fluid Pump Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052641 2-Way F Metri-Pack 150 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	RED	228	Windshield Washer Pump Supply Voltage
B	BLK	250	Ground

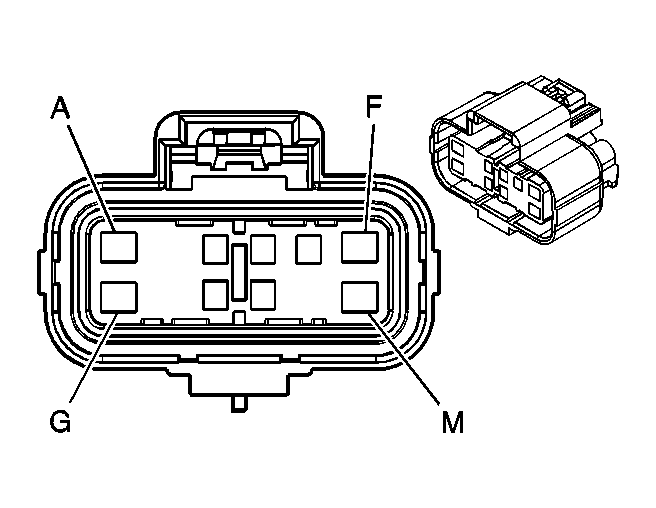

Windshield Wiper Motor Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15305056 9-Way F GT 150 280 Sealed 4.0 5.2 (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	481	Outside Moisture Sensor Signal 1
C	PNK	94	Windshield Washer Switch Signal
D	DK BLU	477	Windshield Wiper Switch High Signal
E	GRY	478	Windshield Wiper Switch Supply Voltage
F	YEL	143	Accessory Voltage
G	DK GRN	113	Windshield Wiper Switch Signal 2
J	ORN	2268	Windshield Washer Relay Control
K	-	-	Not Used
M	BLK	850	Ground

Windshield Wiper Washer Switch Connector End View (Multifunction Switch C3)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15339058 7-Way F MP 150 (GRY)
Pin	Wire Color	Circuit No.	Function
G	-	-	Not Used
H	PNK	94	Windshield Wiper Switch Power
J	GRY	478	Windshield Wiper Position Signal
K	DK BLU/WHT	477	Windshield Wiper Switch High Signal
L-N	-	-	Not Used
