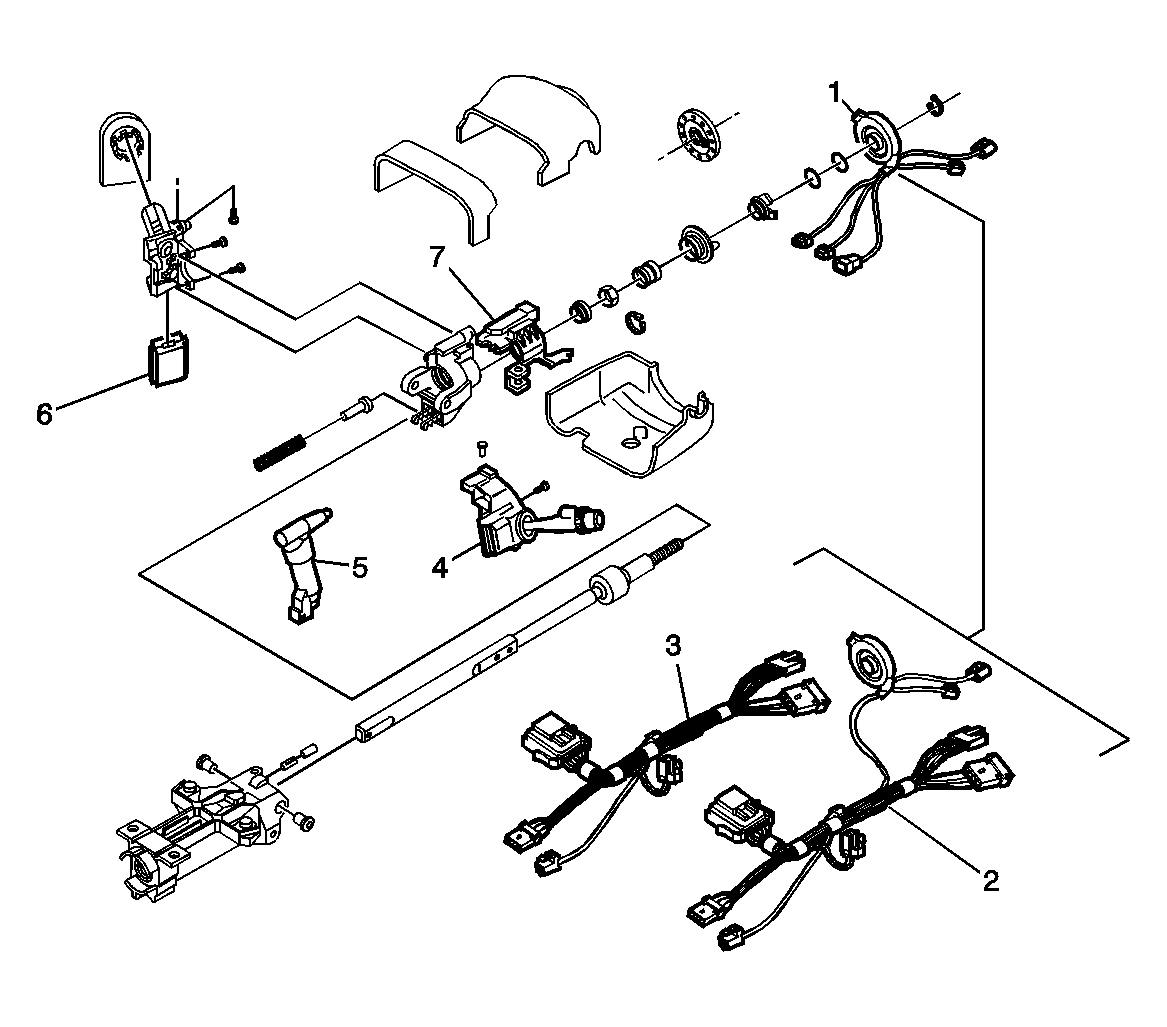

Steering Wheel and Column Component Views
| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Steering Wheel Module Coil |
| 2 | Coil Wire Harness Assembly (Export) |
| 3 | Coil Wire Harness Assembly |
| 4 | Multifunction Switch |
| 5 | Theft Deterrent Control Module Electric Park Lock |
| 6 | Ignition and Key Alarm Switch Assembly |
| 7 | Hazard Signal Switch Housing |
| Callout | Component Name |
|---|---|
| 1 | Ignition Switch |
| 2 | Passlock Sensor |
| 3 | Ignition Key Alarm Switch |
| 4 | Ignition Lock Cylinder Control Actuator |
| 5 | Steering Column |
