Engine Block - Bottom View

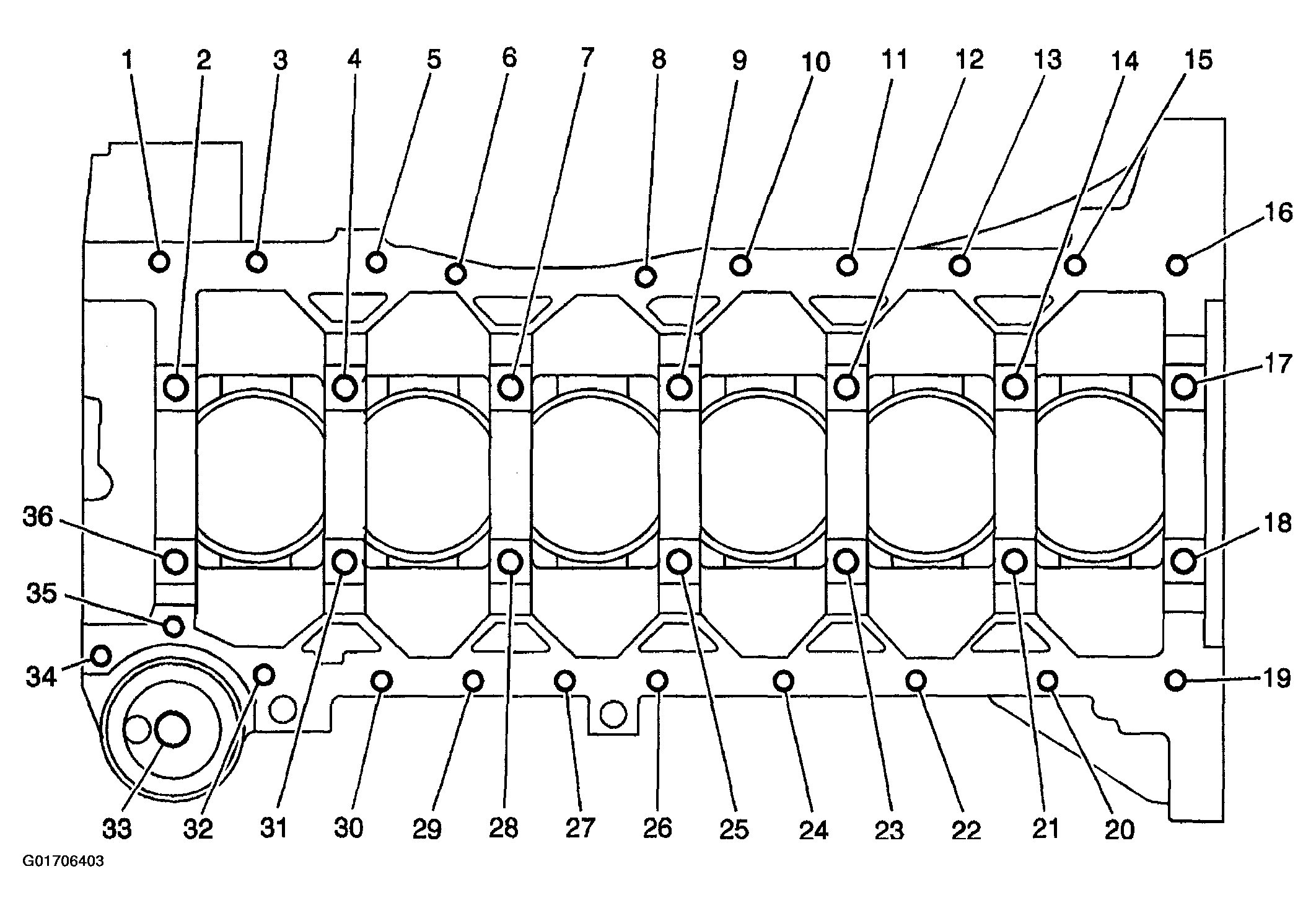

Fig 1: Engine Block - Bottom View
G01706403Courtesy of GENERAL MOTORS CORP.

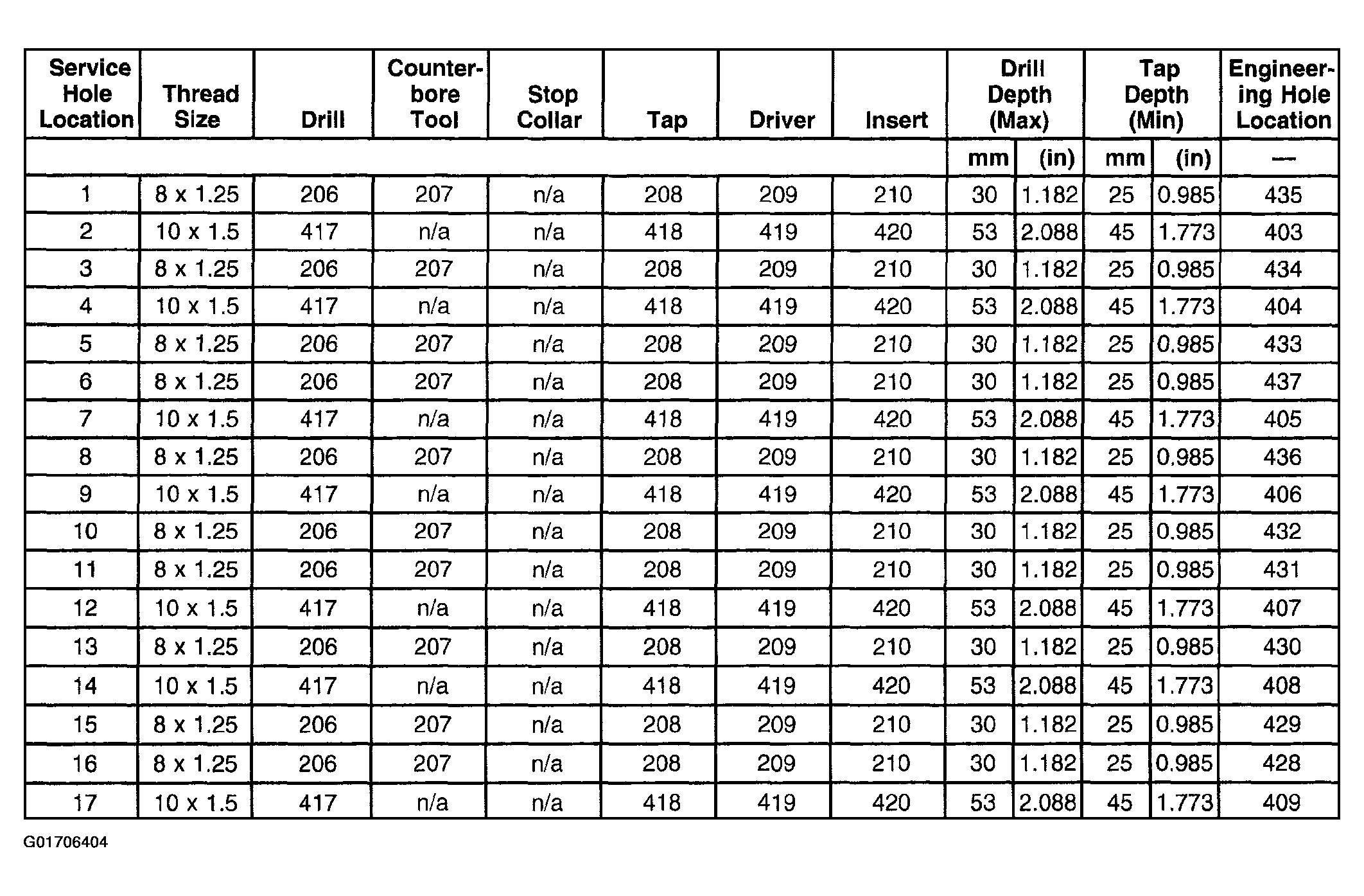

Fig 2: Engine Block - Bottom View Service Hole Specifications (1 Of 2)
G01706404Courtesy of GENERAL MOTORS CORP.

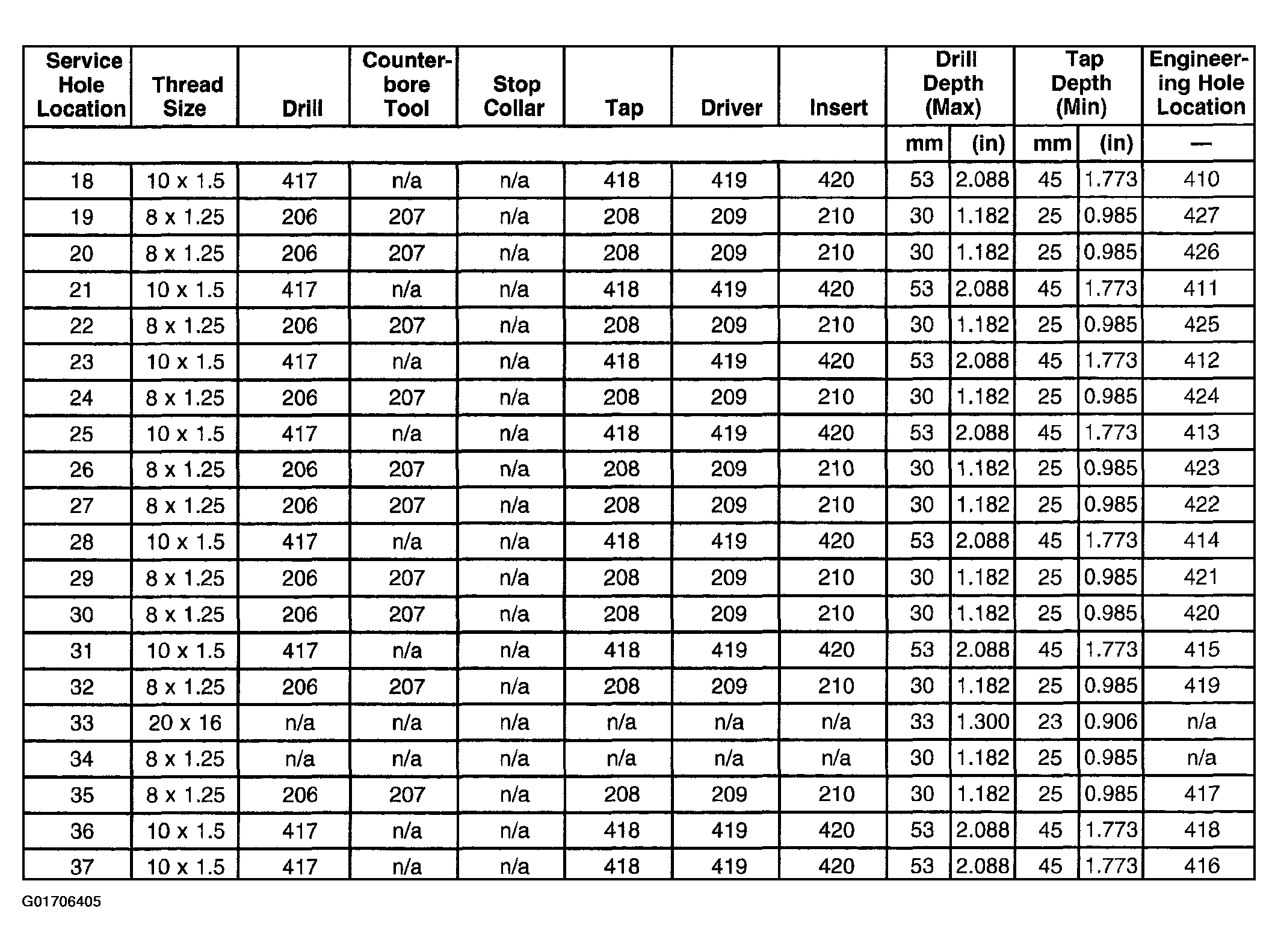

Fig 3: Engine Block - Bottom View Service Hole Specifications (2 Of 2)
G01706405Courtesy of GENERAL MOTORS CORP.
