Transfer Case Shift Control Module Connector End View - C1 (1 Of 2)

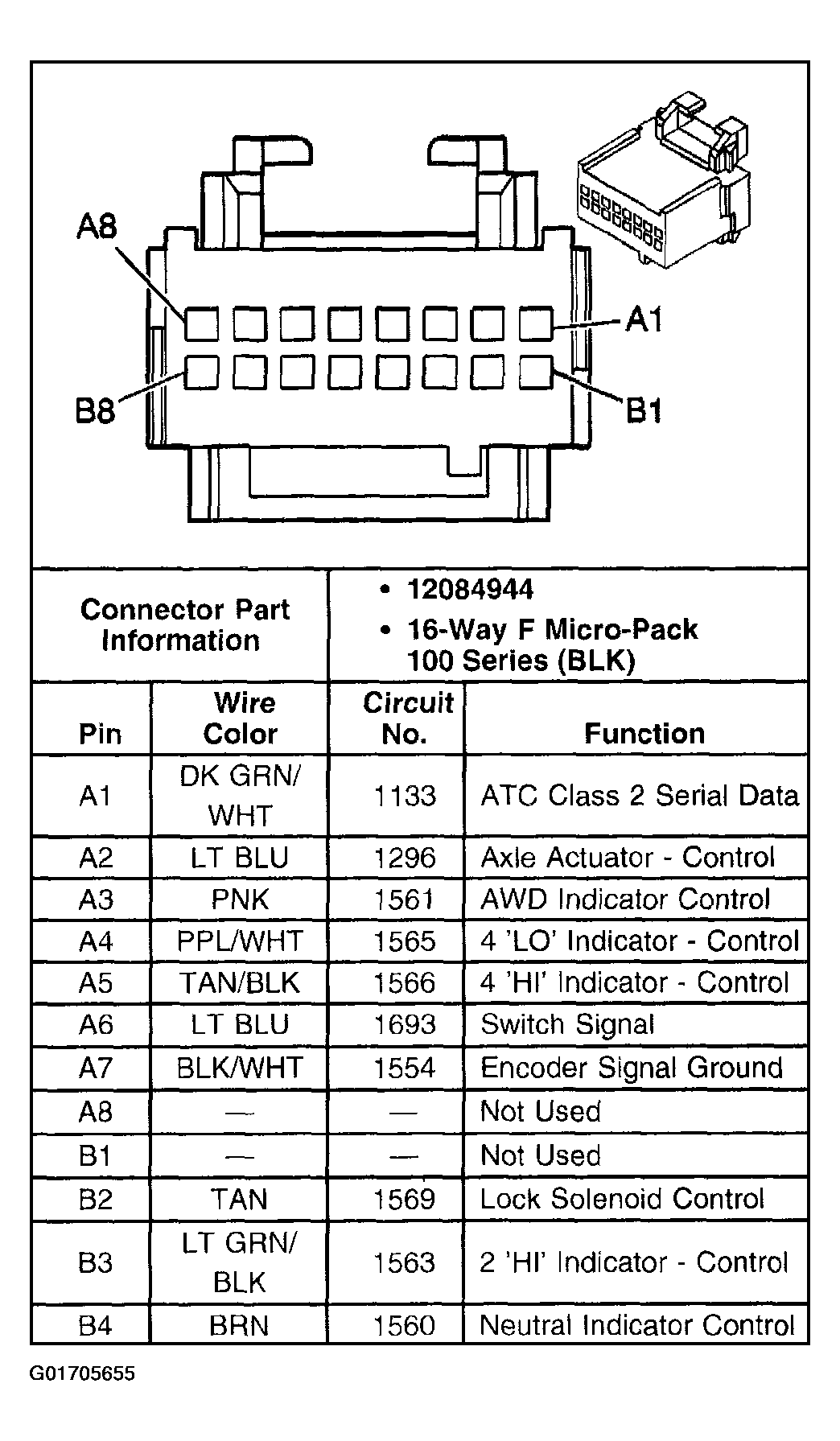

Fig 1: Transfer Case Shift Control Module - C1 (1 Of 2)
G01705655Courtesy of GENERAL MOTORS CORP.
