Installation Procedure

IMPORTANT: The following service procedure is more easily performed if the mounting bracket and the electrical connectors are installed on the transfer case module before installing the transfer case module to the central support bracket.
  1. Install the mounting bracket to the transfer case control module.

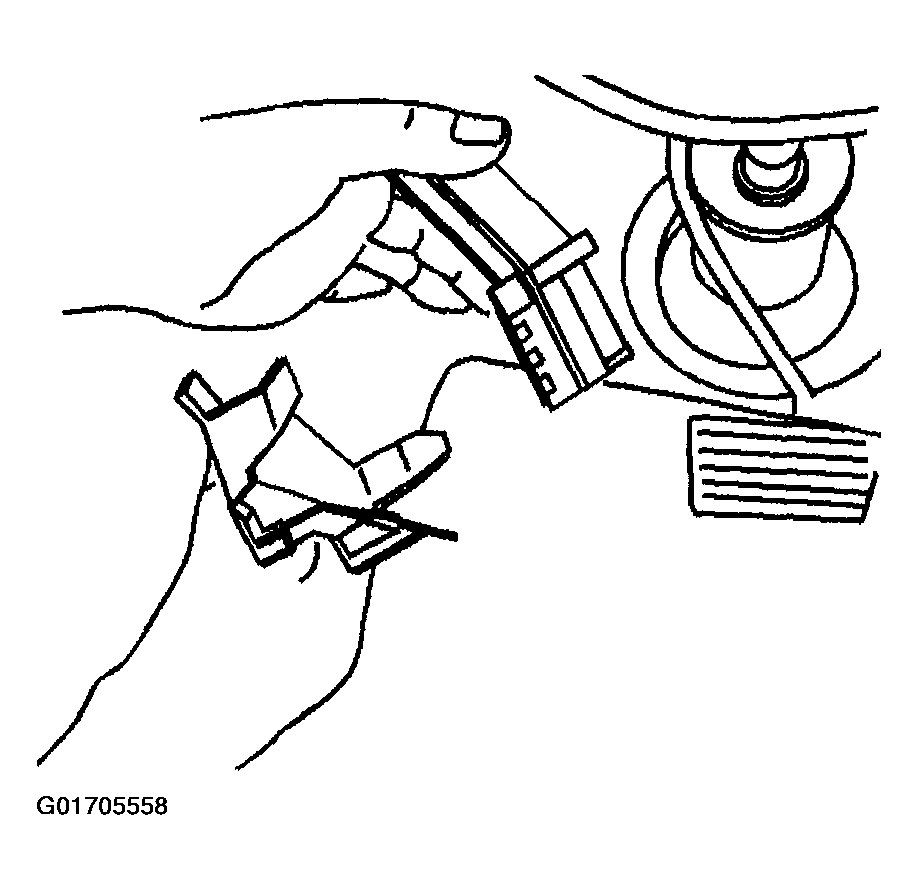

    2. Fig 1: Installing Mounting Bracket To Transfer Case Control Module
    G01705558Courtesy of GENERAL MOTORS CORP.
  2. Install the electrical connectors to the transfer case control module.
  3. Install the transfer case control module assembly to the center support bracket.

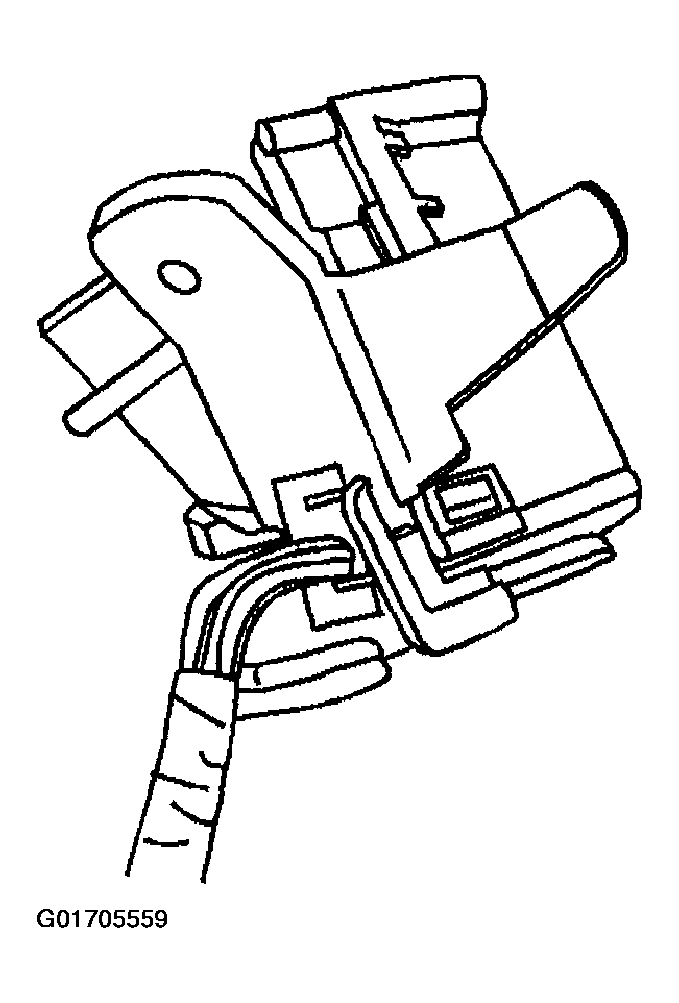

    4. Fig 2: Installing Transfer Case Control Module Assembly To Center Support Bracket
    G01705559Courtesy of GENERAL MOTORS CORP.
  4. Install the left hand heat, vent, and air conditioning vent assembly.

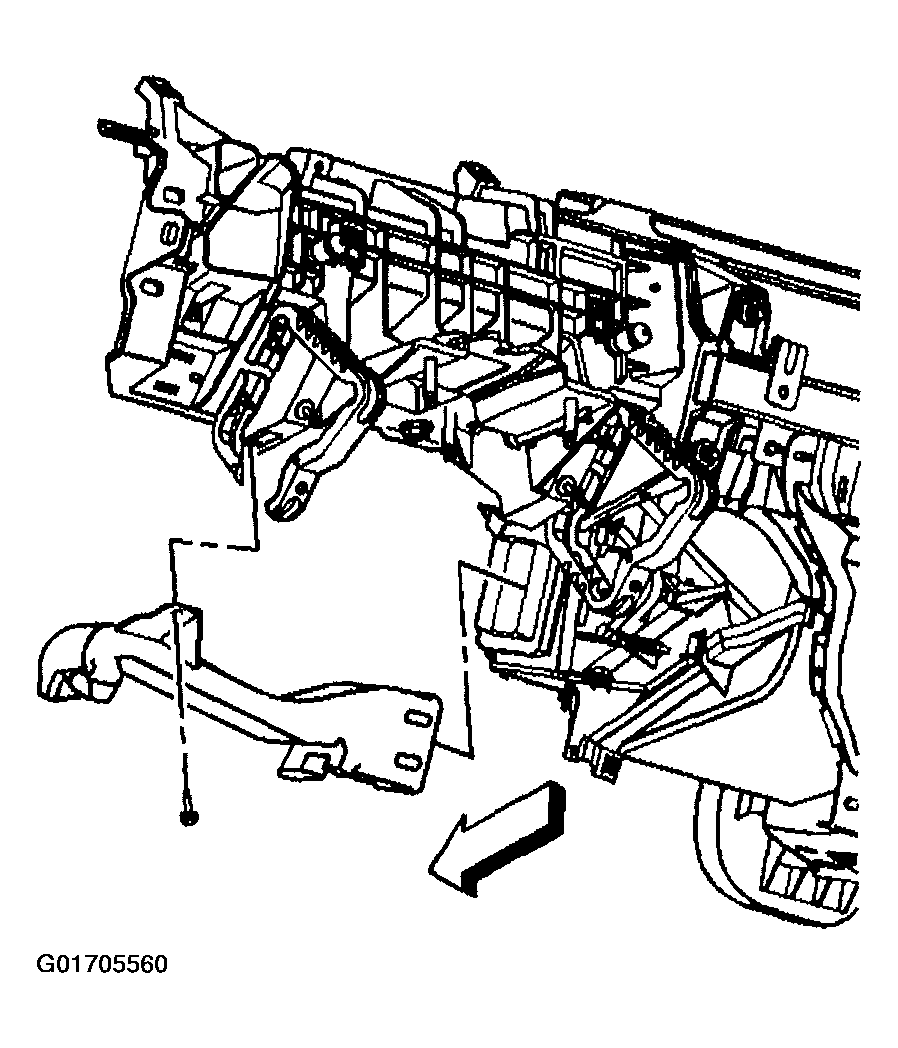

    5. Fig 3: Installing Left Hand Heat And Air Conditioning Vent Assembly
    G01705560Courtesy of GENERAL MOTORS CORP.
  5. Install the lower instrument panel cover.
    6. Fig 4: Installing Lower Instrument Panel Cover
    G01705561Courtesy of GENERAL MOTORS CORP.
  6. Install the knee bolster panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER in Instrument Panel, Gages, and Console.

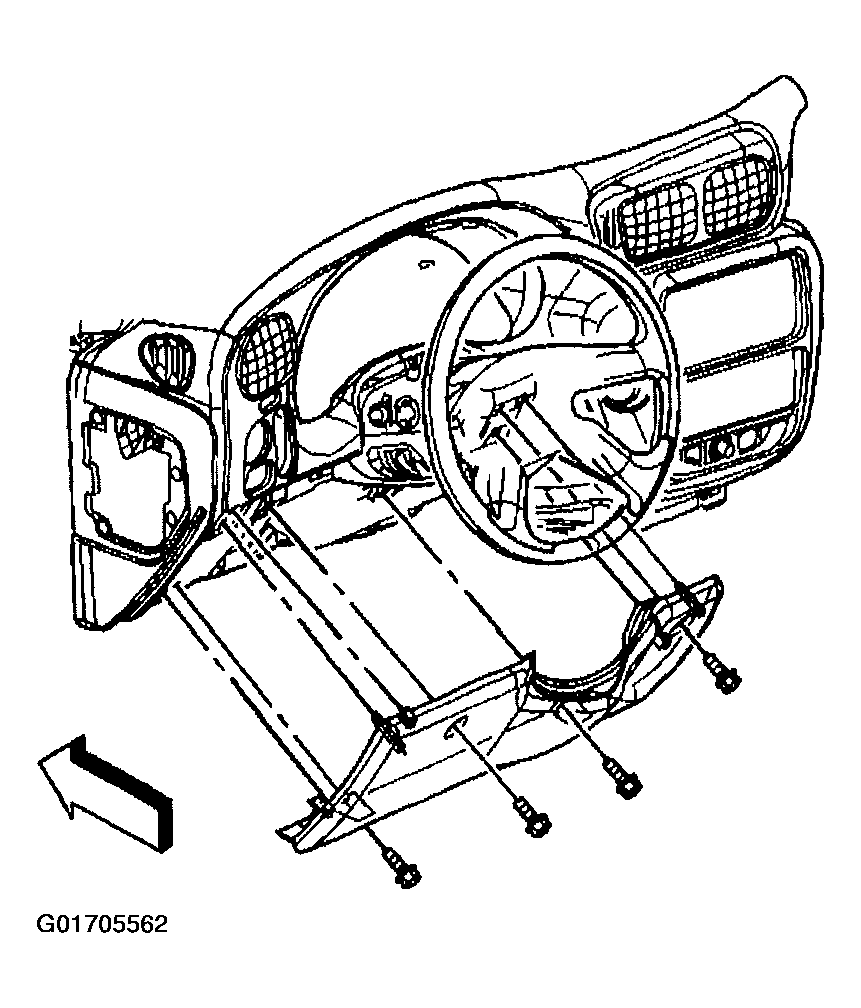

    7. Fig 5: Installing Knee Bolster Panel
    G01705562Courtesy of GENERAL MOTORS CORP.
  7. Install the access panel.

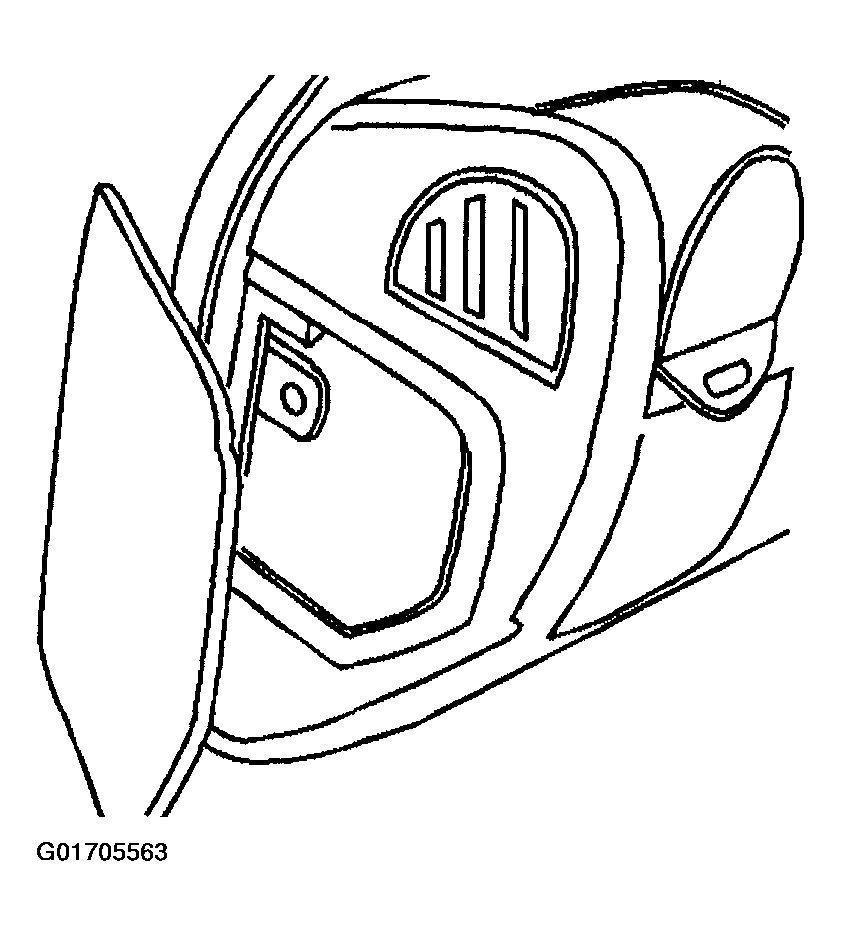

    8. Fig 6: Installing Access Panel
    G01705563Courtesy of GENERAL MOTORS CORP.
