ABS Component Views

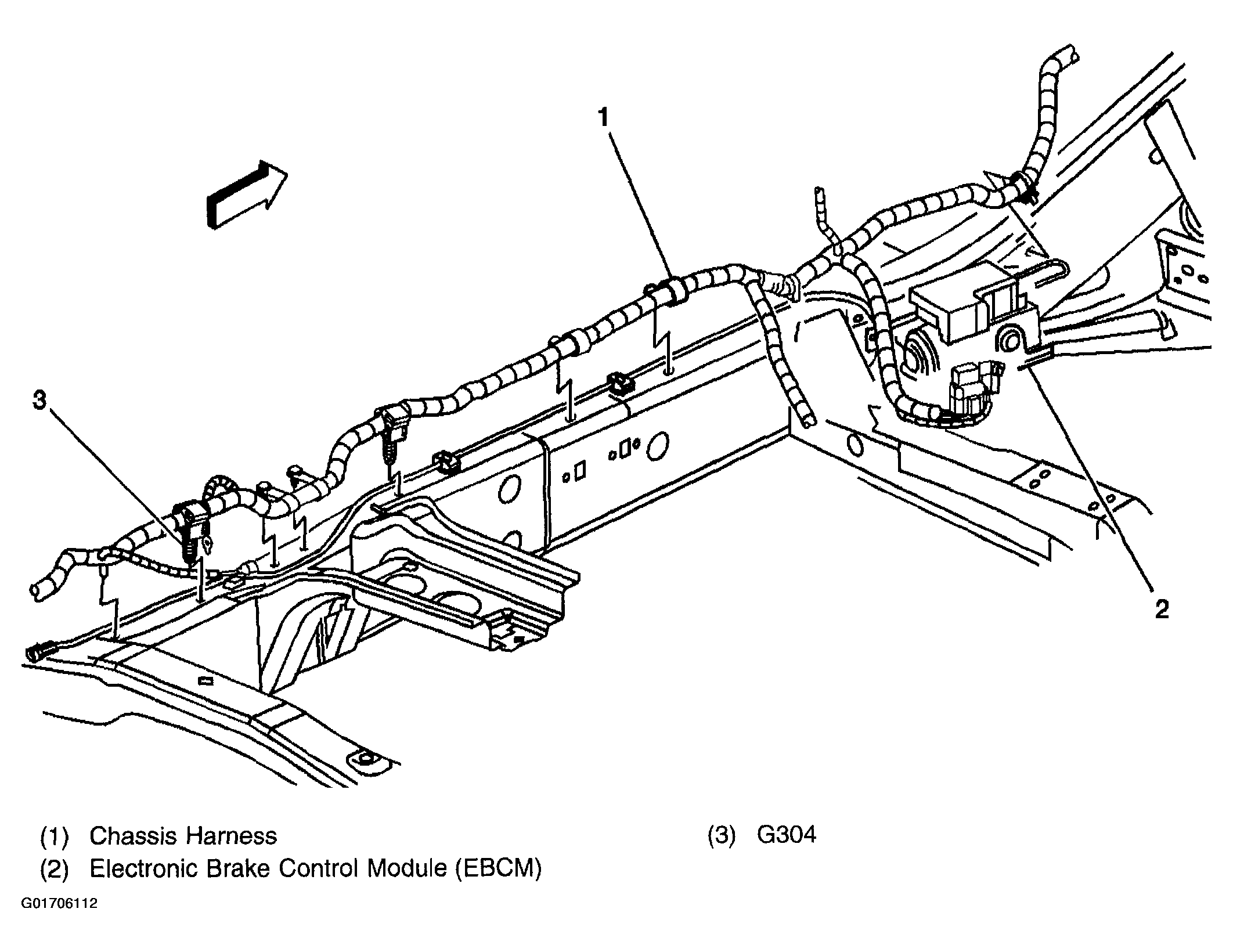

Fig 1: Left Side Frame Rail ABS Component View
G01706112Courtesy of GENERAL MOTORS CORP.

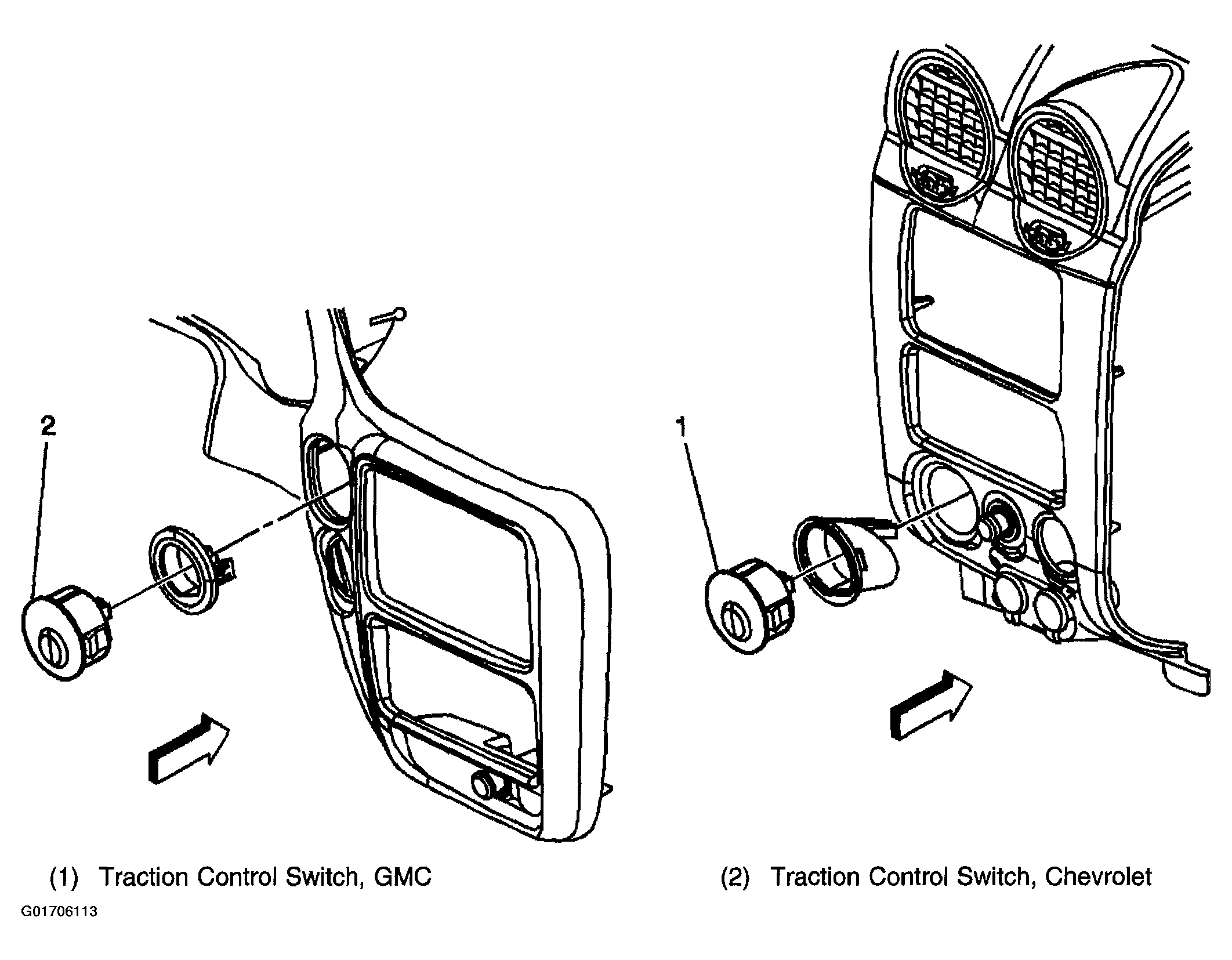

Fig 2: IP Trim Panel ABS Component View
G01706113Courtesy of GENERAL MOTORS CORP.
