STOPLAMP Switch: Installation

Install the electrical connector on the stoplamp switch. Position the stoplamp switch on the pushrod and install on the brake pedal pin. Install the pushrod retainer to the brake pedal pin. See Fig 1 . The retainer will snap into place.

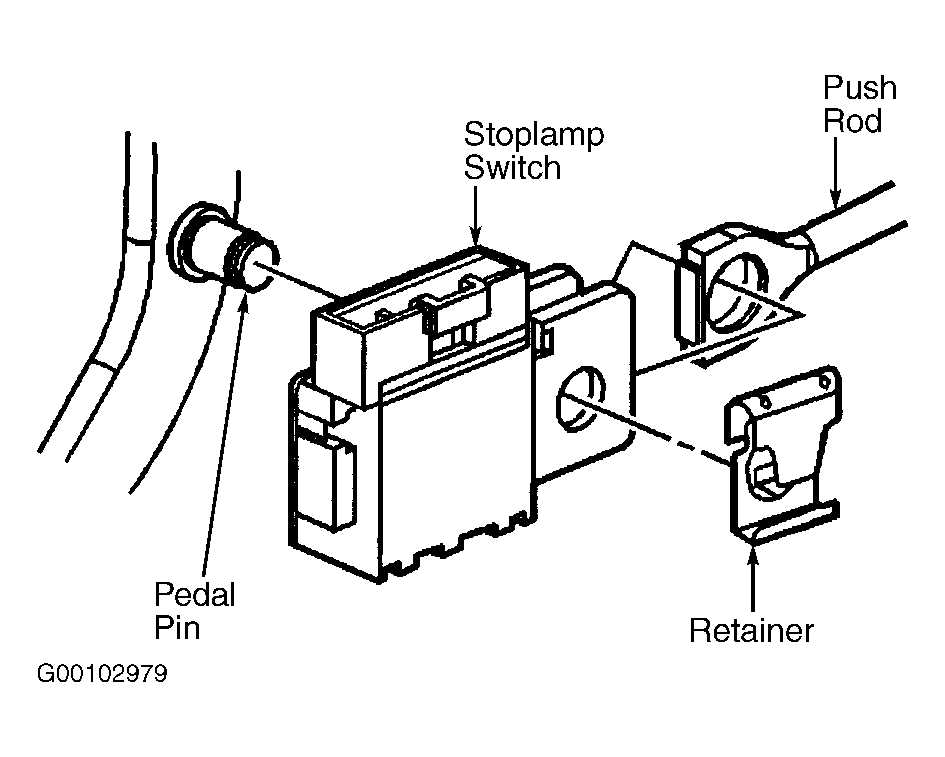

Fig 1: Removing & Installing Stoplamp Switch Assembly

Courtesy of GENERAL MOTORS CORP.
