Cellular Communication Component Views

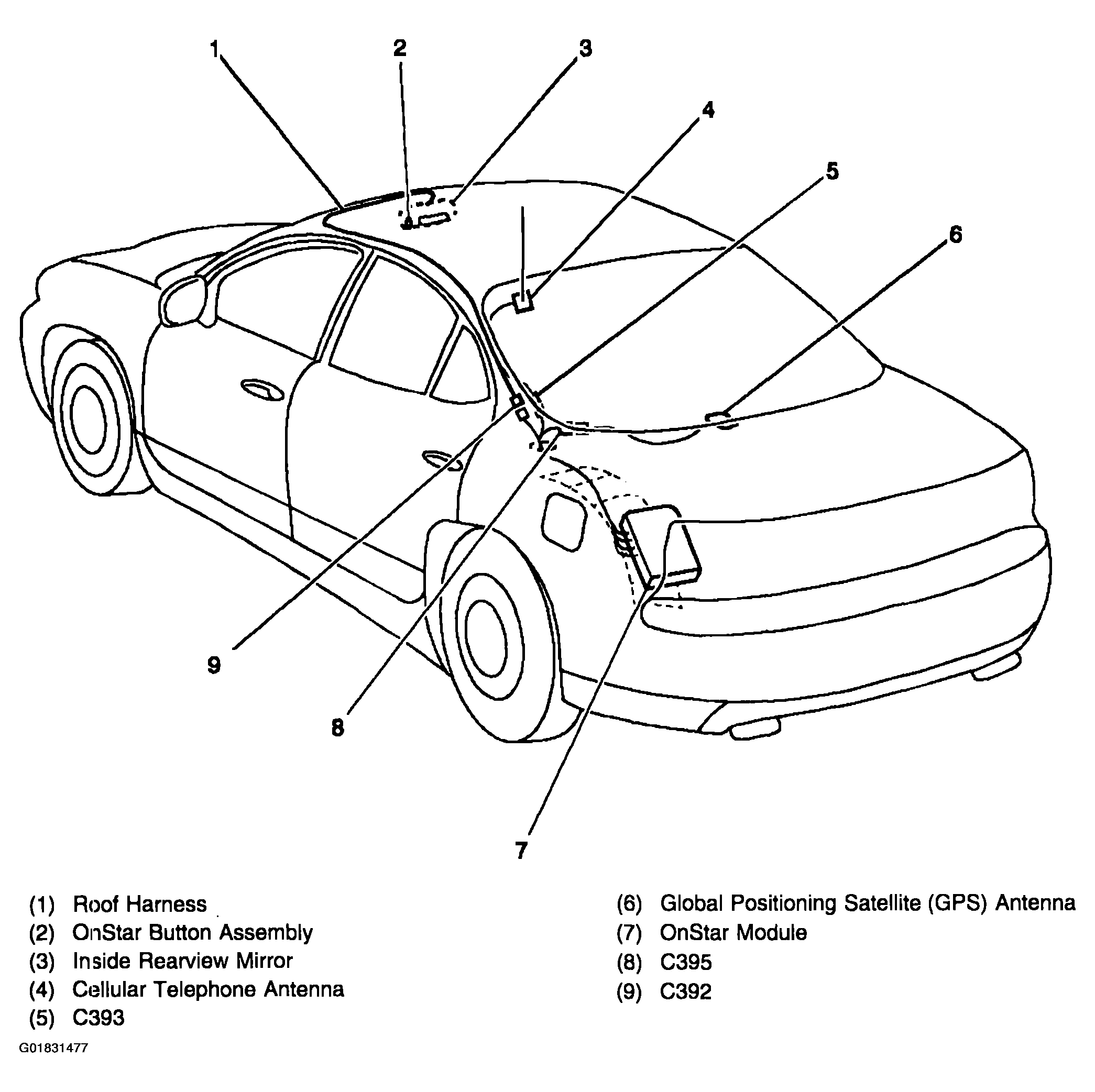

Fig 1: OnStar Subsystem Component View
G01831477Courtesy of GENERAL MOTORS CORP.
Fig 2: Above Left Side Of Package Shelf Component View
G01831478Courtesy of GENERAL MOTORS CORP.

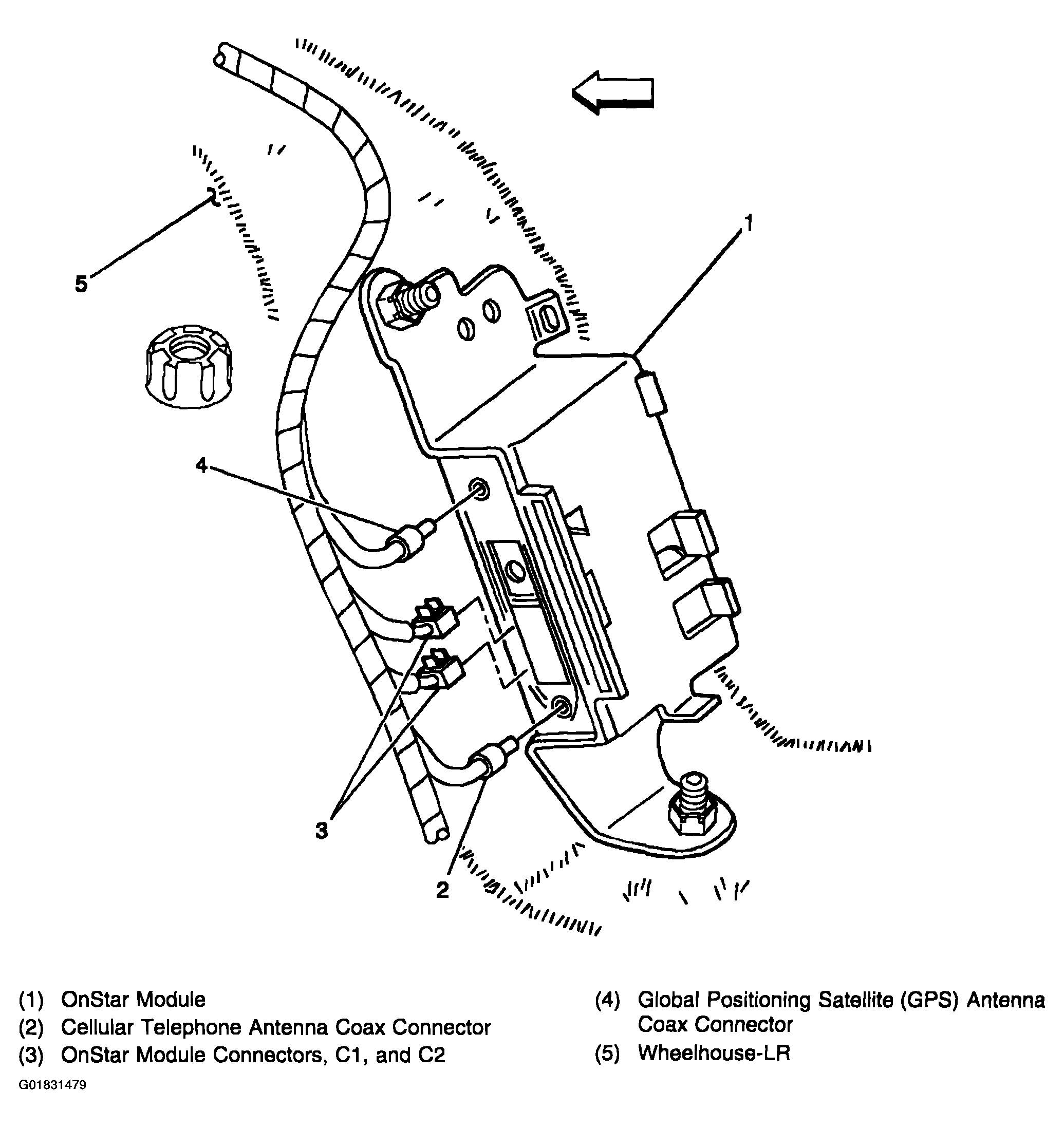

Fig 3: Rear Of Left Rear Wheelhouse Component View
G01831479Courtesy of GENERAL MOTORS CORP.
