Wiper/Washer System Connector End Views

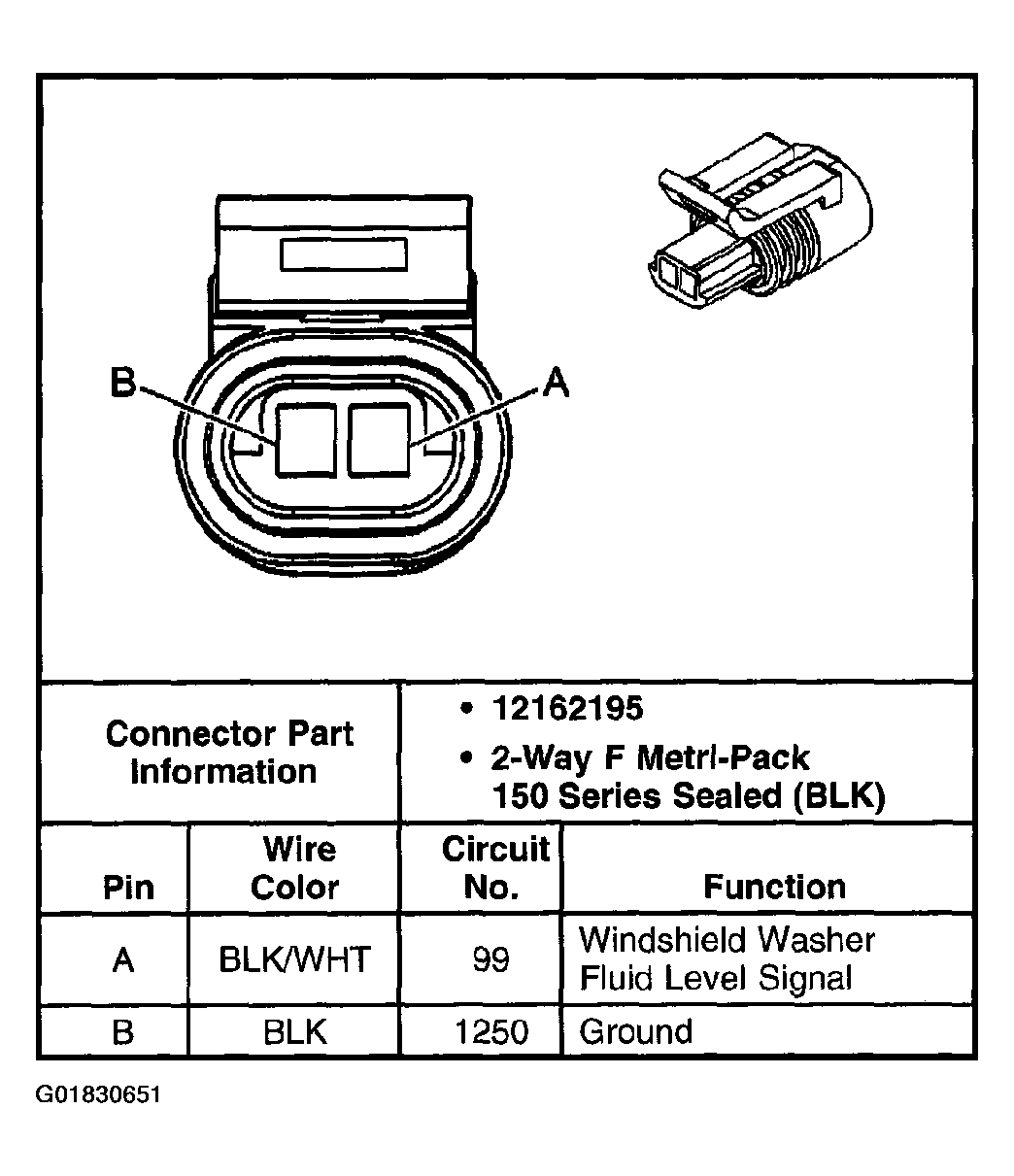

Fig 1: Washer Fluid Level Sensor Connector End View
G01830651Courtesy of GENERAL MOTORS CORP.

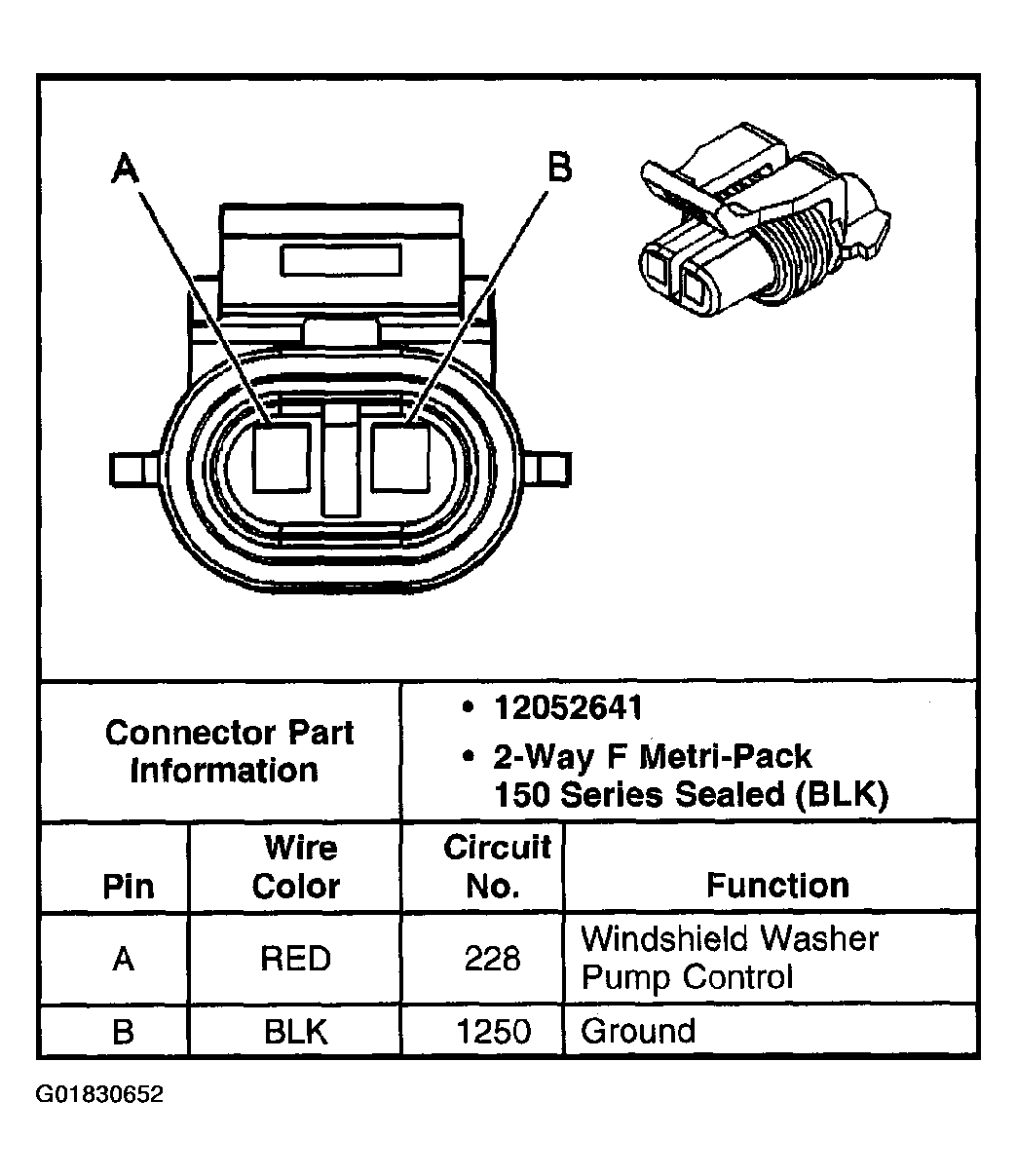

Fig 2: Windshield Washer Fluid Pump Connector End View
G01830652Courtesy of GENERAL MOTORS CORP.

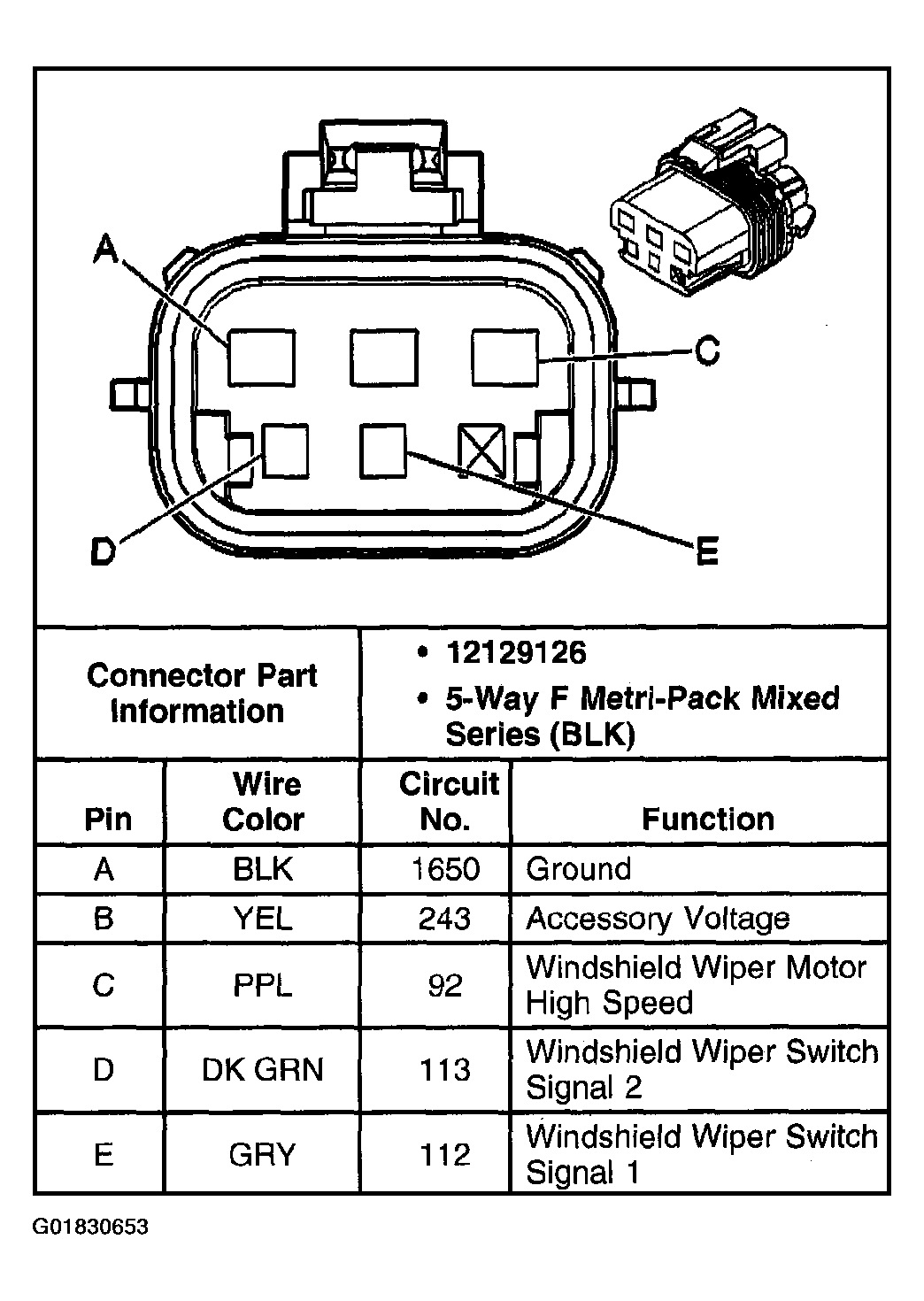

Fig 3: Windshield Wiper Motor Assembly Connector End View
G01830653Courtesy of GENERAL MOTORS CORP.
