Cruise Control Module (CCM) Connector End View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Cruise Control Module (CCM) Connector End View

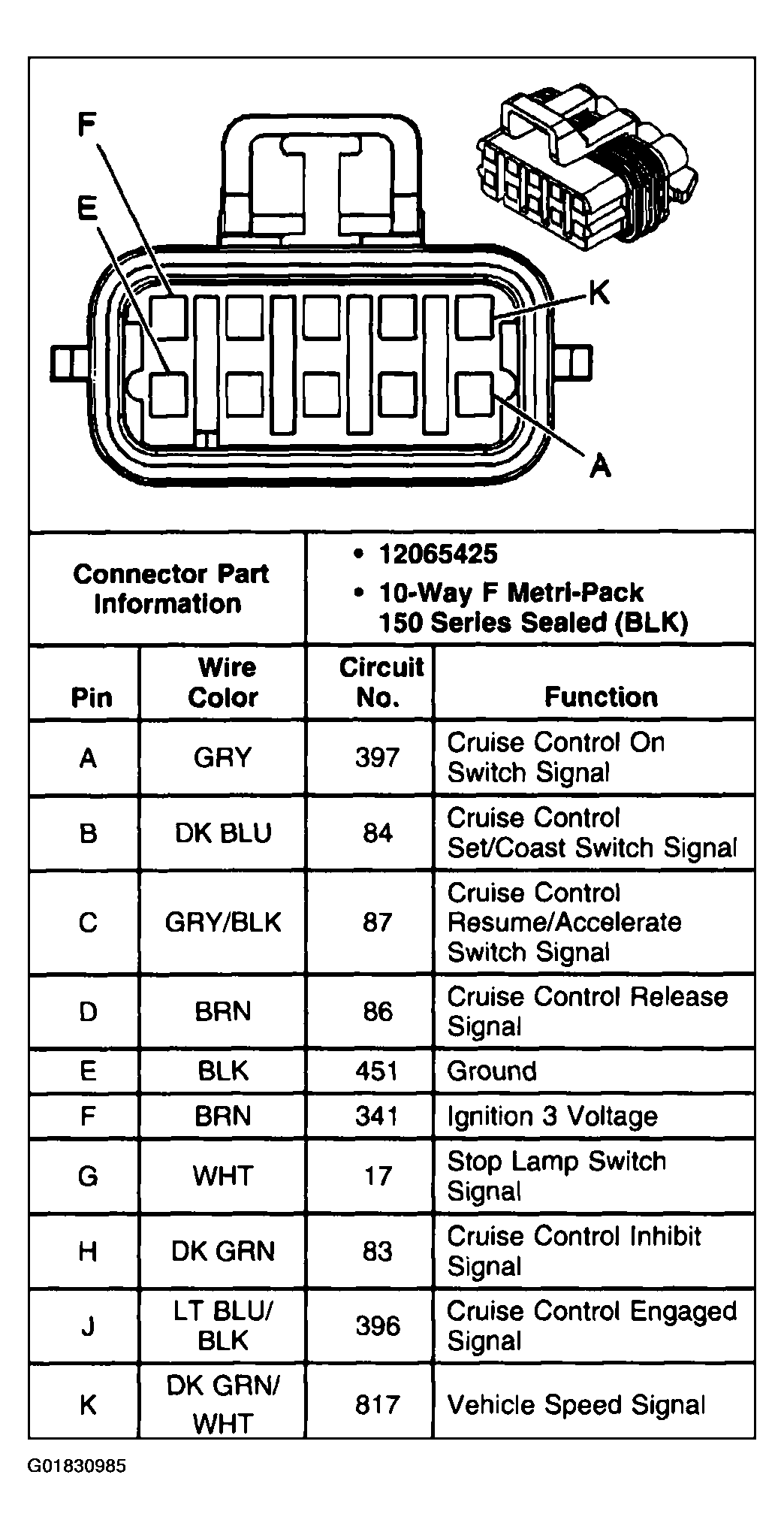

Fig 1: Cruise Control Module (CCM)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
