Steering Column Disassembled View

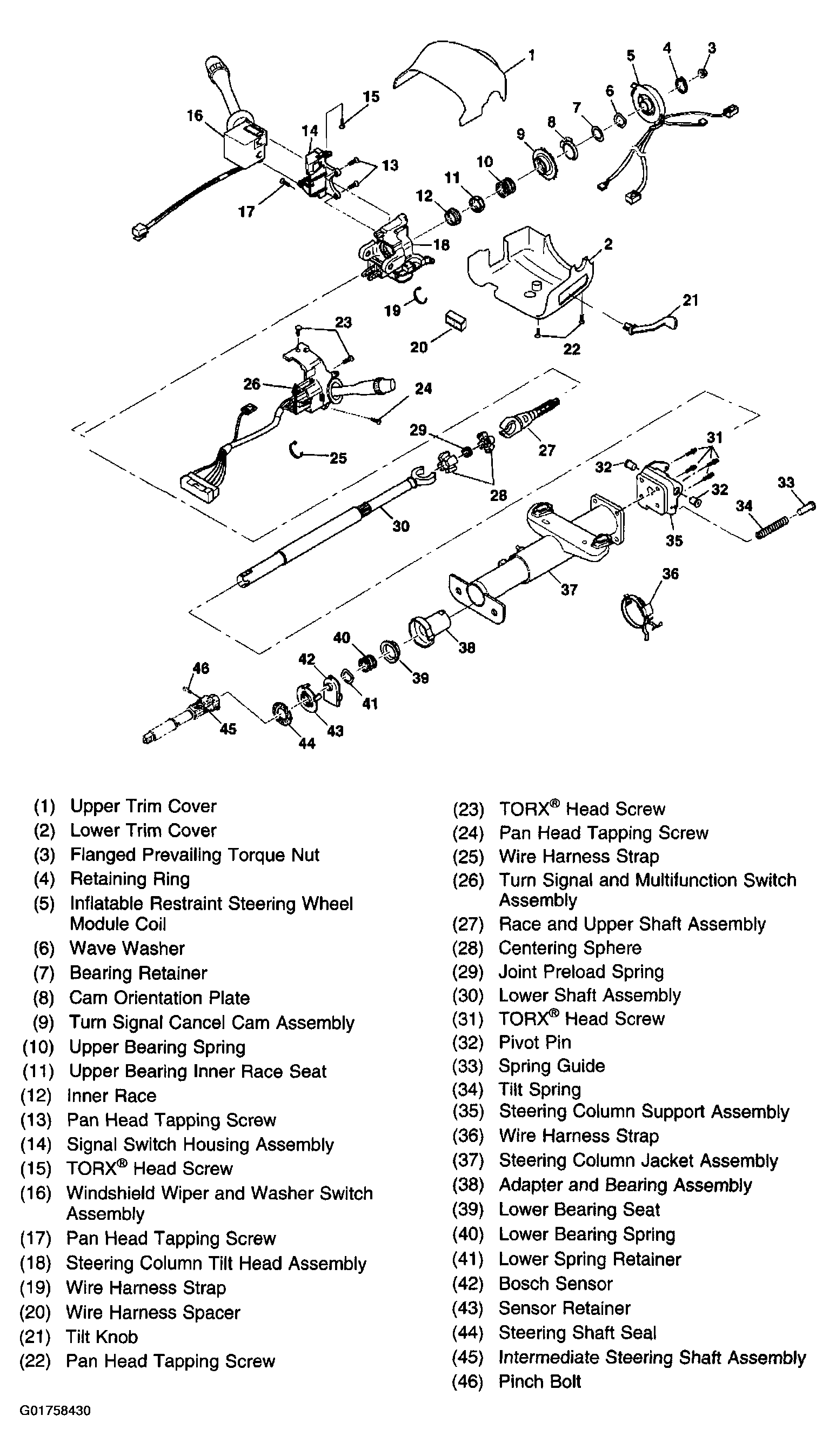

Fig 1: Tilt Steering Column, Floor Shift
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
