Installation Procedure

  1. Position the heated seat module under the seat.
  2. Connect the electric connectors.

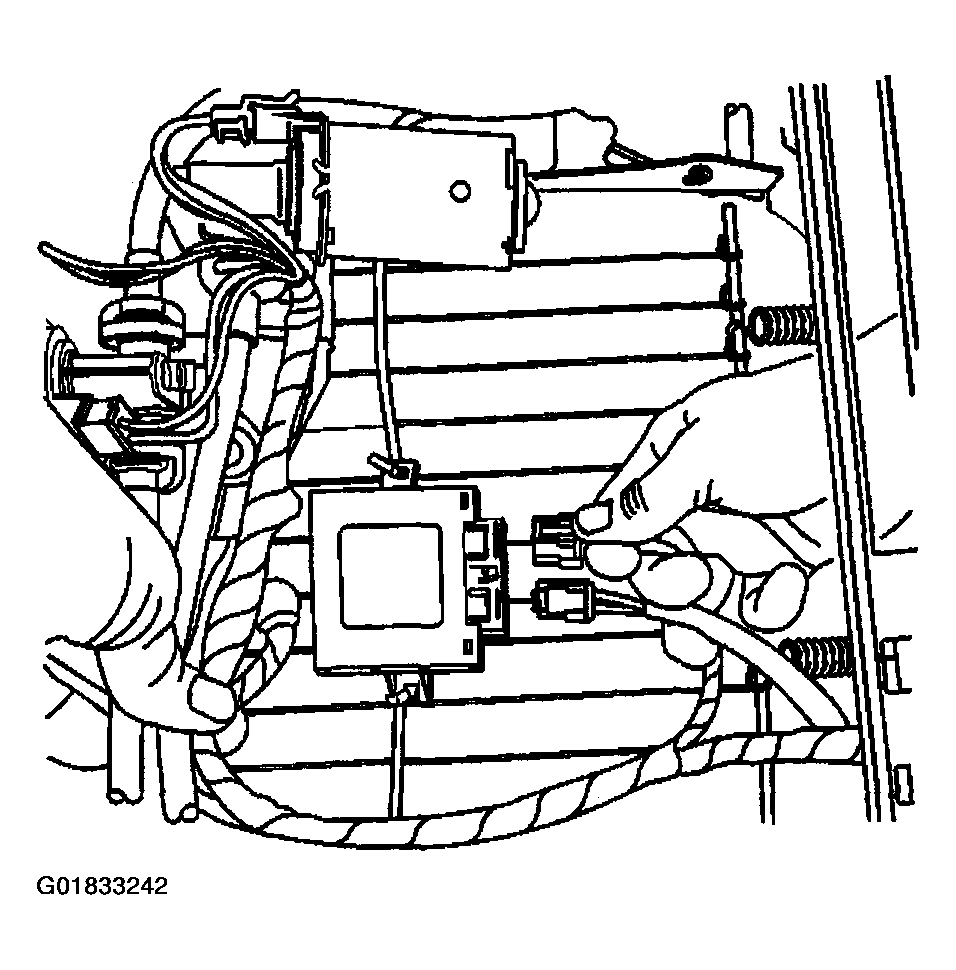

    Fig 1: Connecting Electric Connectors
    G01833242Courtesy of GENERAL MOTORS CORP.
  3. Install the tie straps on each side of the module.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the front bucket seat adjuster-to-floor pan bolts.

    Tighten

    Tighten the front bucket seat adjuster-to-floor pan bolts to 42 N.m (31 lb ft).

  5. Move the seat to its original position.

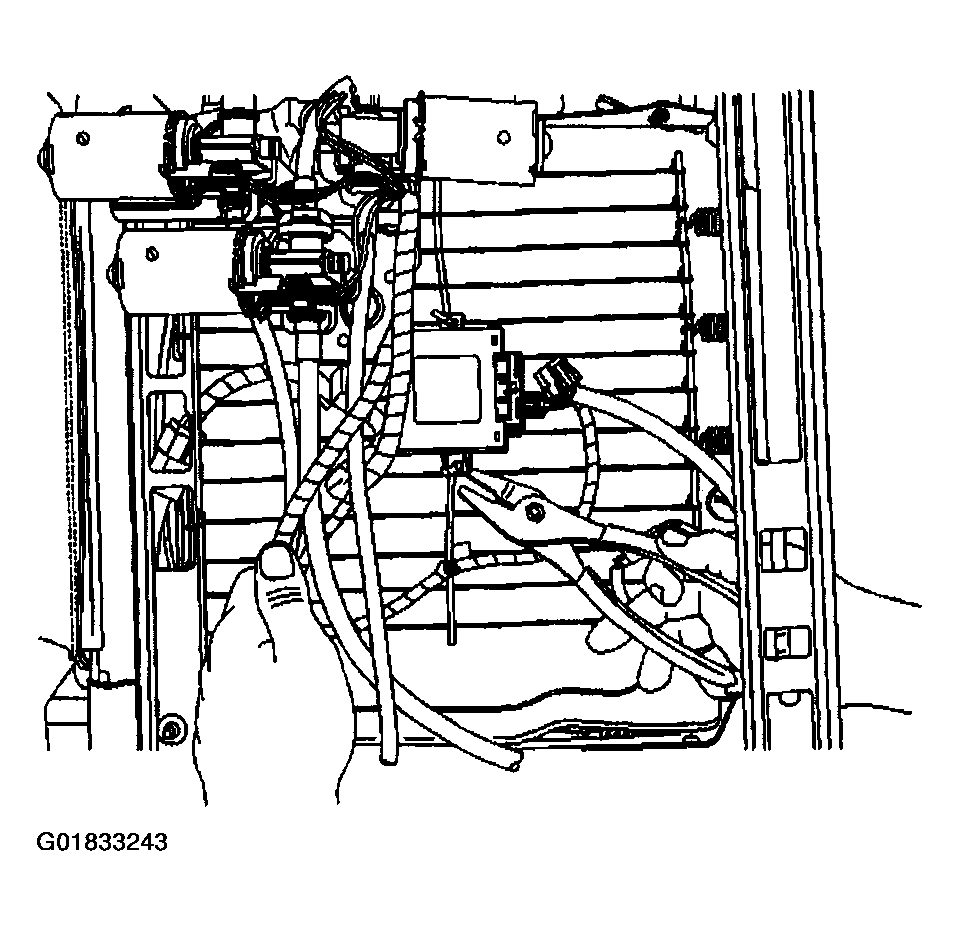

    Fig 2: Installing Tie Straps On Each Side Of Module
    G01833243Courtesy of GENERAL MOTORS CORP.
