ABS Schematics (Power, Grounds, And BPMV)

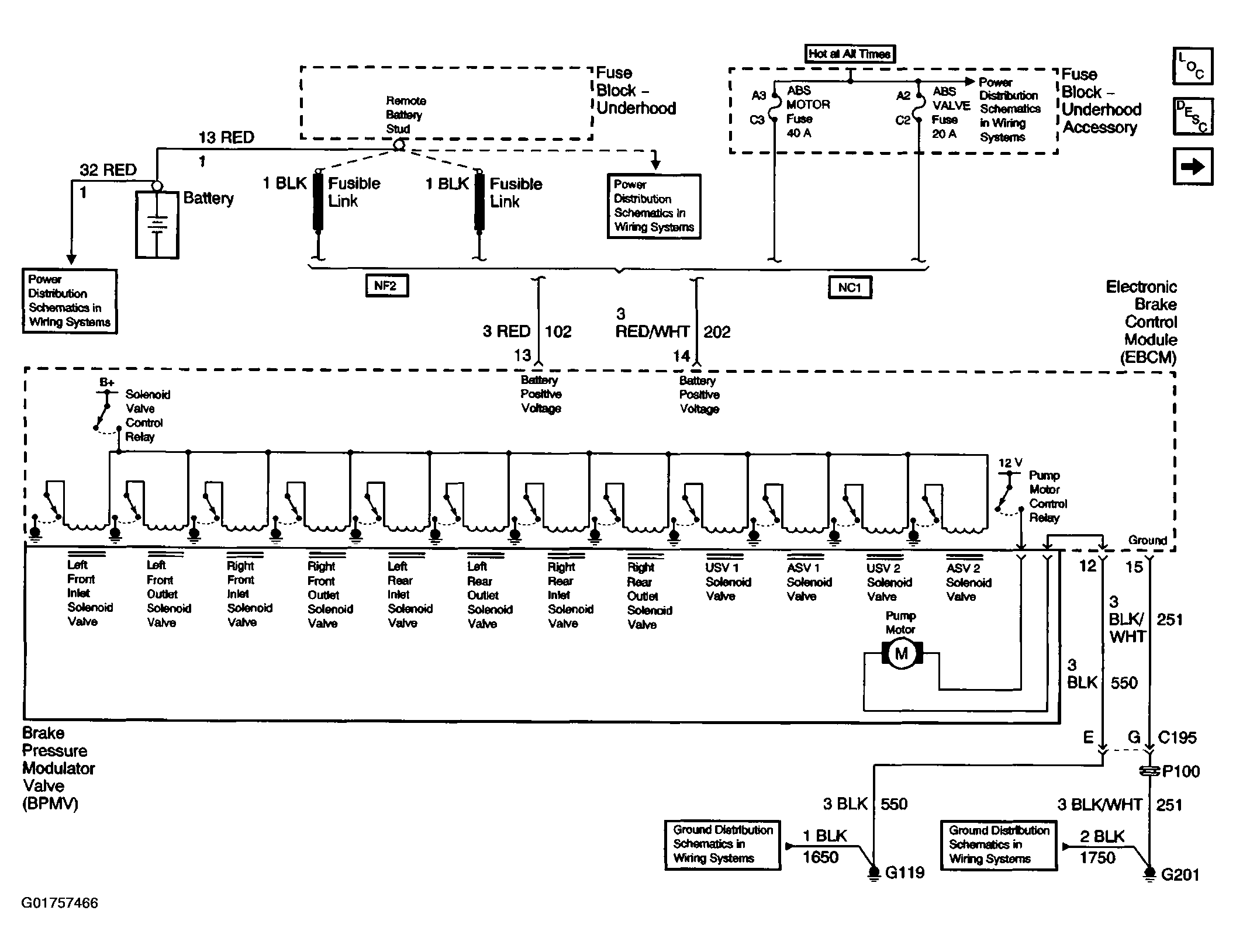

Fig 1: ABS Schematics (Power, Grounds, And BPMV)
G01757466Courtesy of GENERAL MOTORS CORP.

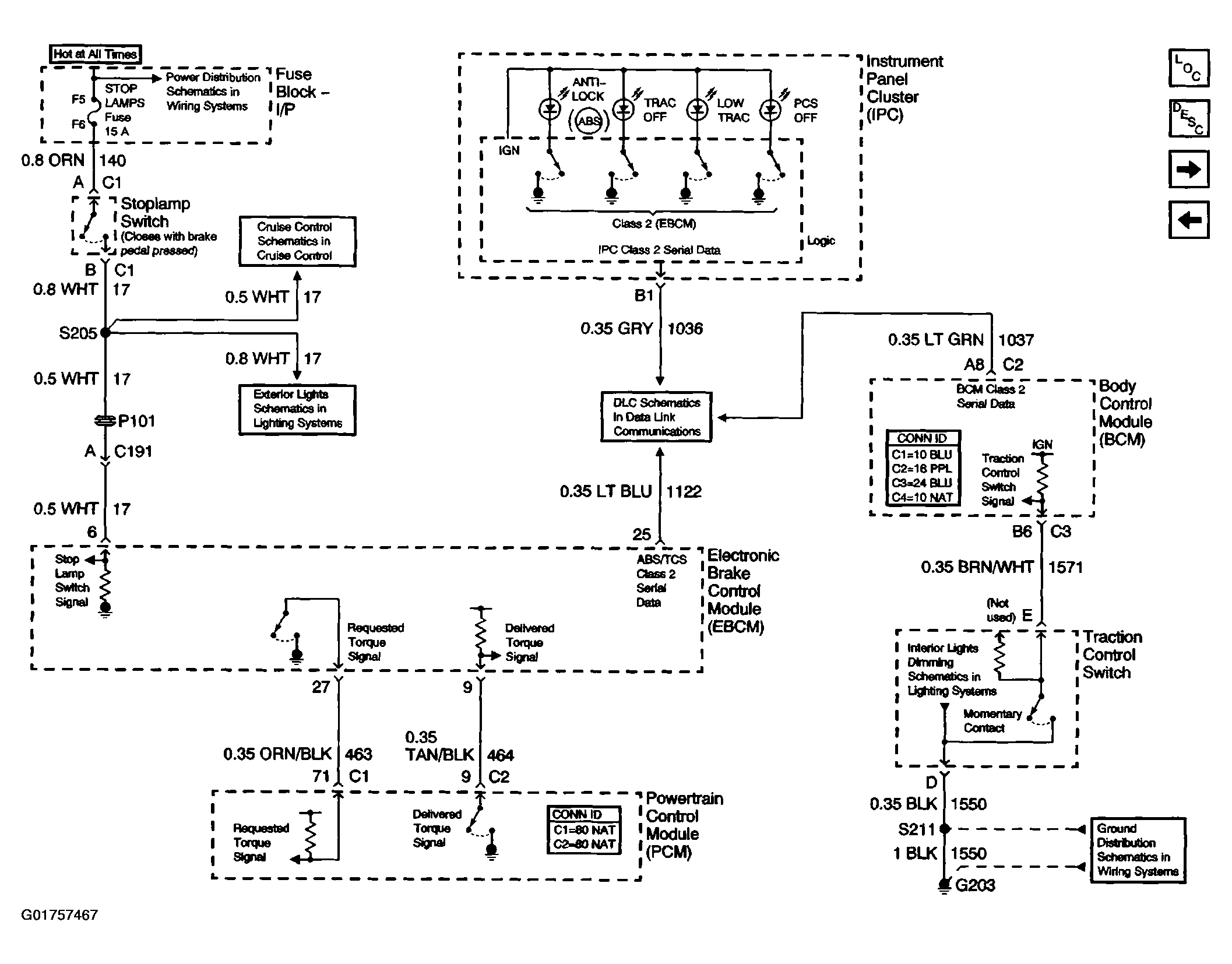

Fig 2: ABS Schematics (ABS Indicator, Torque Signals, And Traction Control Switch)
G01757467Courtesy of GENERAL MOTORS CORP.

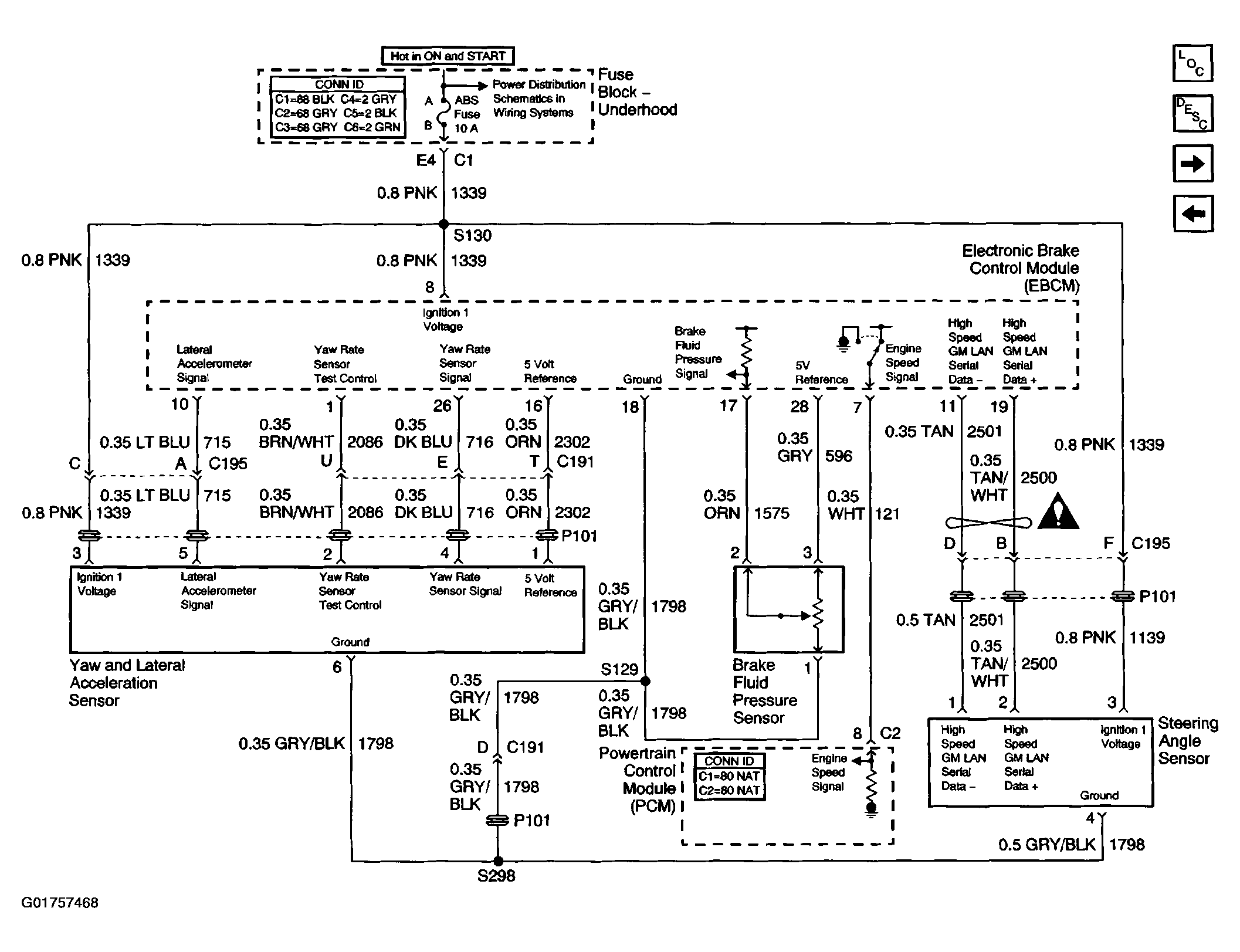

Fig 3: ABS Schematics (Yaw And Lateral, Brake Pressure, And Steering Angle Sensors)
G01757468Courtesy of GENERAL MOTORS CORP.

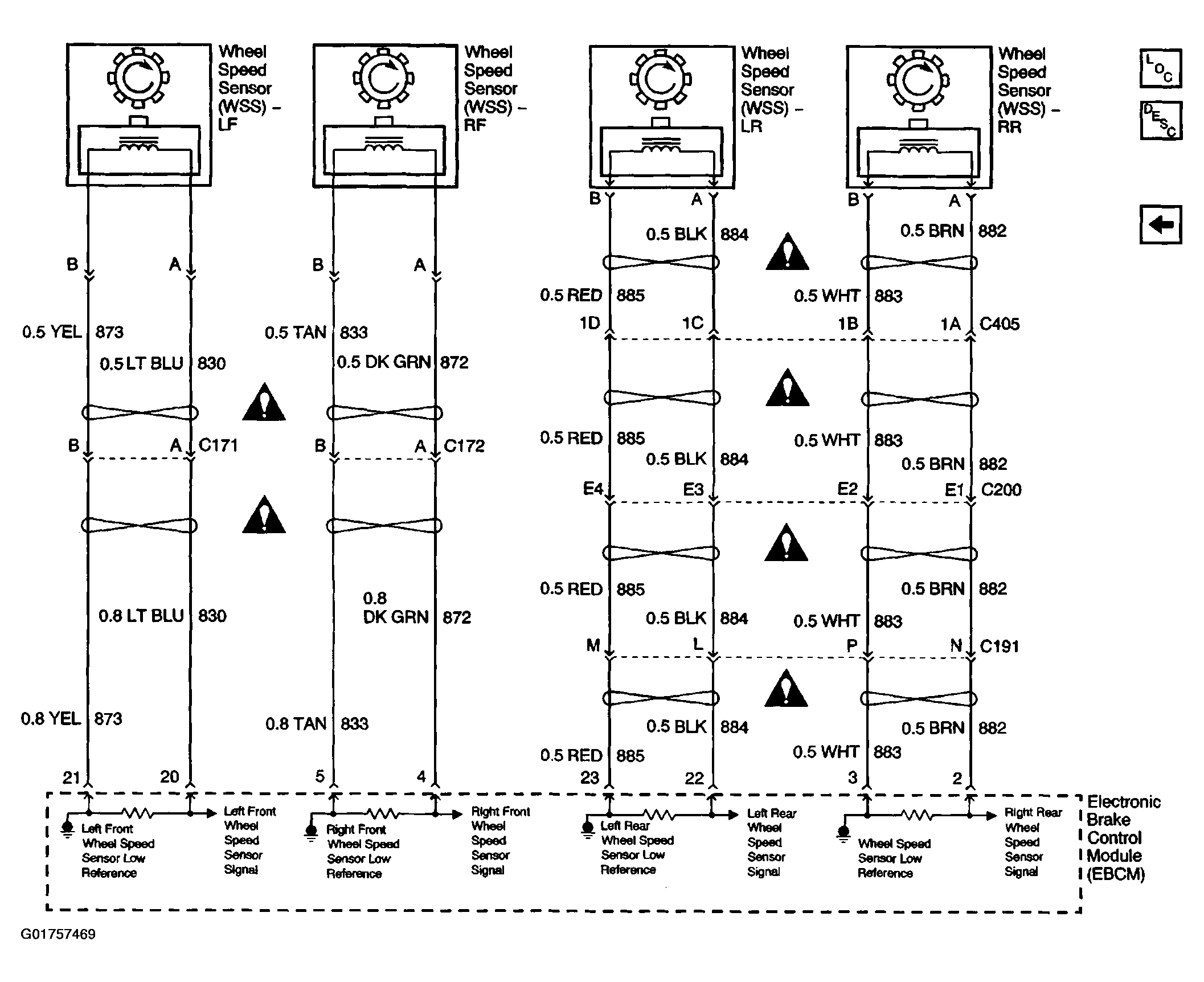

Fig 4: ABS Schematics (Wheel Speed Sensors)
G01757469Courtesy of GENERAL MOTORS CORP.
