Oil Pump Pipe and Screen Assembly Installation
WARNING: This page is about a different car, the 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

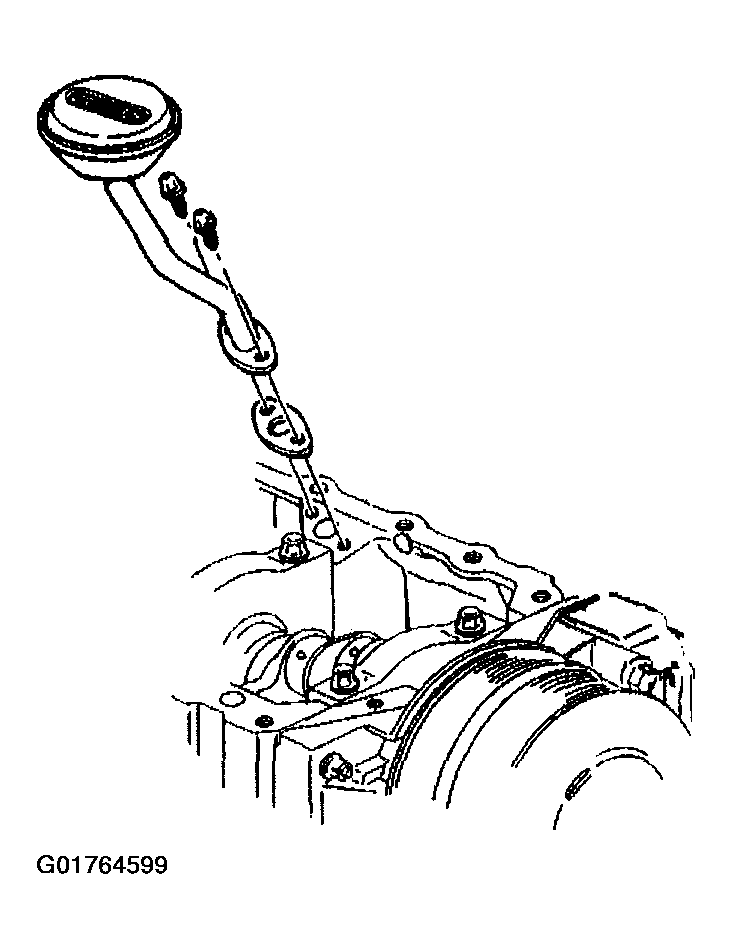

- Install the oil pump pipe and screen assembly gasket.
Important: The oil pan gasket must be installed before the oil pump pipe and screen assembly.
- Install the oil pan gasket.
- Install the oil pump pipe and screen assembly.
- Install the oil pump pipe and screen assembly bolts.
Tighten:
Tighten the bolts to 15 N.m (11 lb ft)
