Wiper/Washer System Component Views

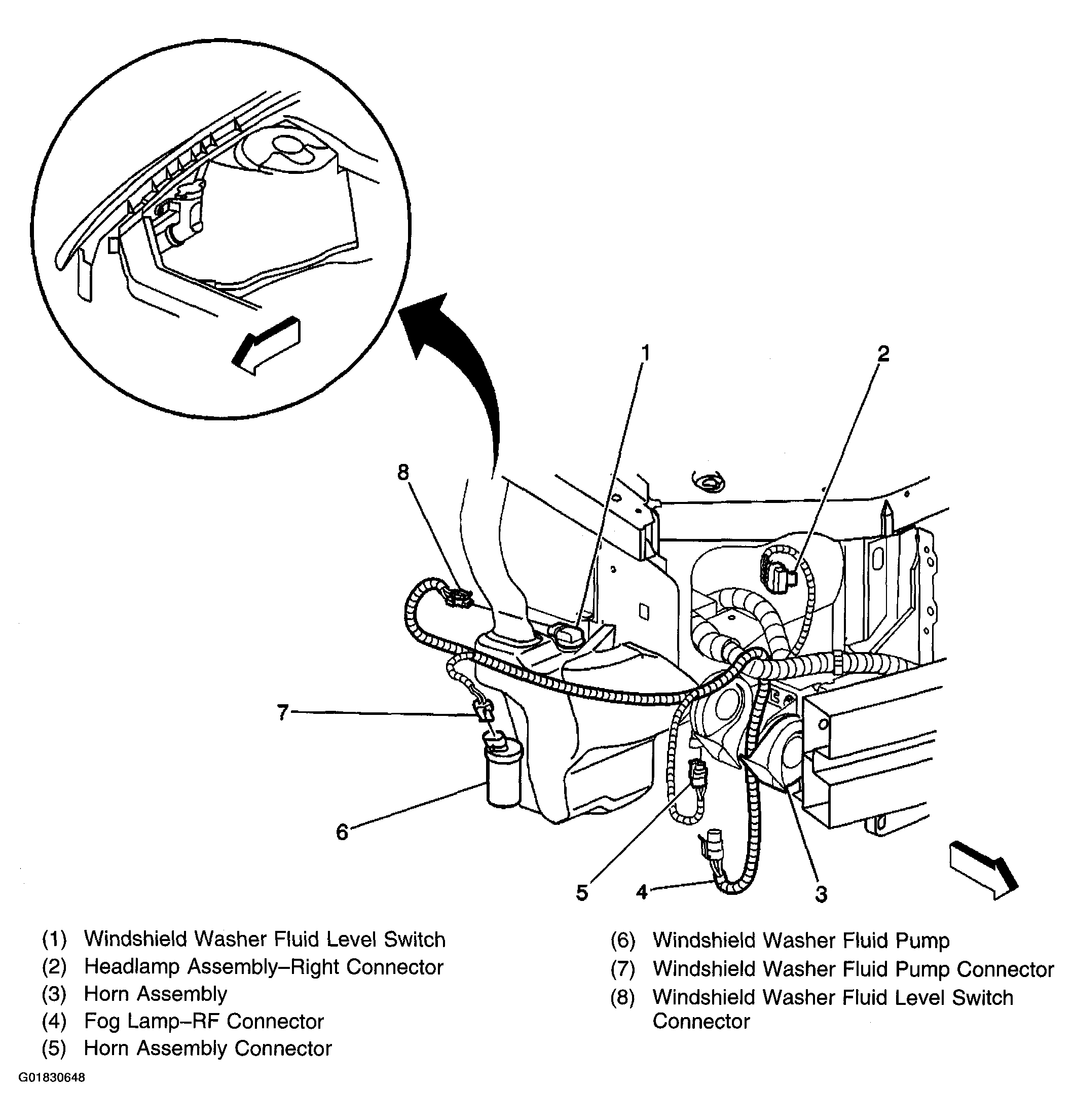

Fig 1: Right Front Of Vehicle Component View
G01830648Courtesy of GENERAL MOTORS CORP.

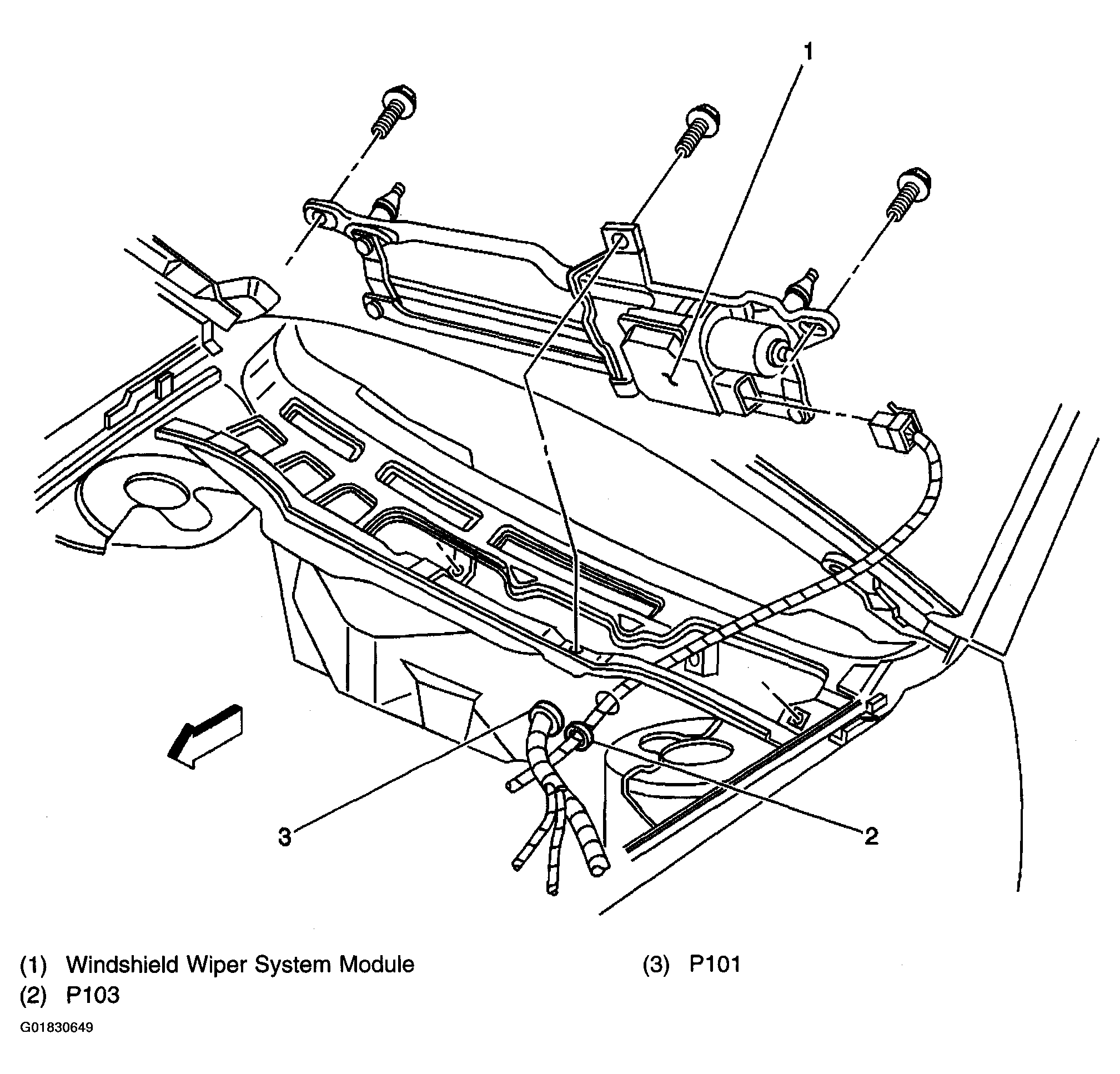

Fig 2: Forward Of Windshield Component View
G01830649Courtesy of GENERAL MOTORS CORP.

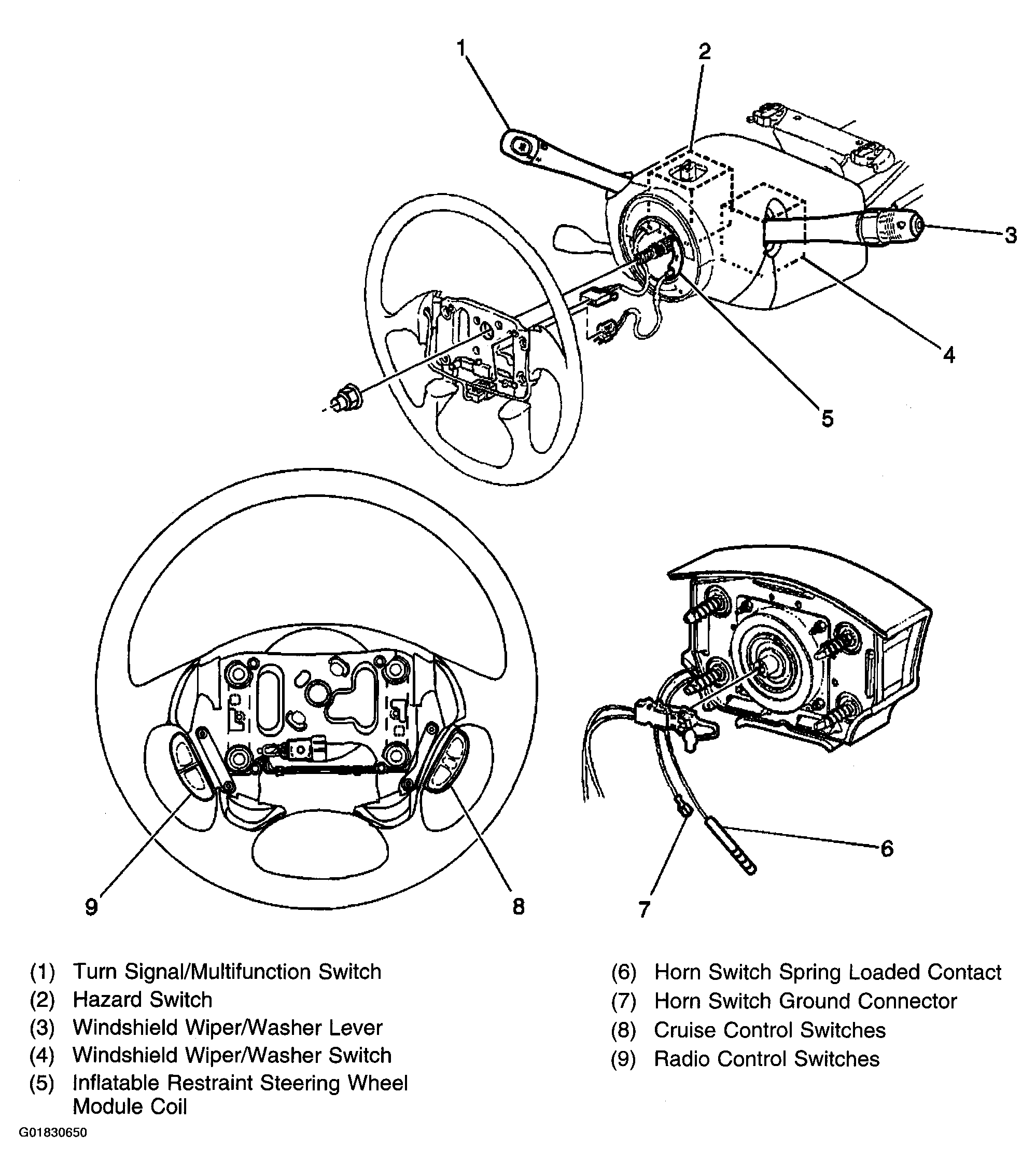

Fig 3: Left Side Of Instrument Panel Component View
G01830650Courtesy of GENERAL MOTORS CORP.
