Installation Procedure

  1. Connect the electrical connector to the steering wheel control switch.
  2. Position the steering wheel control switch to the steering wheel.

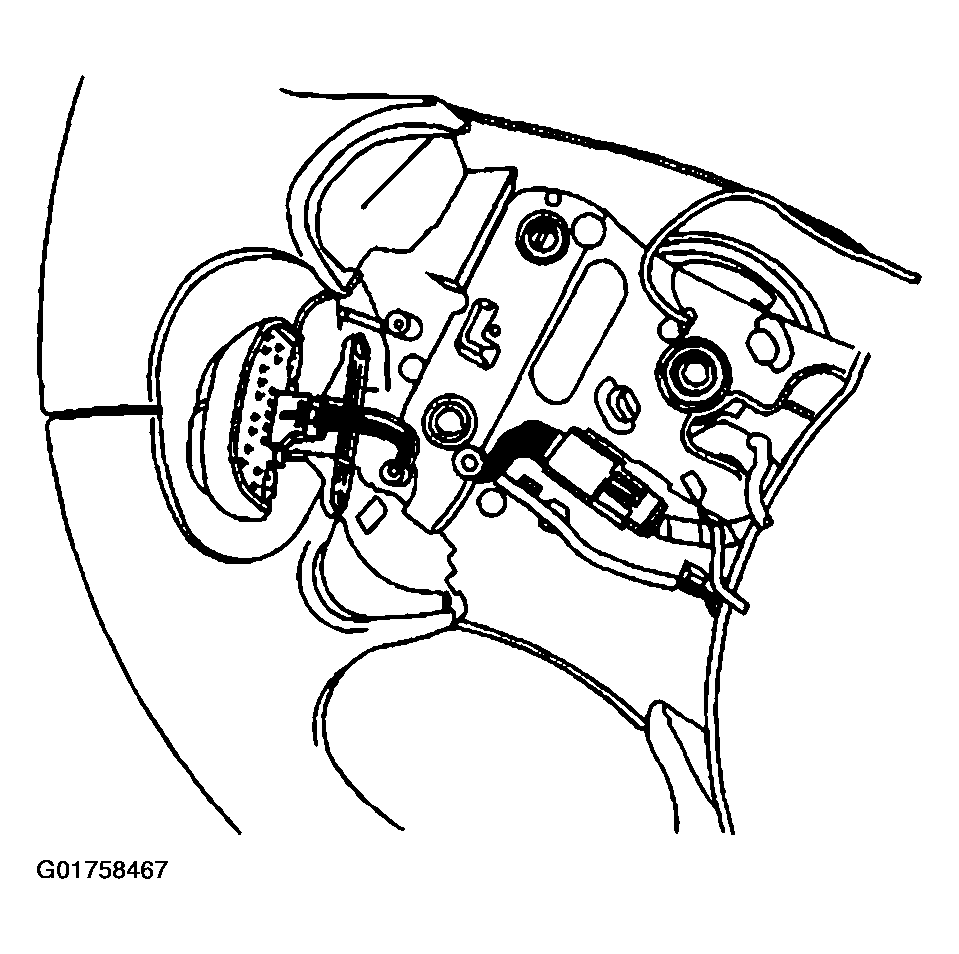

    Fig 1: Installing Steering Wheel Control Switch To Steering Wheel
    G01758467Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE
  3. Install the screws to the steering wheel control switch.

    Tighten

    Tighten the steering wheel control switch screws to 2 N.m (18 lb in).

  4. Inspect the operation of the steering wheel control switch.
  5. Install the inflatable restraint steering wheel module. Refer to AIR BAG MODULES
  6. Enable the SIR system. Refer to DISABLING SYSTEM in SIR.

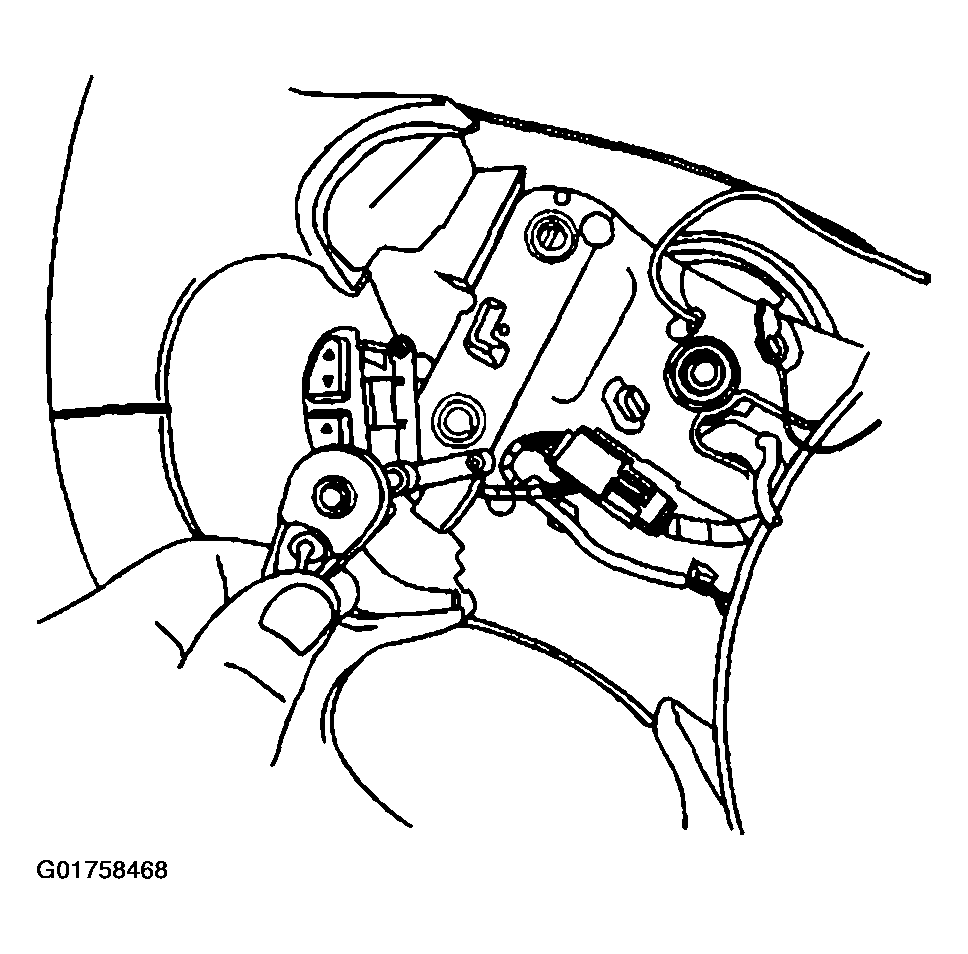

    Fig 2: Installing Screws To Steering Wheel Control Switch
    G01758468Courtesy of GENERAL MOTORS CORP.
