Installation Procedure

  1. Install the rear window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows .
  2. Connect the rear window defogger electrical connectors.
  3. Connect the OnStar® connector, if equipped.

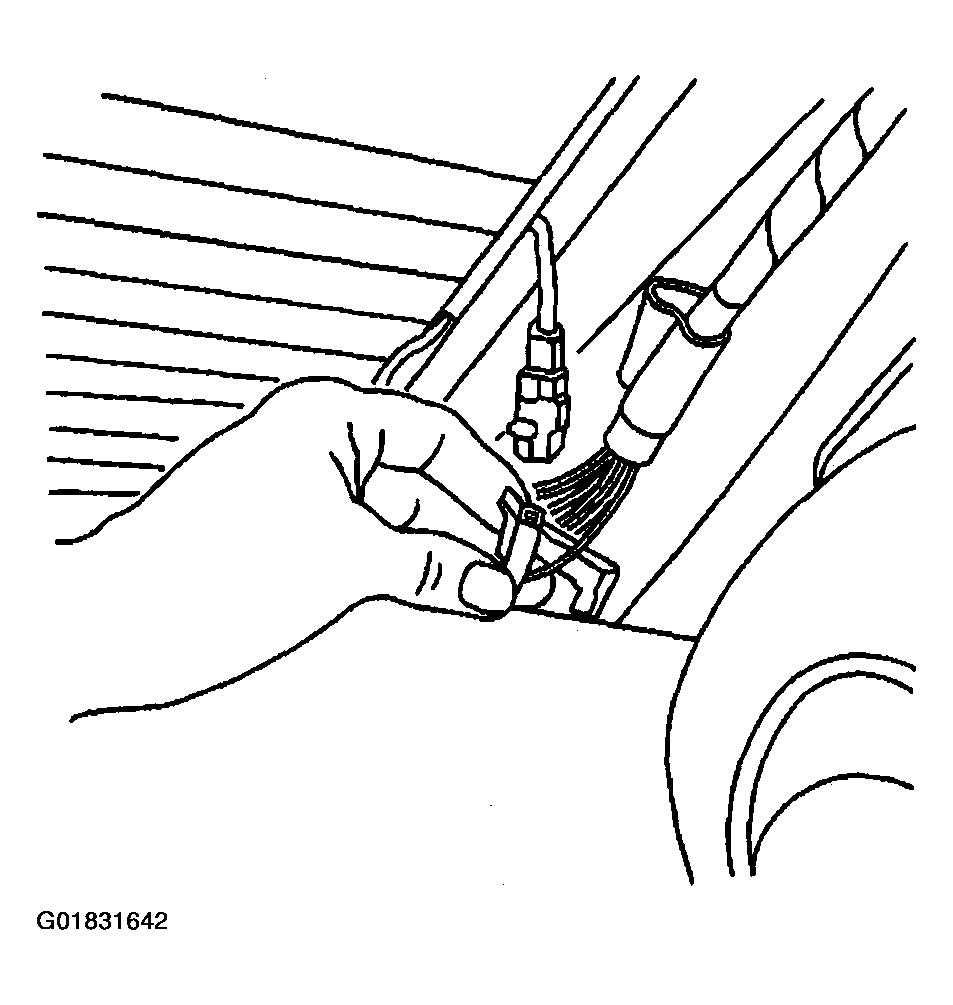

    Fig 1: Installing Rear Window & Electrical Connectors
    G01831642Courtesy of GENERAL MOTORS CORP.
  4. Install the rear window radio antenna connector.
  5. Close the rear compartment lid.
  6. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

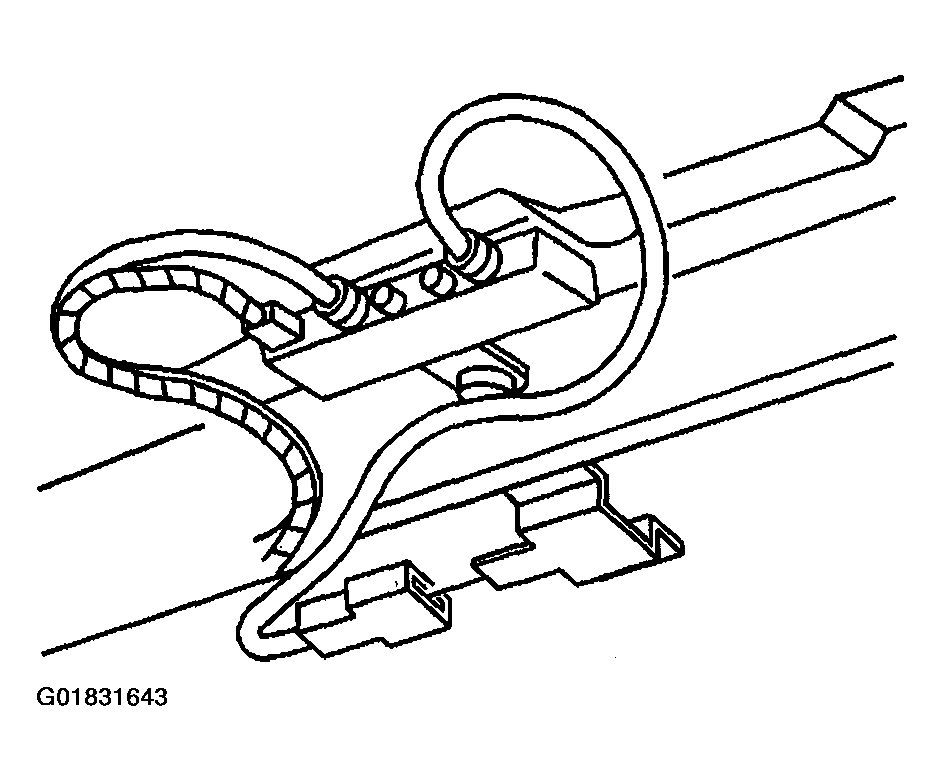

    Fig 2: Installing Rear Window Radio Antenna Connector
    G01831643Courtesy of GENERAL MOTORS CORP.
