Ambient Temperature Sensor / Switch HVAC

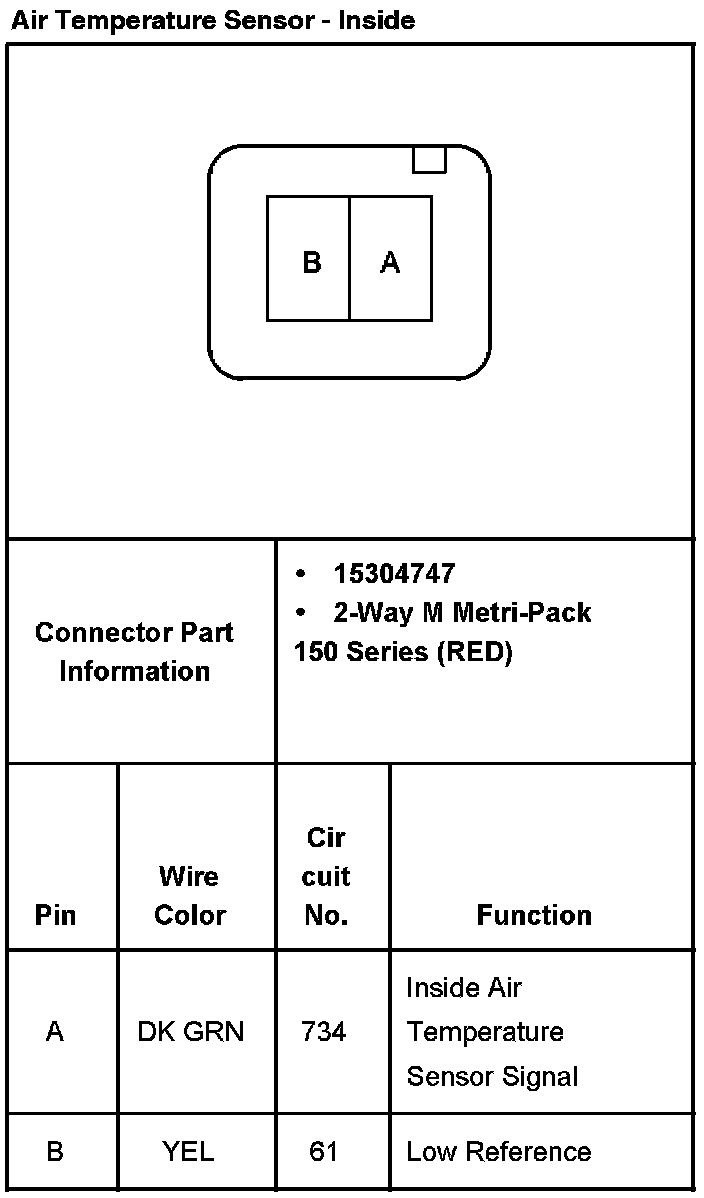

Air Temperature Sensor - Inside:

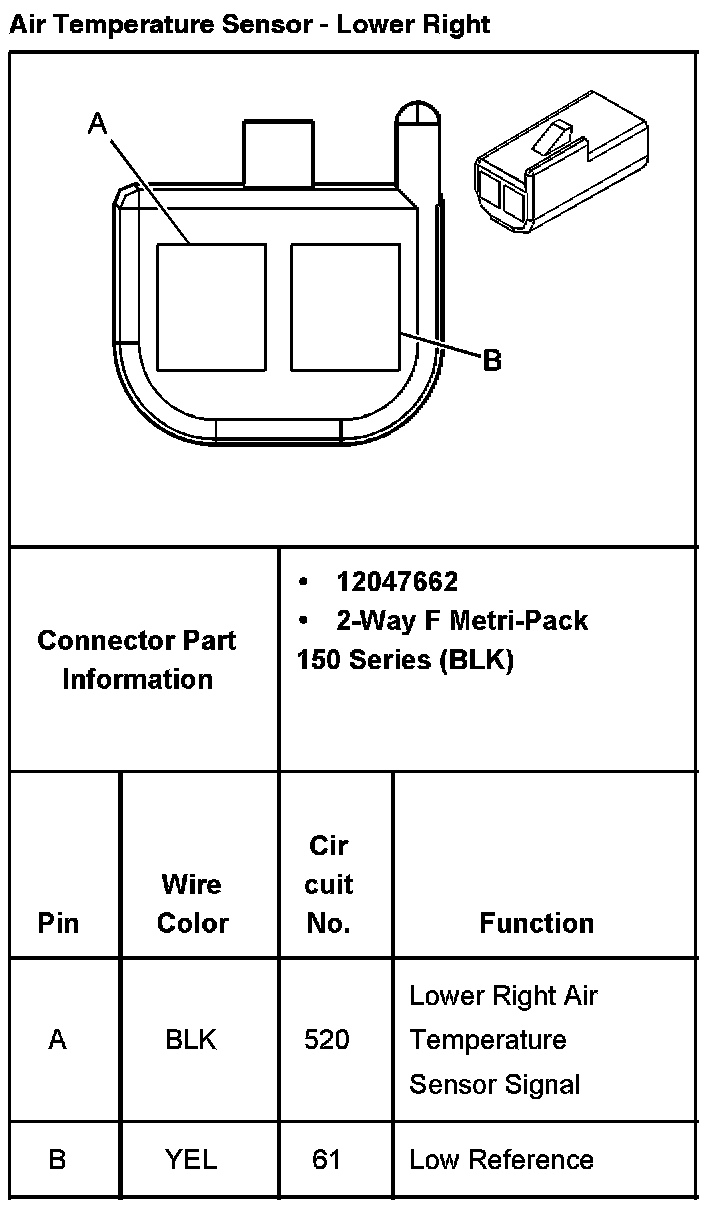

Air Temperature Sensor - Lower Right:

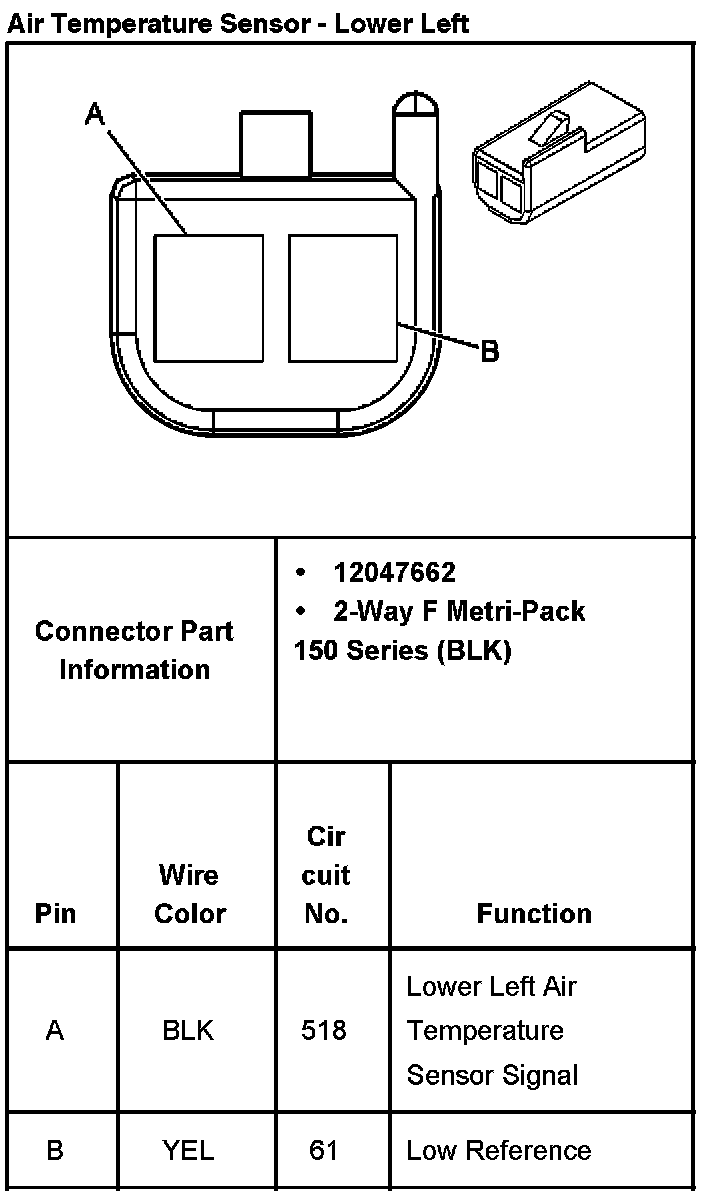

Air Temperature Sensor - Lower Left:

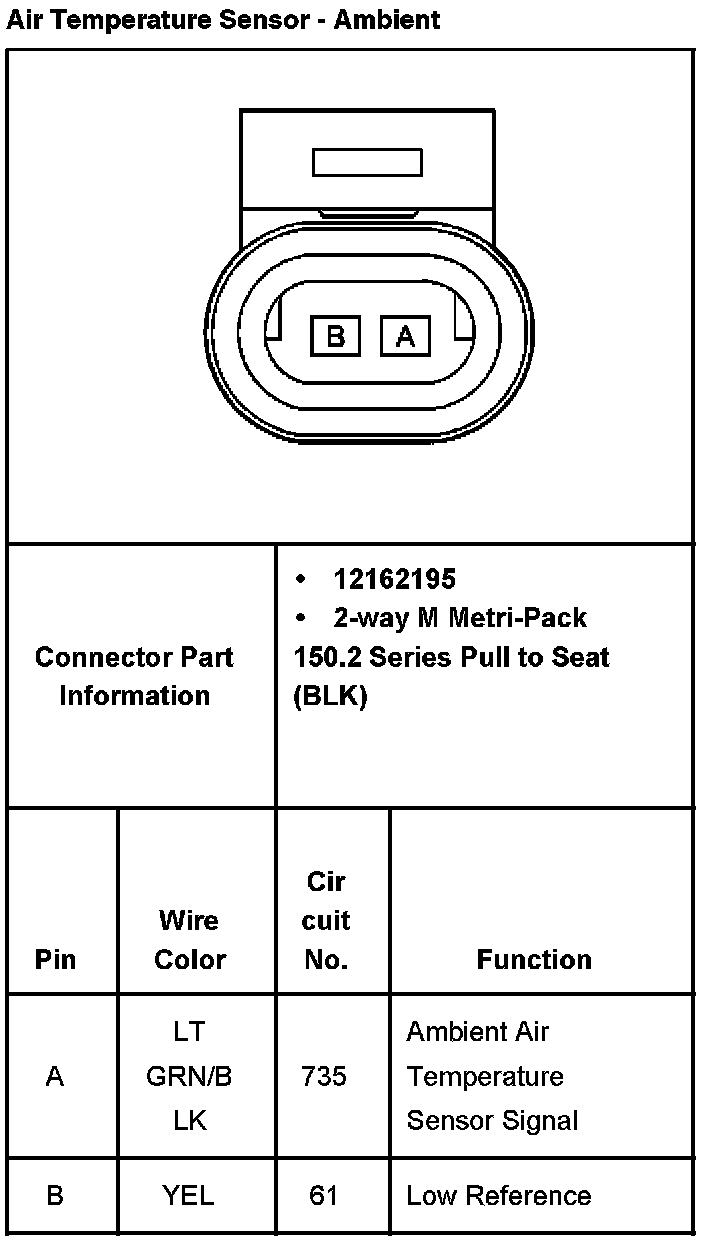

Air Temperature Sensor - Ambient:

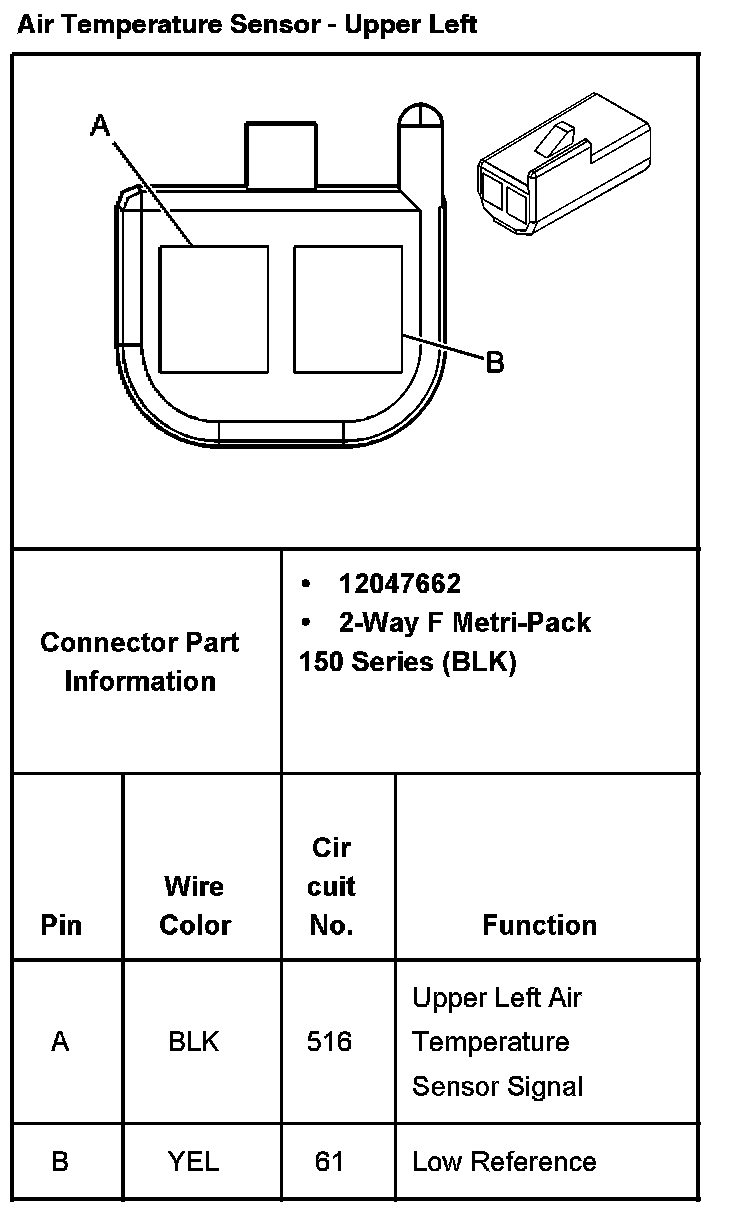

Air Temperature Sensor - Upper Left:

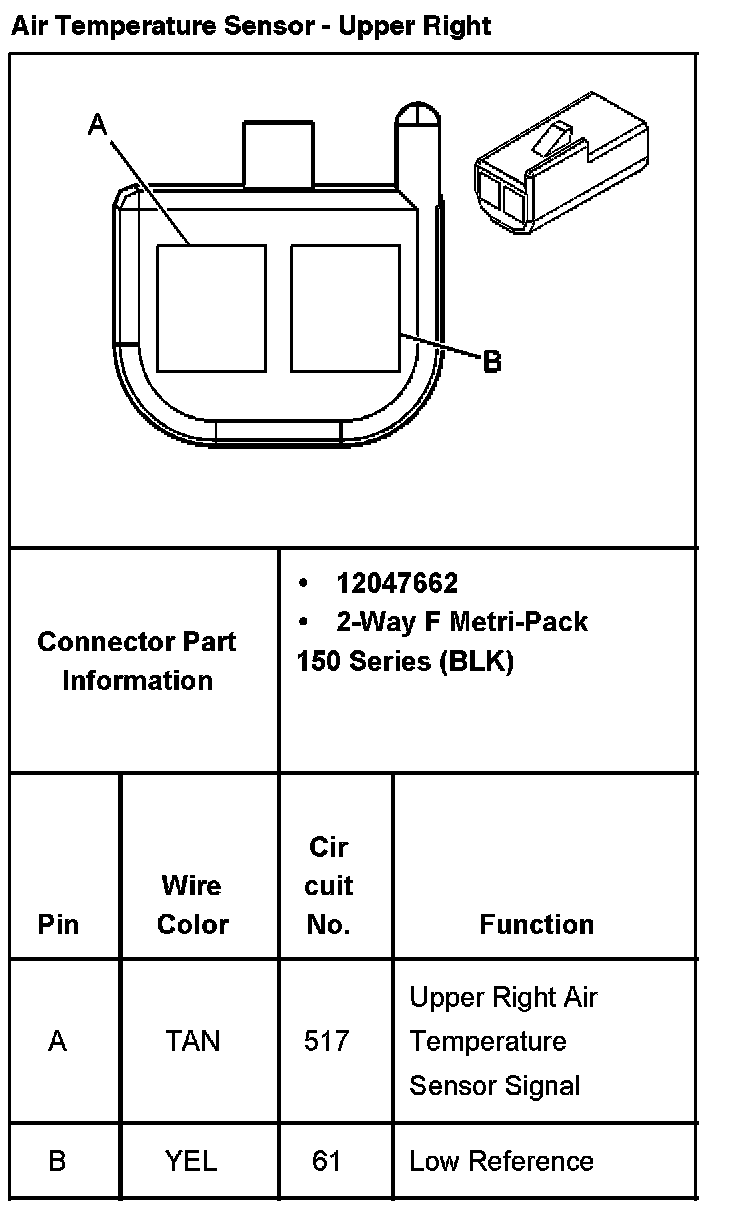

Air Temperature Sensor - Upper Right:
