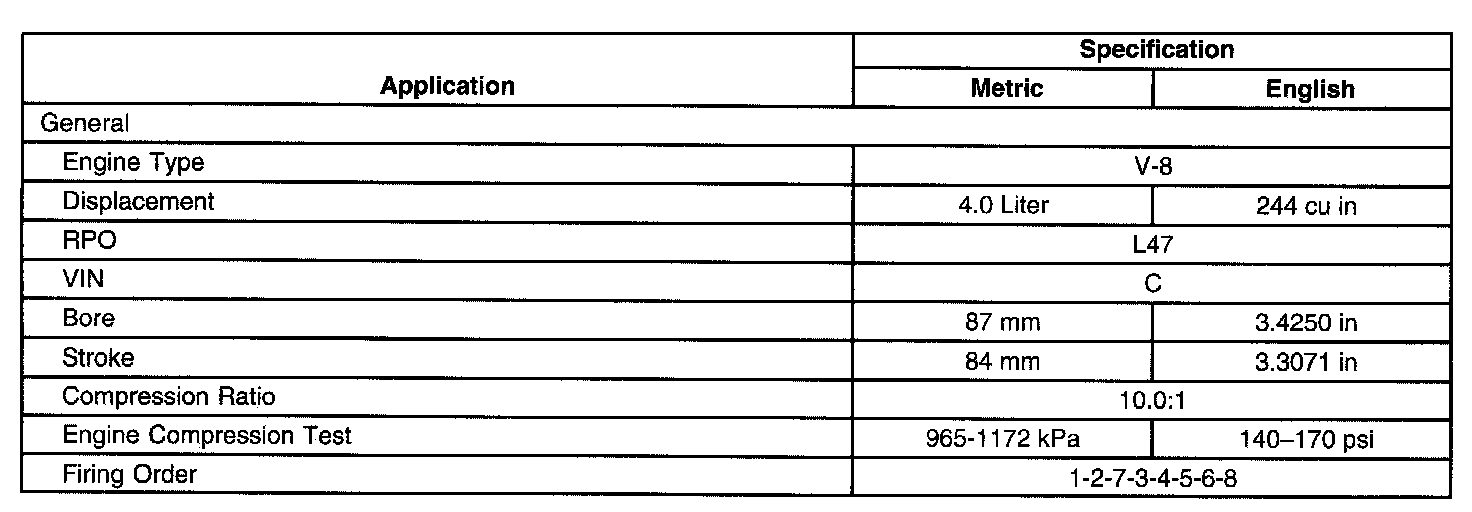

General Specifications

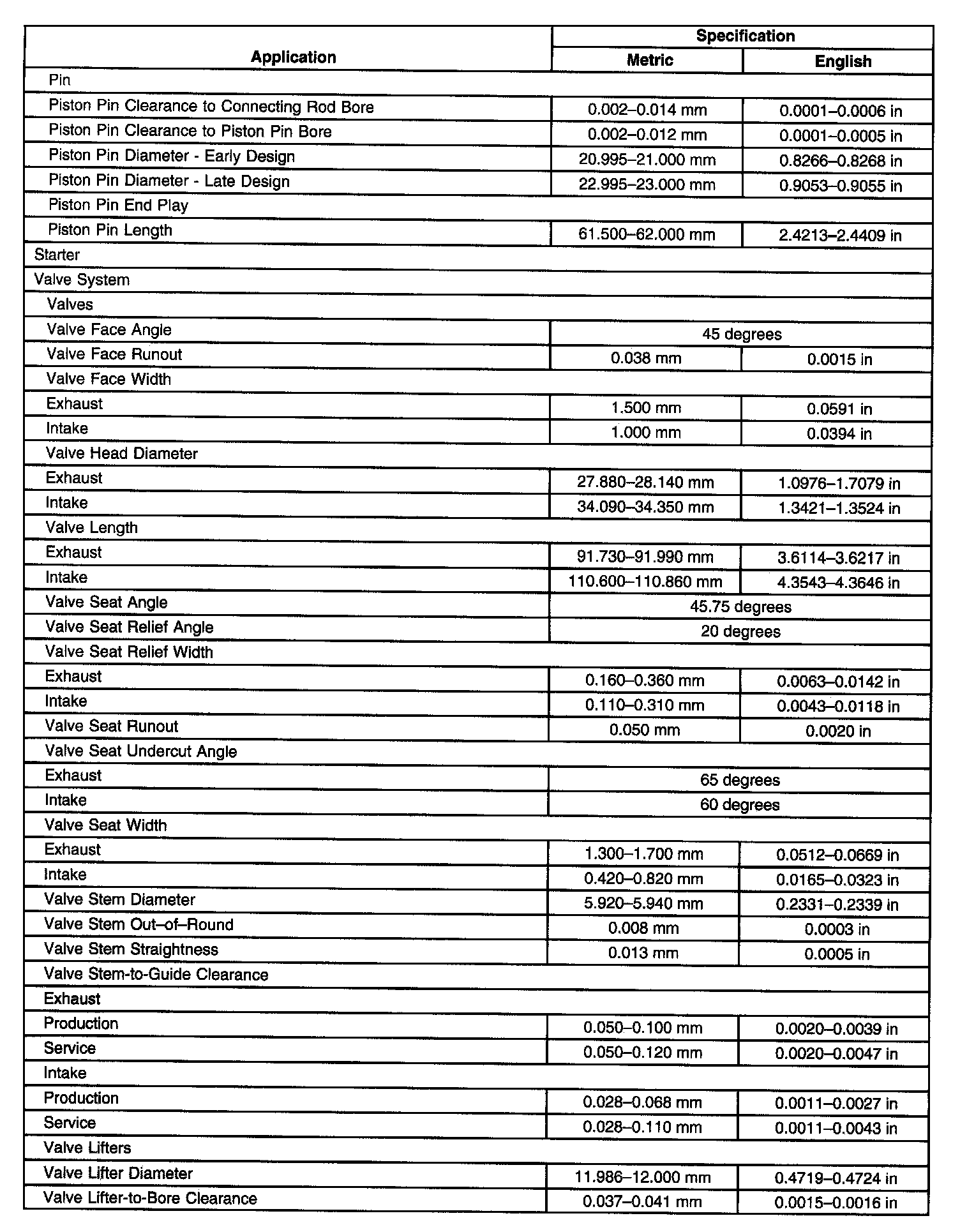

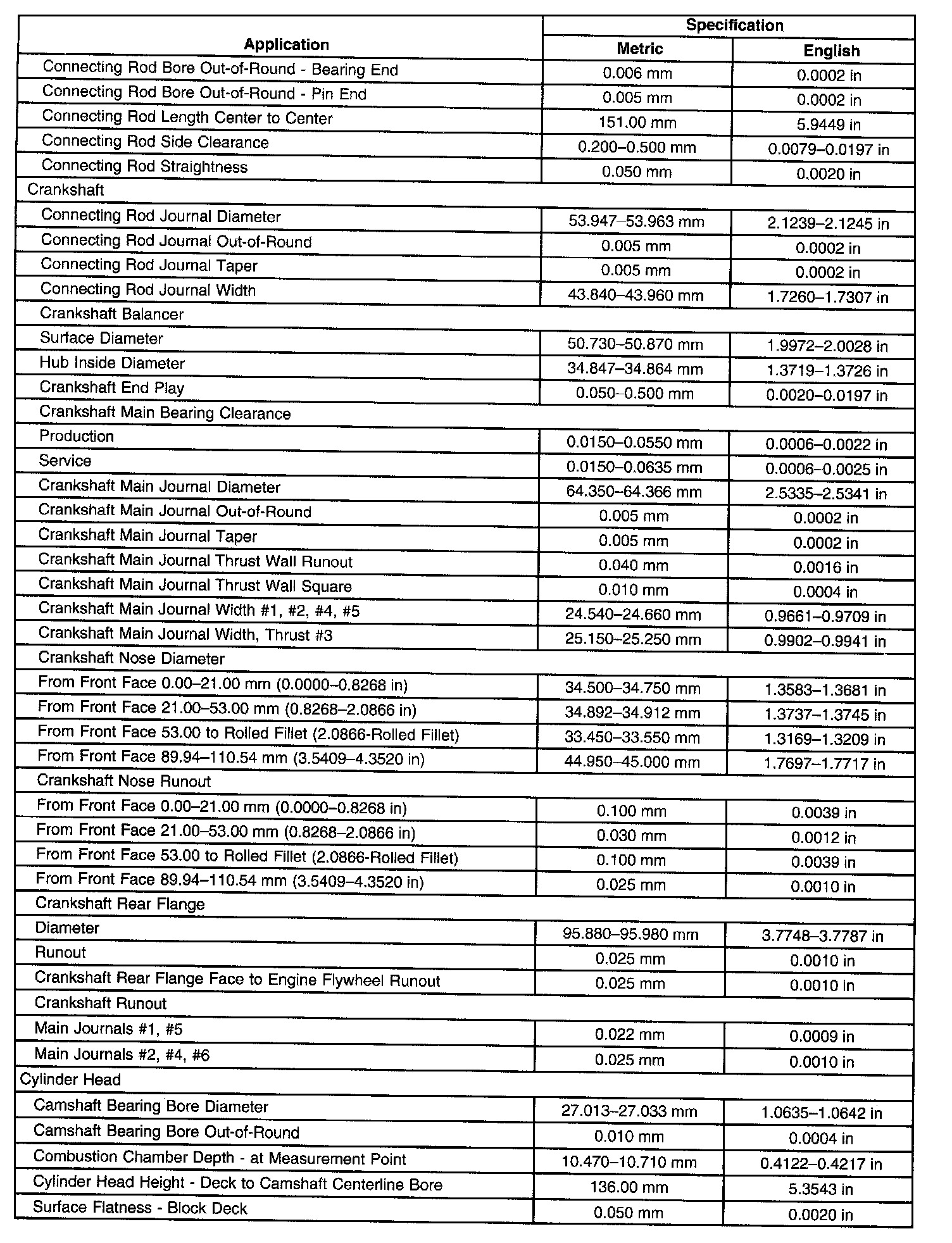

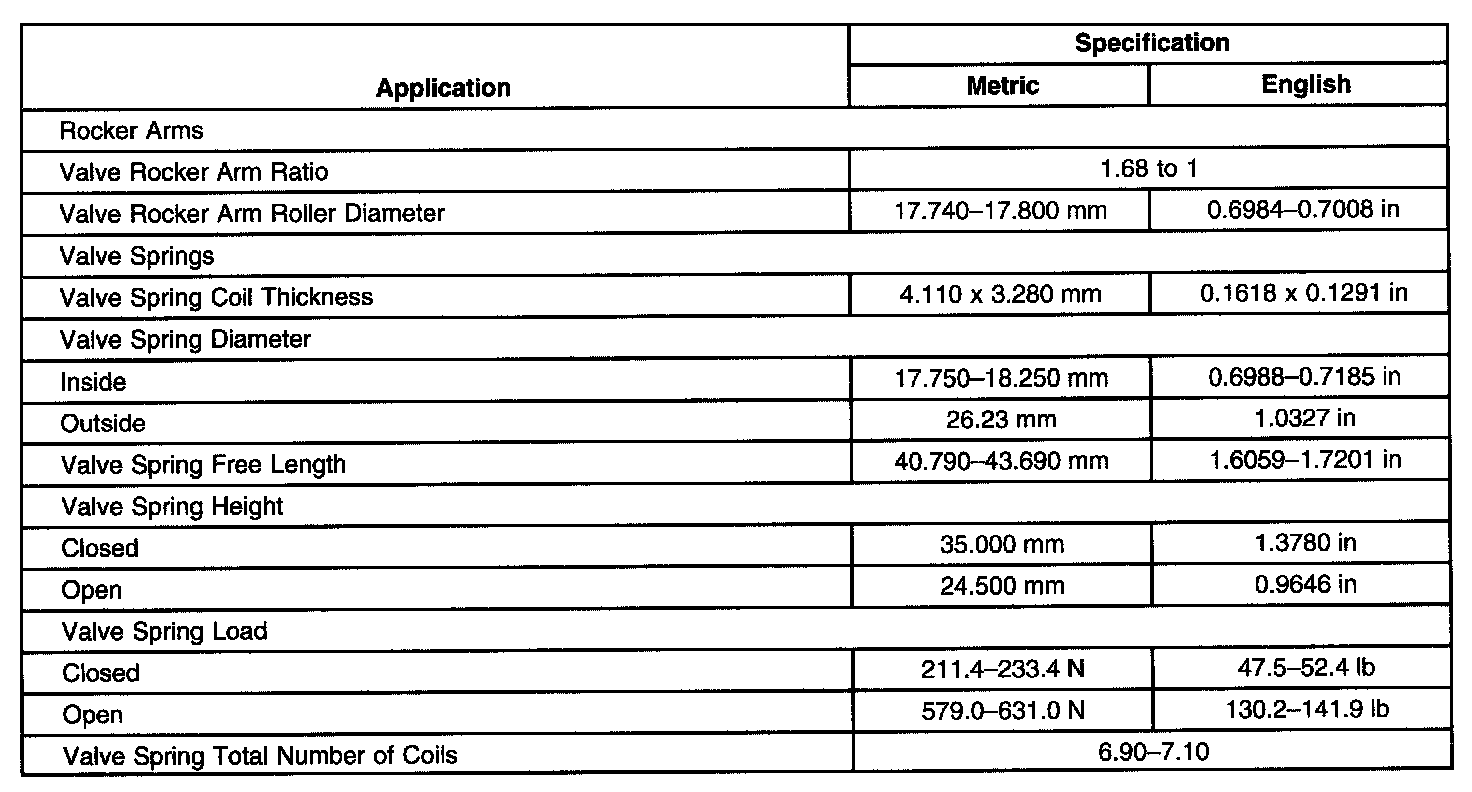

Specifications

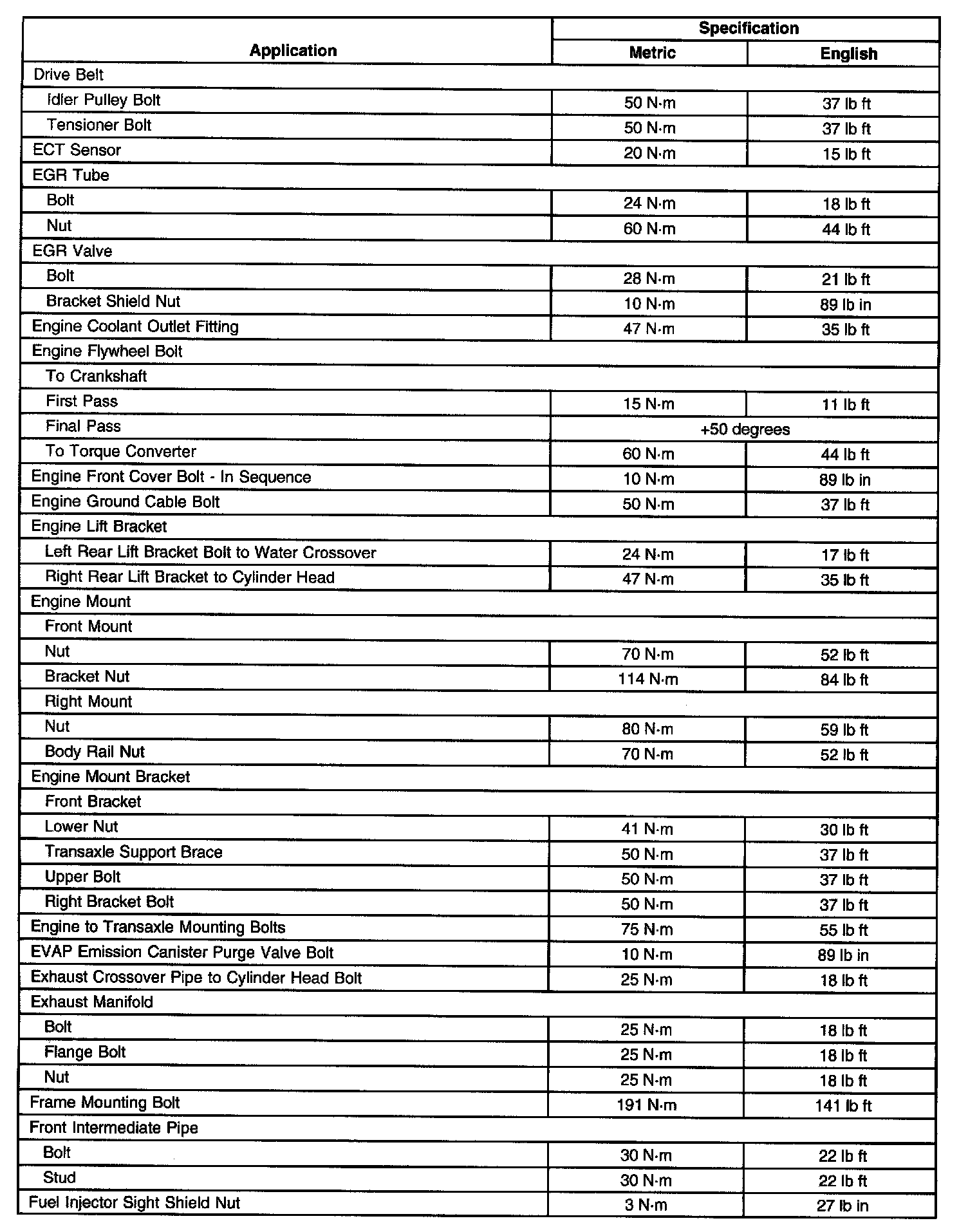

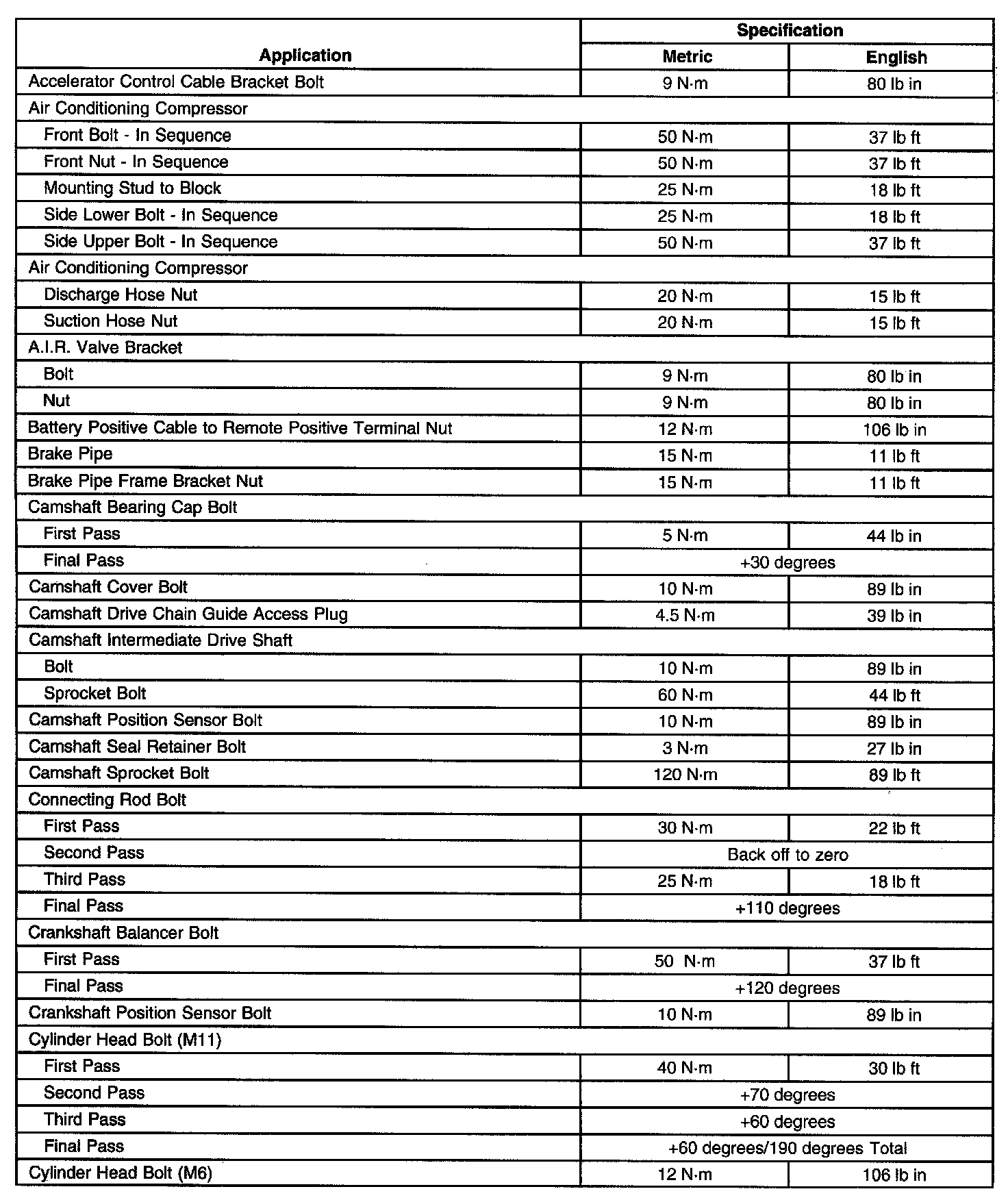

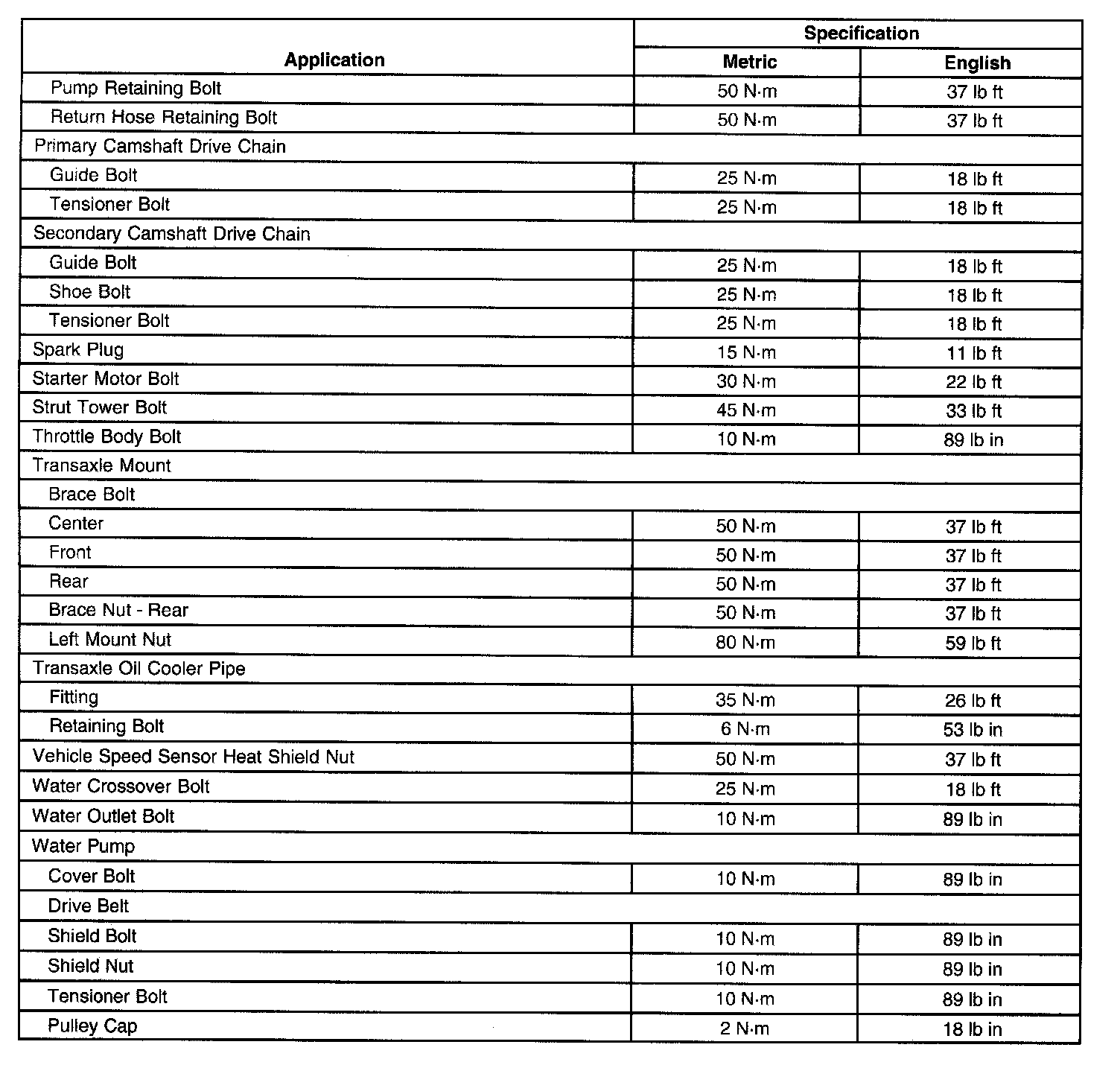

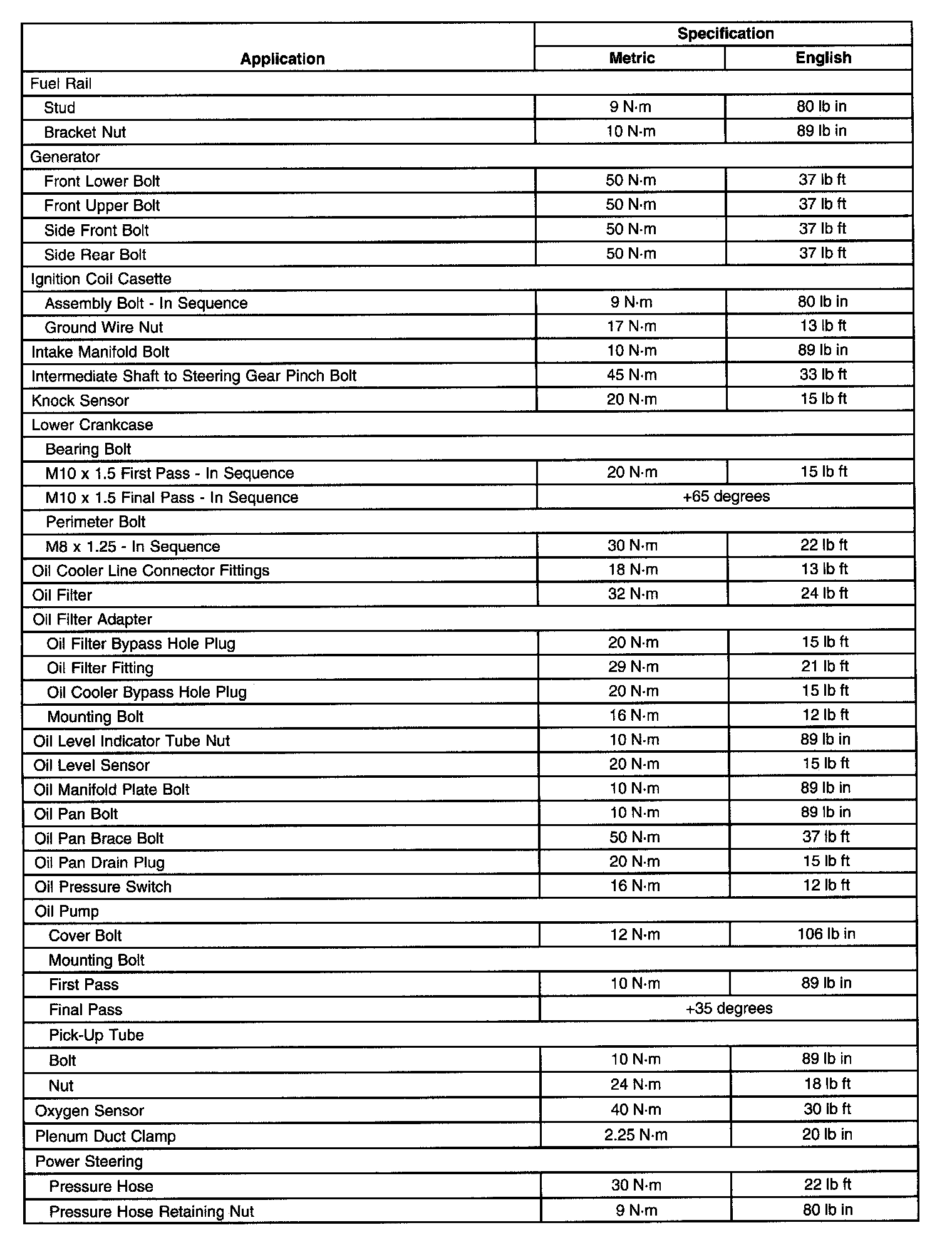

Fastener Tightening




















Engine Mechanical





Sealers, Adhesives and Lubricants


Cylinder Head

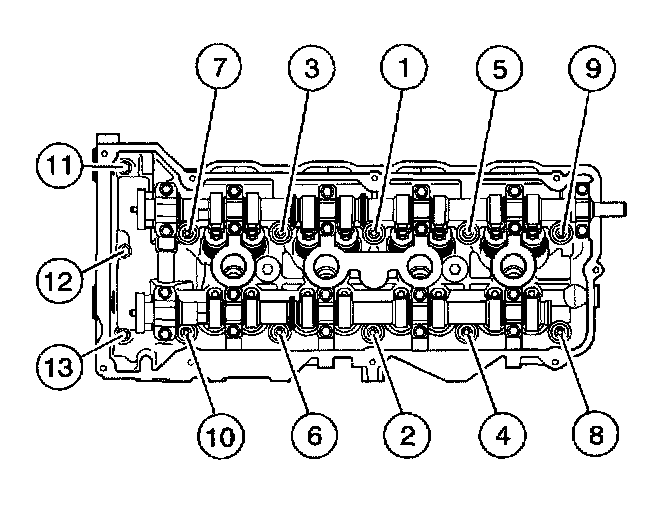

Left Cylinder Head Tightening Sequence:

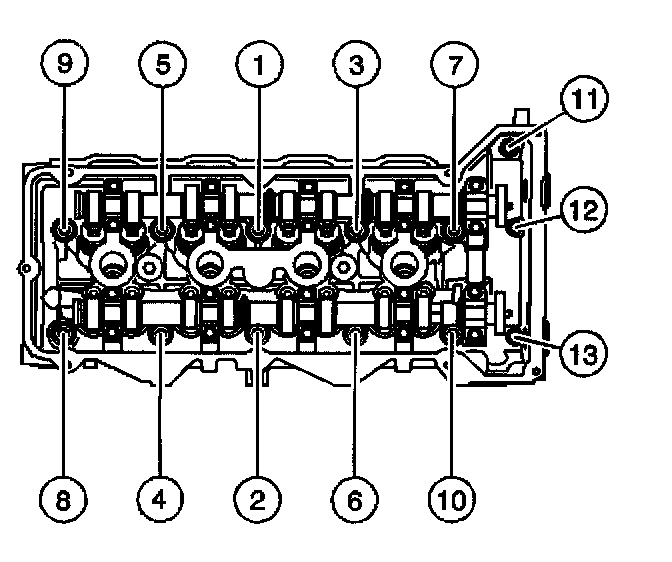

Right Cylinder Head Tightening Sequence:

Important: DO NOT reuse the M11 cylinder head bolts.

Note: Refer to Cylinder Head, Service and Repair for sequence and step details.


Intake Manifold

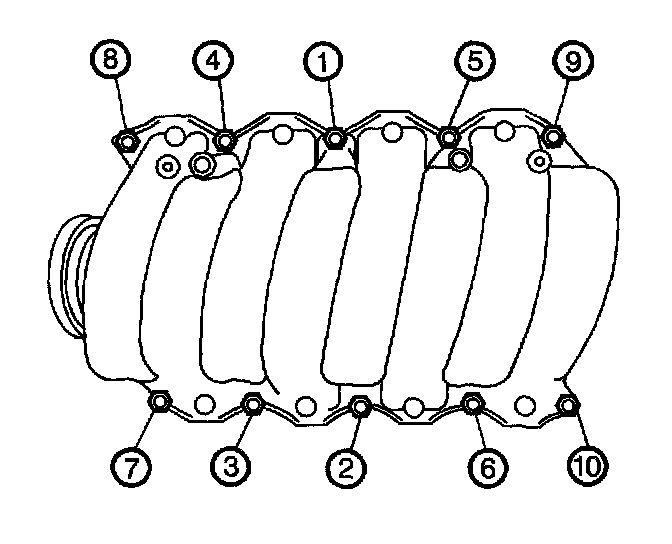

Intake Manifold Tightening Sequence:

Camshaft Bearing Caps

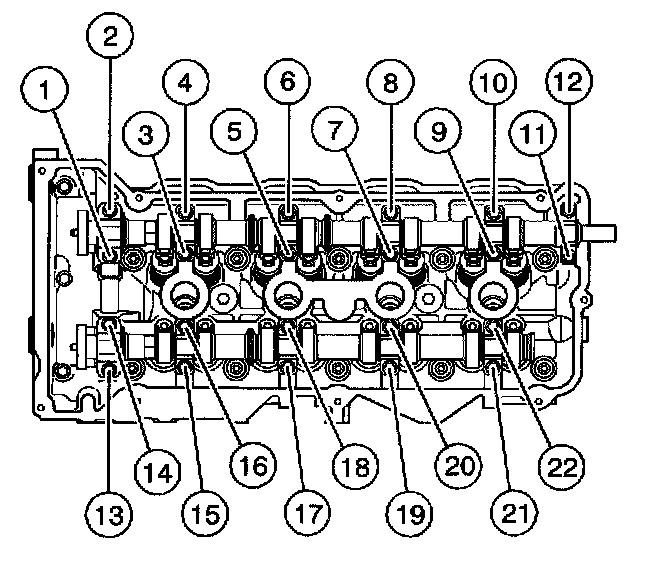

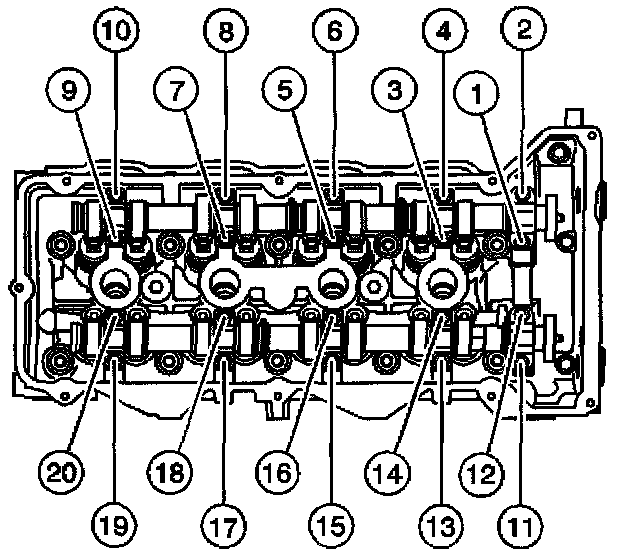

Left Camshaft Bearing Cap Tightening Sequence:

Right Camshaft Bearing Cap Tightening Sequence:

Main Bearings/Crankshaft

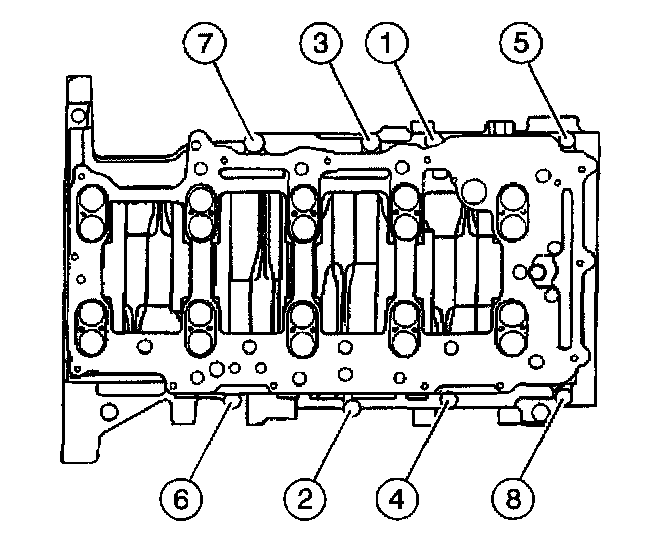

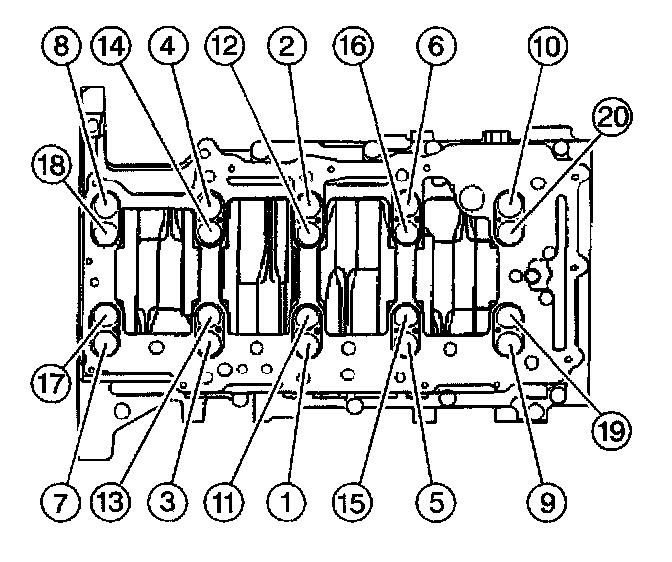

Lower crankcase bolts sequence




Upper-to-lower crankcase perimeter bolts

Note: Refer to Engine, Service and Repair, Engine Overhaul, Crankshaft and Bearings Installation for sequence and step details.
