Cellular Communication Component Views (F1)

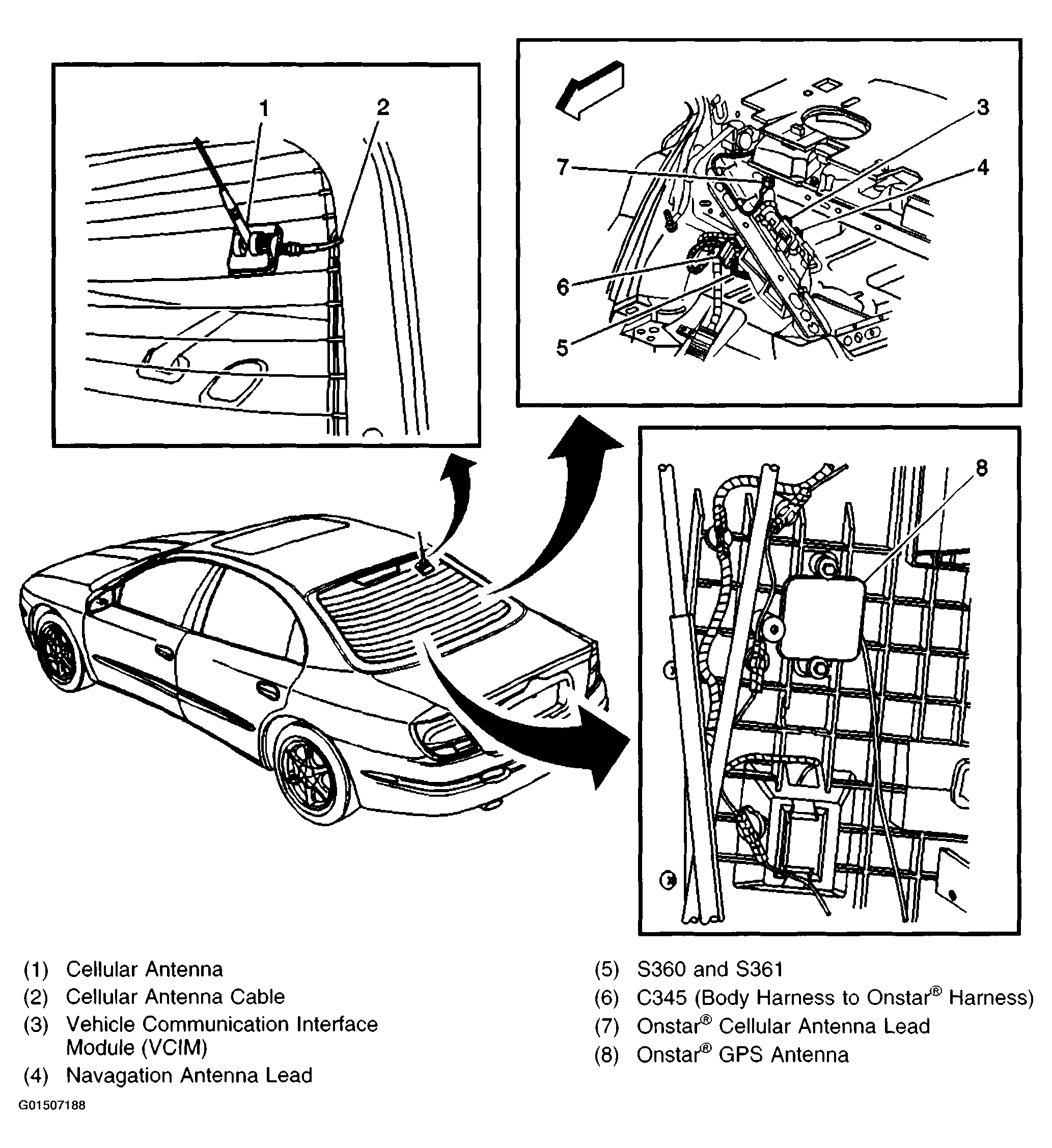

Fig 1: Identifying Component Location Of Cellular Communications Sub-System
G01507188Courtesy of GENERAL MOTORS CORP.
