Memory Seat Module Connector End View (C3) - Driver (w/A45)

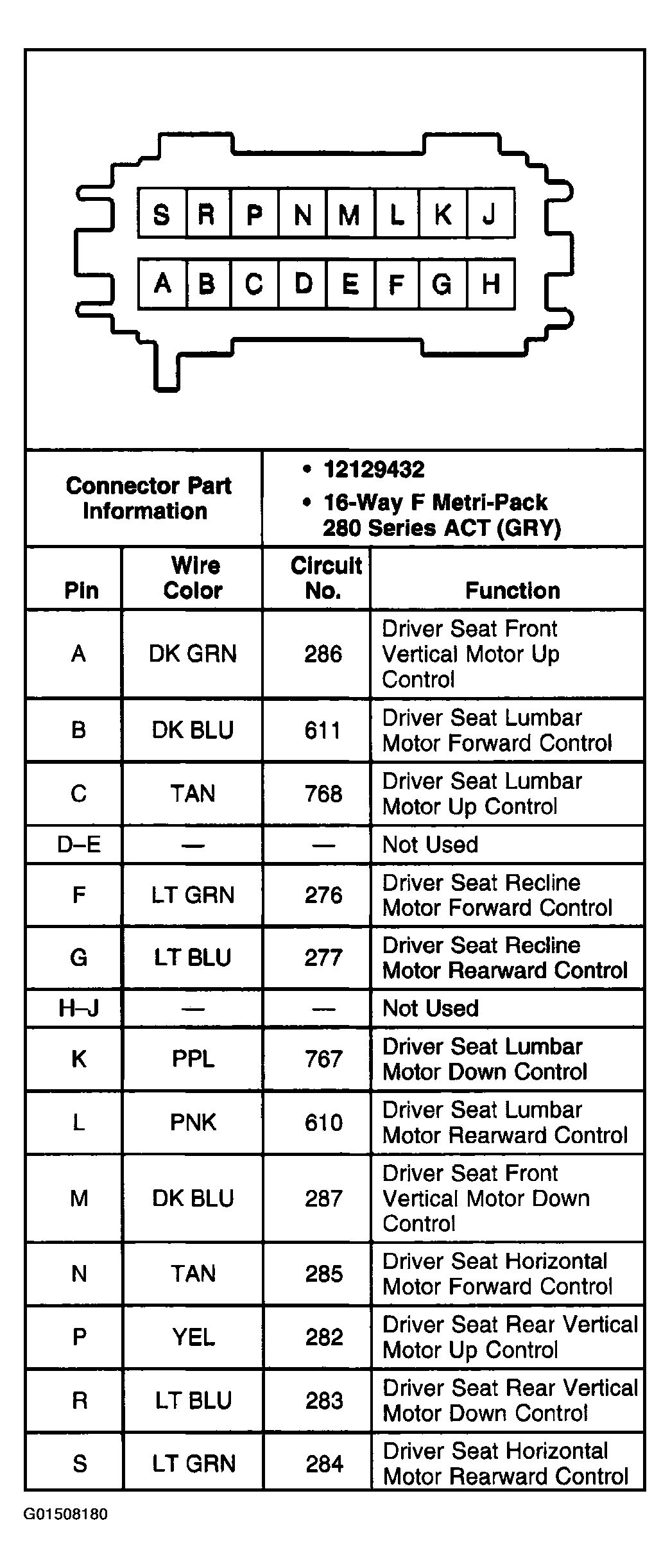

Fig 1: Memory Seat Module Connector End View (C3) - Driver (w/A45)
G01508180Courtesy of GENERAL MOTORS CORP.
