Vehicle Communication Integration Module Connector End View

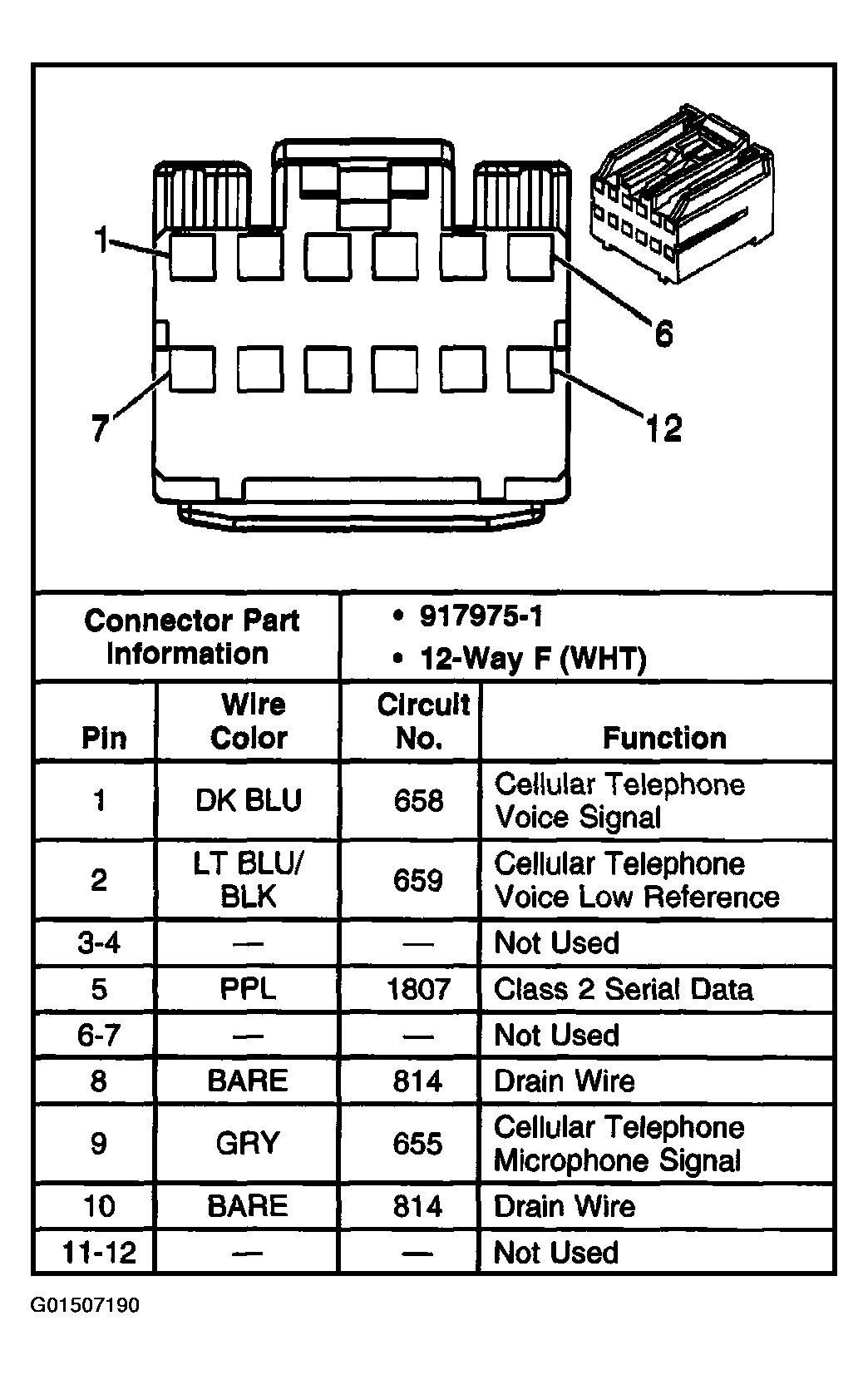

Fig 1: Vehicle Communication Integration Module Connector End View
G01507190Courtesy of GENERAL MOTORS CORP.
