Steering Controls Connector End Views

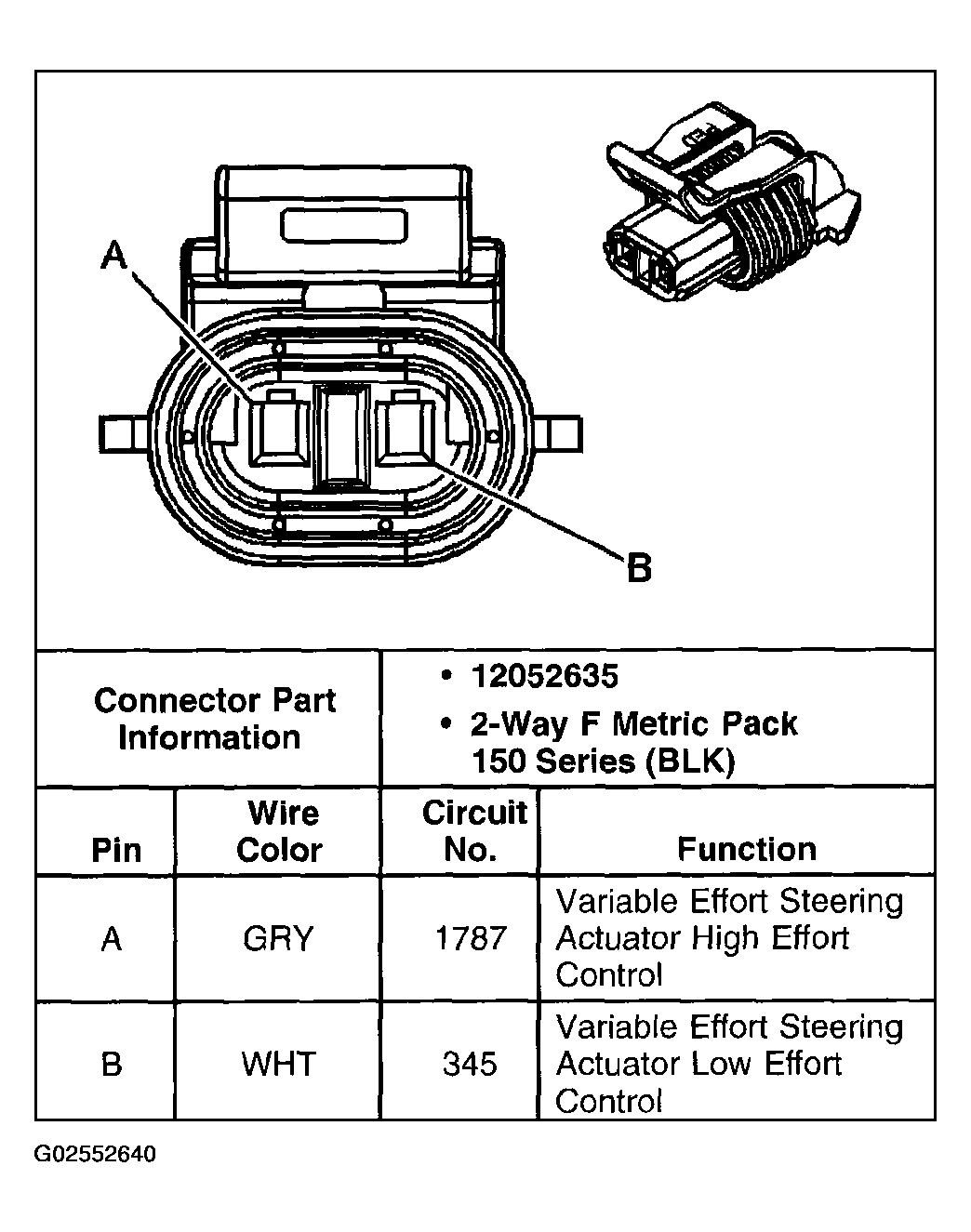

Fig 1: Variable Effort Steering Actuator
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
