Automatic Transmission Shift Lock Control Connector End Views

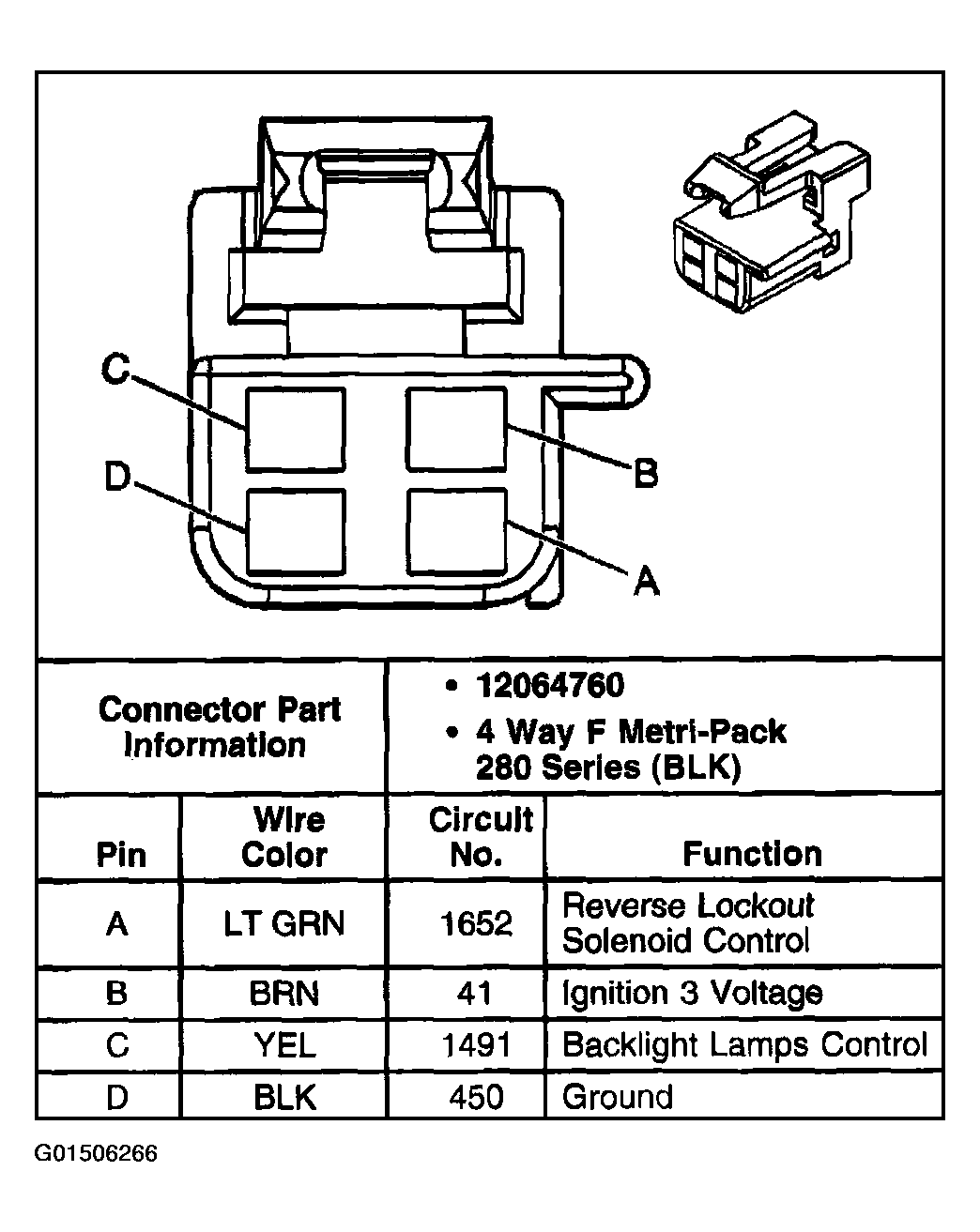

Fig 1: Identifying Shift Control Assembly Connector Terminals
G01506266Courtesy of GENERAL MOTORS CORP.

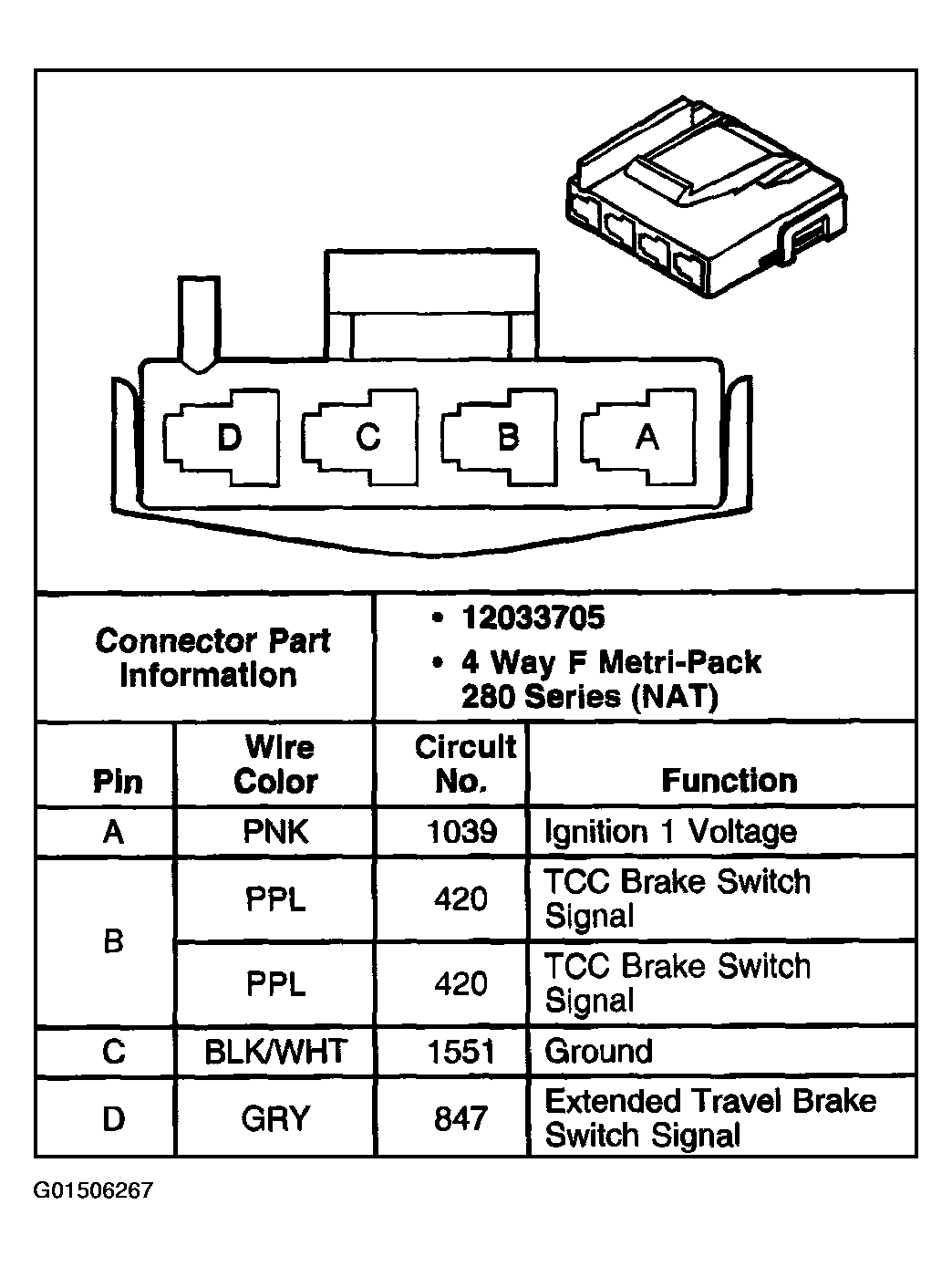

Fig 2: Identifying TCC/Cruise Release Switch Connector Terminals
G01506267Courtesy of GENERAL MOTORS CORP.
